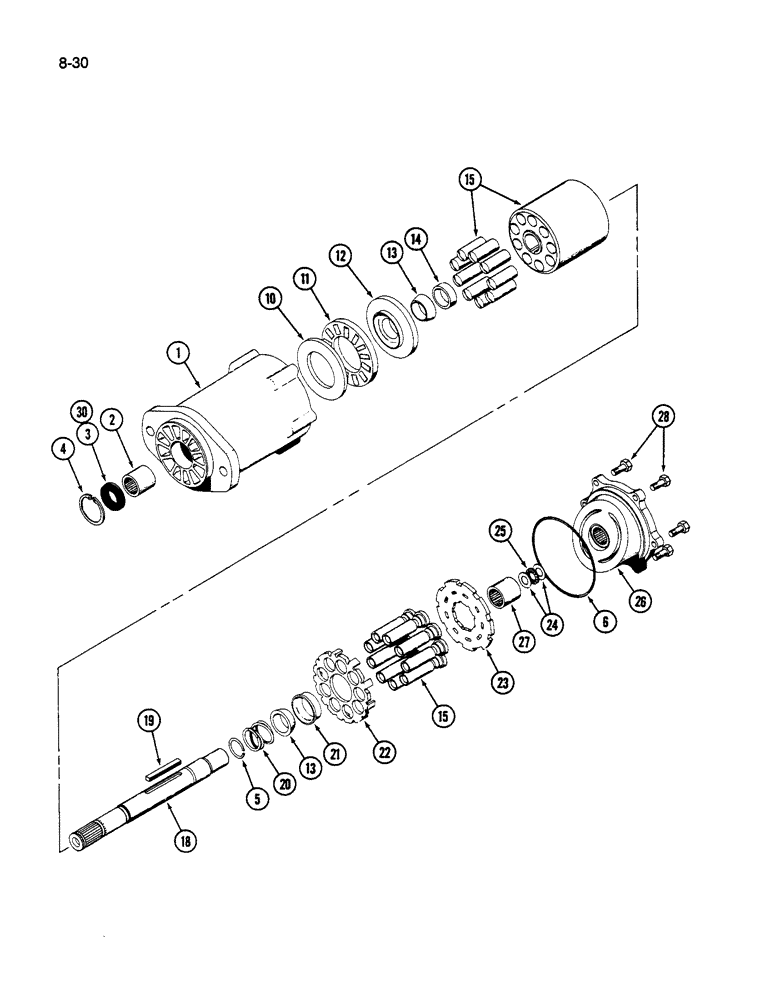

Запчасти Case IH 1590 (8-30) - HYDRAULIC MOTOR, 1490 AND 1590 MOWER CONDITIONER (07) - HYDRAULICS

142829C91

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic

1шт.

DR80245

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

1шт.

DC80245

CORE-MOTOR HYDRAULIC

Return Number Hydraulic Motor

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - motor

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

1шт.

1260905C2

SEAL

KIT - seal

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 ID x 3/32 inch

1шт.

10

ZA502805

PLATE

RACE - bearing

1шт.

11

ZA502806

BEARING

ASSEMBLY - thrust

1шт.

12

ZA502807

RACE

- piston

1шт.

13

NSS

NOT SOLD SEPARAT

PIVOT - motor

2шт.

14

NSS

NOT SOLD SEPARAT

SPACER - motor

1шт.

15

ZA502799

KIT

- block and piston

1шт.

18

ZA502812

SHAFT

- drive

1шт.

19

ZA502811

KEY

- 1/4 x 3/16 x 2 inch

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

21

NSS

NOT SOLD SEPARAT

PILOT - motor

1шт.

22

ZA502816

DIFF. SPIDER

PLATE - retaining, piston

1шт.

23

ZA502817

LARGE PLATE

PLATE - connector

1шт.

24

ZA502818

RACE

PLATE - thrust

2шт.

25

ZA502819

THRUST BEARING

BEARING ASSEMBLY - thrust

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - back

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

1шт.

28

NSS

NOT SOLD SEPARAT

BOLT - hex

6шт.

ZA502995

SEAL KIT

- repair, motor shaft seal

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

S113612

O-RING

- 1-3/8 ID x 1/16 inch

1шт.

113090C1

SEALANT

SEALANT - silicone, 3 ounce tube

1шт.
