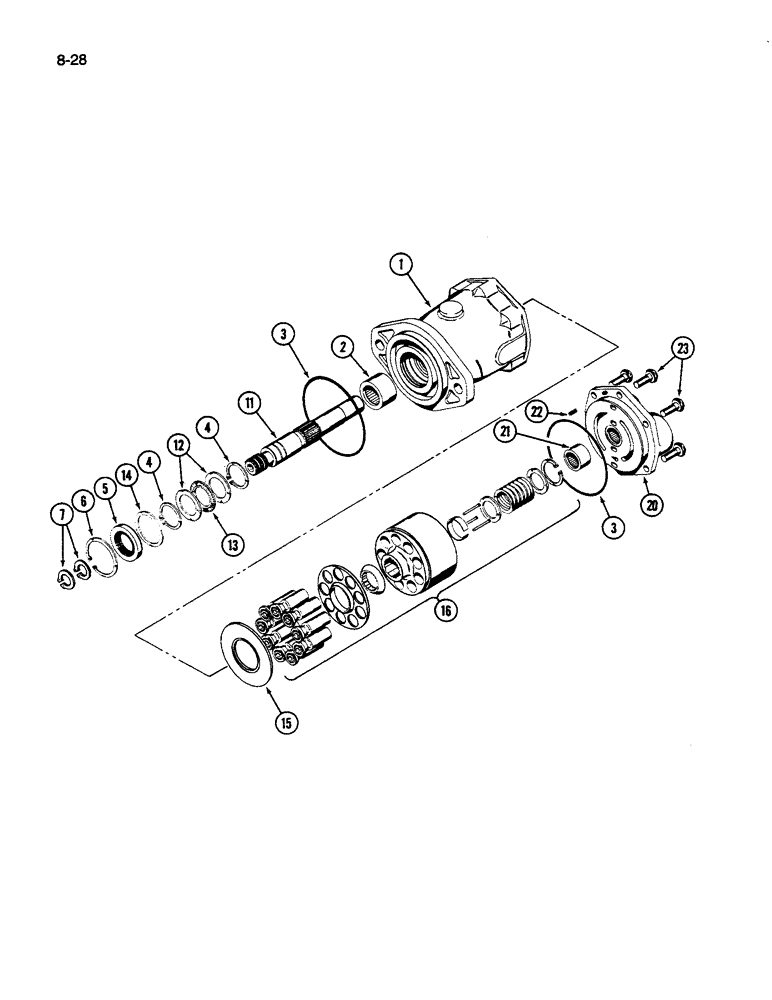

Запчасти Case IH 1590 (8-28) - HYDRAULIC PUMP, 1490 & 1590 MOWER CONDITIONER (07) - HYDRAULICS

1252062C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, fixed piston

1шт.

277624R

REMAN-HYD PUMP

1490, 1590, Reman For New P/N 1252062C91

1шт.

277624C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

1шт.

80676C1

SEAL KIT

KIT - seal

1шт.

3

343700R1

O-RING,-155, 70 Duro, 3.987" ID x .103" Thk

- 4 ID x 3/32 inch

2шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, external

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining, external

2шт.

11

ZA502785

SHAFT

- drive

1шт.

12

ZA502787

RACE

- thrust bearing

2шт.

13

619150C91

BEARING

ASSEMBLY - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

15

ZA502789

PLATE

- cam insert

1шт.

16

ZA502783

PISTON

KIT - rotating group

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - back

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex

6шт.
