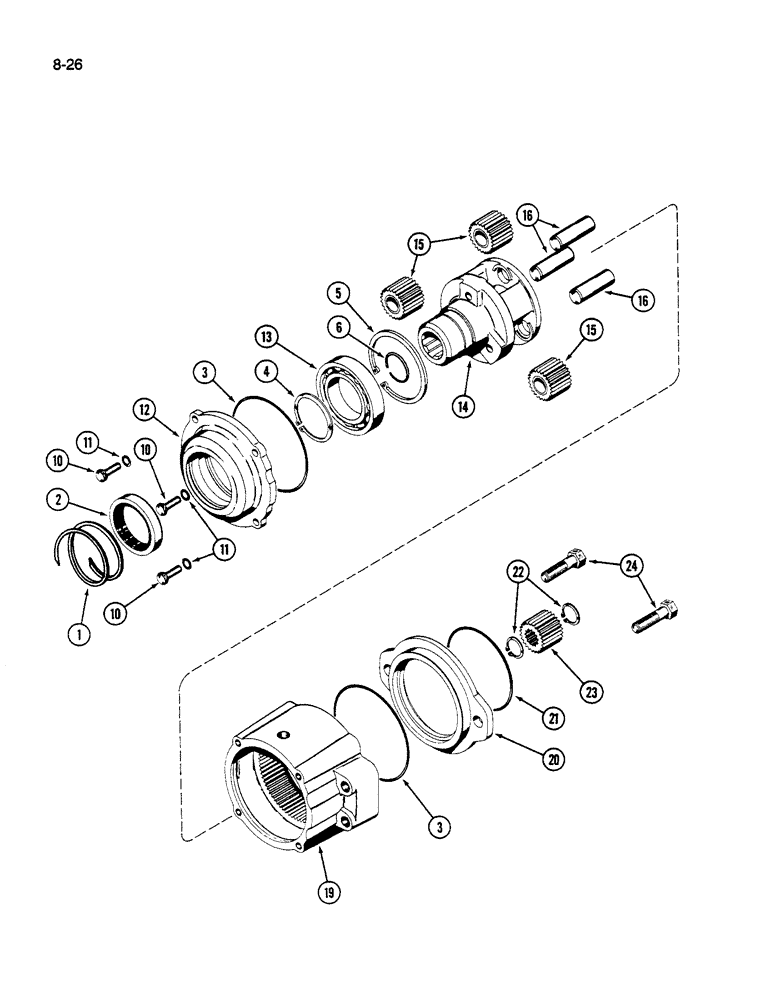

Запчасти Case IH 1590 (8-26) - GEARBOX, 1490 & 1590 MOWER CONDITIONER (07) - HYDRAULICS

1252063C91

GEARBOX ASSY

GEARBOX ASSEMBLY - mower conditioner

1шт.

THE 1000 RPM UNIT IS PART NUMBER: 700712139.

1шт.

700712138R

REMAN-GEARBOX

Reman For New PN 1252063C91

1шт.

700712138C

CORE-GEARBOX

Return Number

1шт.

1260903C1

SEAL KIT

KIT - seal

1шт.

1

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 4-3/4 ID x 3/32 inch

2шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, external

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

6

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

10

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

11

NSS

NOT SOLD SEPARAT

WASHER - lock, 5/16 inch

4шт.

12

T55322

LARGE PLATE

PLATE - front ( replaced NSS )

1шт.

13

205368R91

BALL BEARING,2.526" ID x 3.5432" OD x 0.7087"

BEARING ASSEMBLY - ball

1шт.

14

ZA502776

CARRIER

ASSEMBLY - gearbox

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - planet, with bushing

3шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - gear

3шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gearbox

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE - adapter

1шт.

21

343700R1

O-RING,-155, 70 Duro, 3.987" ID x .103" Thk

- 4 ID x 3/32 inch

1шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining, external

2шт.

Included in pump seal kit 80676C1. See Figure 8-28.

1шт.

23

T55332

GEAR

- sun (Replaces 1260904C1)

1шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.
