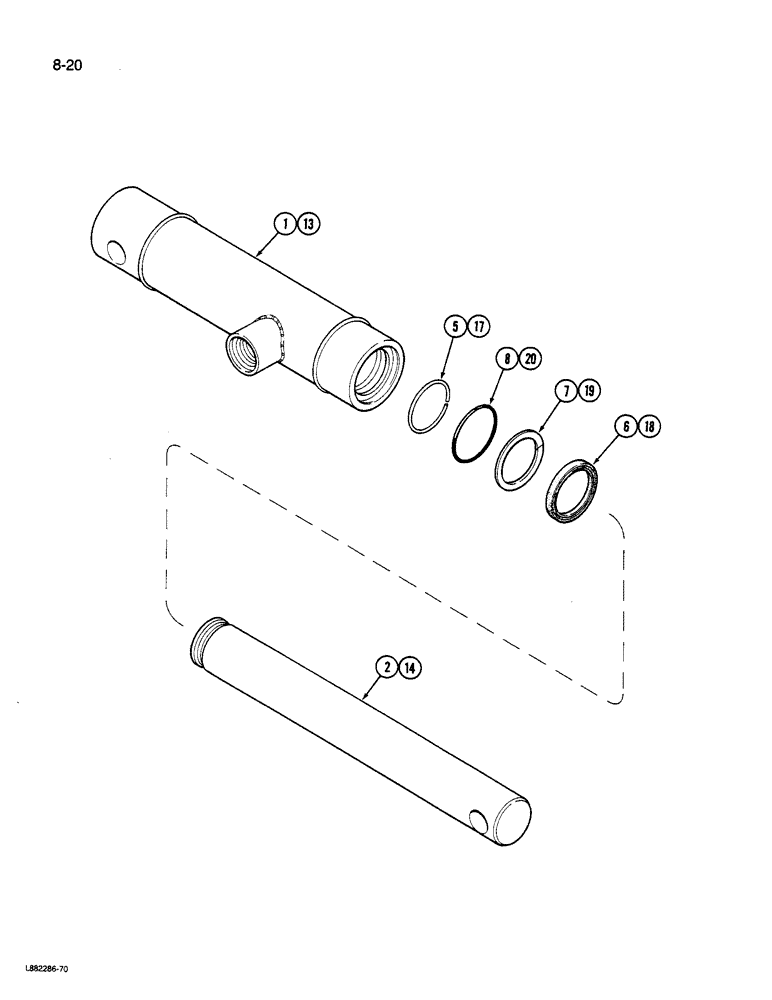

Запчасти Case IH 1590 (8-20) - CONDITIONING ROLL HYDRAULIC CYLINDER, 1490 & 1590 MOWER CONDITIONER (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
ZA502896
CYLINDER
ASSEMBLY - conditioning roll, 1 inch rod x 4 inch stroke (Identify by part number 1332009 on body)(Replaces 224715C91)
2шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder (Order ZA502896)
1шт.
2
ZA502898
PISTON ROD
ROD - cylinder
1шт.
1282437C1
SEAL KIT
KIT - seal
1шт.
5
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
6
NSS
NOT SOLD SEPARAT
WIPER - cylinder rod
1шт.
7
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
8
380794R1
O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro
- 1 ID x 1/8 inch
1шт.
224715C91
CYLINDER
ASSEMBLY - conditioning roll, 1 inch rod x 4 inch stroke (Identify by part number 027759 on body)(Order ZA502896)
2шт.
13
NSS
NOT SOLD SEPARAT
BODY - cylinder (Order ZA502896)
1шт.
14
224717C1
ROD
- cylinder
1шт.
1282437C1
SEAL KIT
KIT - seal
1шт.
17
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
18
NSS
NOT SOLD SEPARAT
WIPER - cylinder rod
1шт.
19
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
20
380794R1
O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro
- 1 ID x 1/8 inch
1шт.
Выбрано товаров: 16
