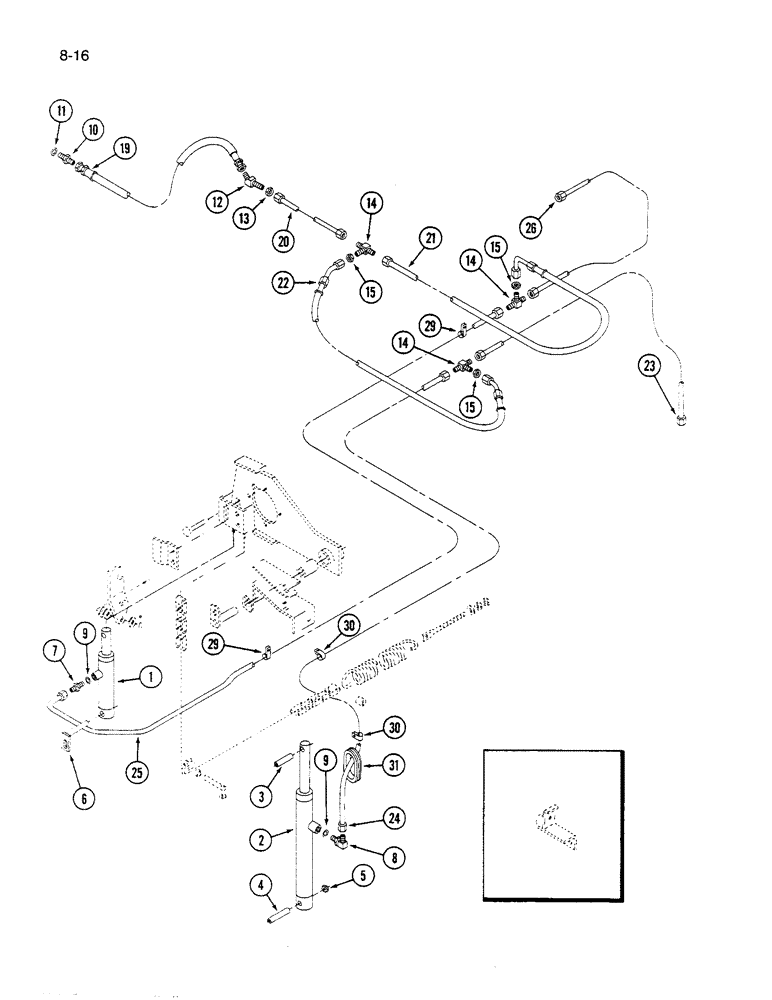

Запчасти Case IH 1590 (8-16) - HEADER LIFT AND CONDITIONING ROLL CYLINDER HYDRAULICS, 1490 AND 1590 MOWER CONDITIONER (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - conditioning roll (See Page 8-21)

2шт.

21573R1

HEADED PIN,1/2" x 2"

PIN - clevis, 1/2 x 2 inch

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Page 8-19)

2шт.

3

119466C1

SPACER

- rod end, cylinder

2шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

4

119467C1

SPACER

- body end, cylinder

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

5

9413960

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

6

ZA502517

PIN

- mounting, cylinder

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

2шт.

7

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 9/16-18 flared x 9/16-18 inch O-ring boss

2шт.

8

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 flared x 9/16-18 inch O-ring boss

2шт.

10

ZA502998

FITTING

RESTRICTOR ASSEMBLY - 3/4-16 flared x 3/4-16 inch O-ring boss

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

208702C1

ELBOW

ASSEMBLY - bulkhead, 45 degree, 9/16-18 inch flared

1шт.

13

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

14

1310575C1

TEE

ASSEMBLY - bulkhead, 9/16-18 inch flared

3шт.

15

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

19

ZA502552

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 67 inch

1шт.

20

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE ASSEMBLY - 3/8 ID x 185 inch (Replaces ZA502550)

1шт.

21

ZA502558

HOSE

ASSEMBLY - 87 inch

1шт.

22

ZA502667

HOSE

ASSEMBLY - 3/8 ID x 46 inch

1шт.

23

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE ASSEMBLY - 3/8 ID x 95 inch (Replaces ZA502553)

1шт.

24

813006C2

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 85 inch (Replaces ZA502653)

1шт.

25

ZA502556

TUBE,0.375" OD

ASSEMBLY - conditioning roll cylinder, left

1шт.

26

ZA502554

TUBE,0.375" OD

ASSEMBLY - conditioning roll cylinder, right

1шт.

29

299404C1

CLAMP

- tube

3шт.

30

299615C1

CLAMP

- tube

8шт.

31

126665C2

GROMMET

- protective

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
