Запчасти Case IH 1590 (8-12) - TONGUE POSITIONING HYDRAULIC CYLINDER, 1490 AND 1590 MOWER CONDITIONER (07) - HYDRAULICS

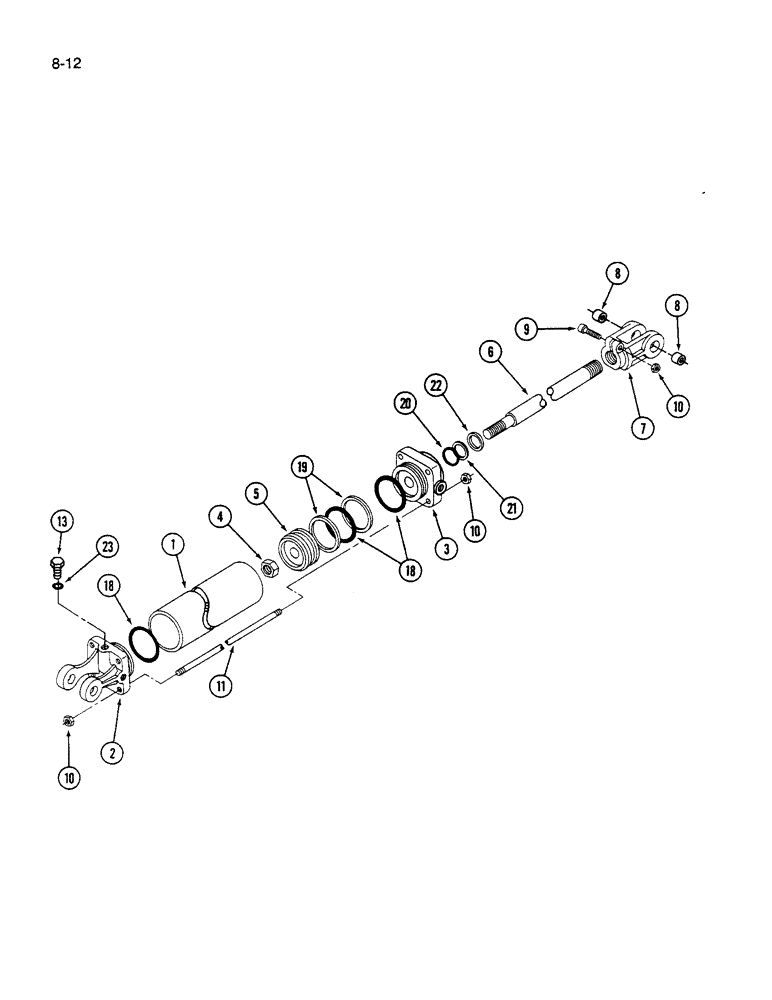

Схема запчастей Case IH 1590 - (8-12) - TONGUE POSITIONING HYDRAULIC CYLINDER, 1490 AND 1590 MOWER CONDITIONER (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

ZA502717

STEERING CYLINDER

CYLINDER ASSEMBLY - tongue positioning, 3 bore x 16 inch stroke (Cross)(Alternative cylinder on previous page)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

2

ZA502748

BASE

HEAD - rear, cylinder

1шт.

3

1336825C1

HEAD

- front, cylinder

1шт.

4

75762C1

NUT

- hex lock

1шт.

5

ZA502747

PISTON

- cylinder

1шт.

6

ZA502745

ROD

- piston

1шт.

7

1255496C1

YOKE

CLEVIS ASSEMBLY - cylinder

1шт.

8

ZA502860

BUSHING

- clevis

2шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

120377

NUT,3/8" - 16, Gr 5

9шт.

11

ZA104997

ROD

- tie, cylinder

4шт.

13

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

812173C1

SEAL KIT

KIT - seal

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - cylinder head and piston

3шт.

19

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

22

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1260716C1

PIN

- clevis

2шт.

79005C1

PIN

- cotter, hair type, 5/32 inch diameter

2шт.

Выбрано товаров: 22
