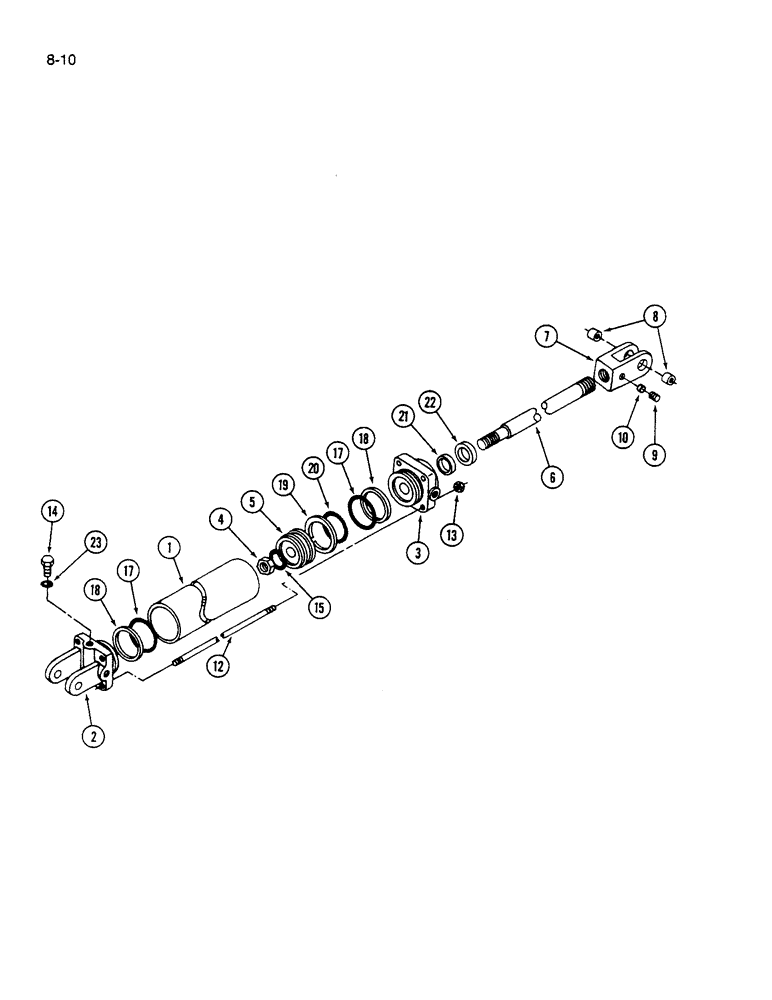

Запчасти Case IH 1590 (8-10) - TONGUE POSITIONING HYDRAULIC CYLINDER, 1490 AND 1590 MOWER CONDITIONING (07) - HYDRAULICS

ZA502907

STEERING CYLINDER

CYLINDER ASSEMBLY - tongue positioning, 3 bore x 16 inch stroke (Iowa Industrial)(Alternative cylinder on next page)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

2

ZA502908

HEAD

- rear, cylinder

1шт.

3

ZA502918

HEAD

- front, cylinder

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

5

145225C2

PISTON

- cylinder

1шт.

6

ZA502913

ROD

- piston

1шт.

7

ZA502912

CLEVIS

ASSEMBLY - cylinder

1шт.

8

ZA502926

BUSHING

- clevis

2шт.

9

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - hex socket set, 3/8 NC x 3/8 inch

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

12

ZA502919

TIE-ROD

ROD - tie, cylinder

4шт.

13

129-104

NUT,7/16"-14, G5

4шт.

14

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

15

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk (If Equipped)

1шт.

ZA502923

SEAL KIT

- seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

22

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

1266754C1

CLEVIS

PIN - clevis, 1-1/4 x 3-9/16 inch

2шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

4шт.
