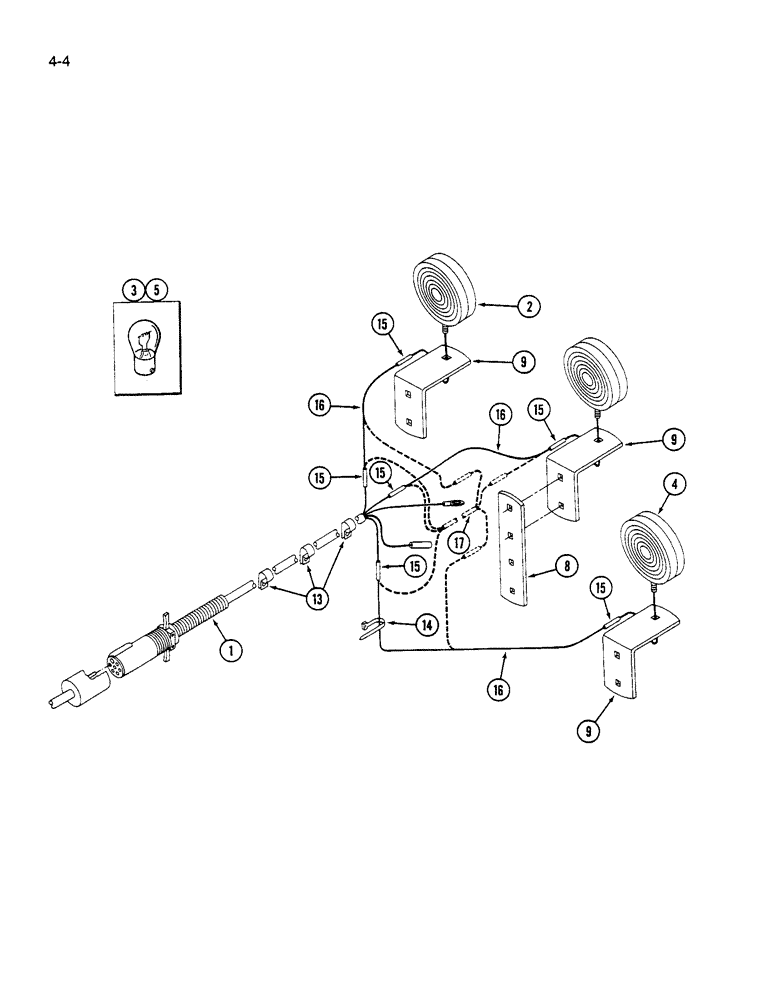

Запчасти Case IH 1590 (4-4) - SAFETY LIGHTING, 1490 AND 1590 MOWER CONDITIONER (06) - ELECTRICAL SYSTEMS

1

ZA104936

HARNESS

- lighting

1шт.

2

ZA103735

LIGHT

LAMP ASSEMBLY - warning/turn signal, amber

2шт.

3

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156

1шт.

4

ZA103734

LIGHT

LAMP ASSEMBLY - tail, red

1шт.

5

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156

1шт.

8

ZA502754

BAR

- extension

2шт.

9

ZA708451

BRACKET

- lamp

3шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

S77322

CLAMP

- harness

3шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

12шт.

15

ZA707964

TERMINAL CONNECTOR,14 - 16

TERMINAL - butt splice

8шт.

16

NSS

NOT SOLD SEPARAT

WIRE - 14 gauge (Cut from bulk roll B17724)

1шт.

B17724

CABLE

WIRE - 14 gauge, 100 foot roll

1шт.

17

NSS

NOT SOLD SEPARAT

CABLE - 3 conductor, 14 gauge (Cut from bulk roll B17728)

1шт.

B17728

CABLE

- 3 conductor, 14 gauge, 100 foot roll

1шт.
