Запчасти Case IH 1590 (9-098) - DECALS (03) - CHASSIS/MOUNTED EQUIPMENT

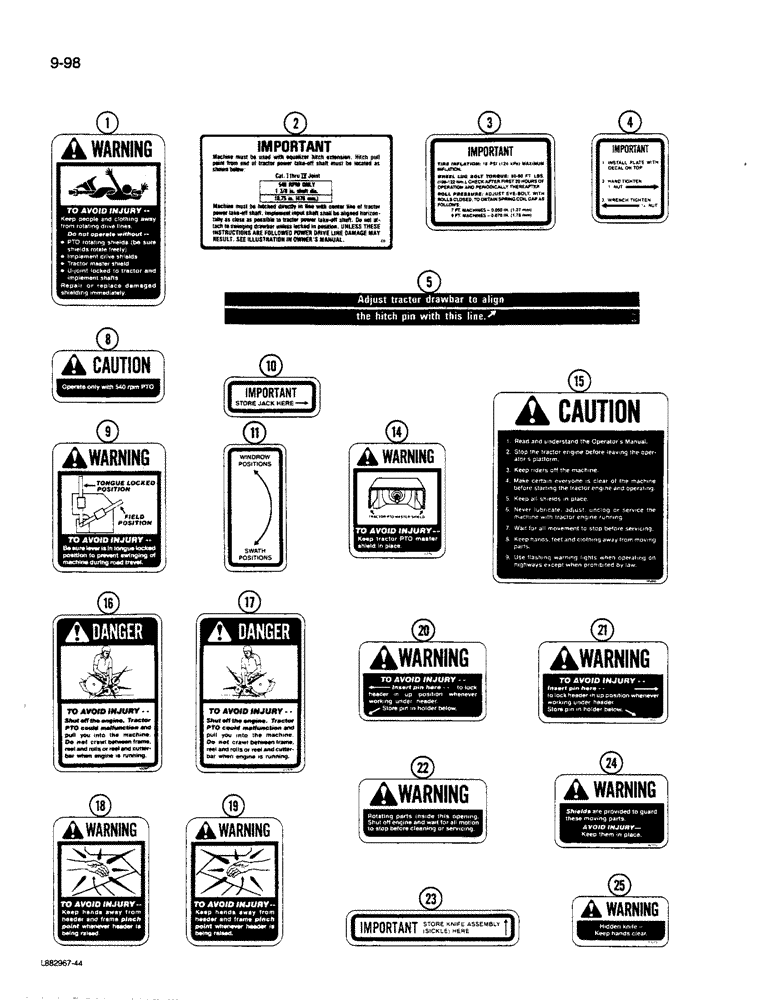

Схема запчастей Case IH 1590 - (9-098) - DECALS (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

119413C95

PACKAGE

KIT - decal (1190) (Includes Ref. 14 through 25)

1шт.

1

96332C1

PRODUCT GRAPHIC

DECAL - warning, rotating drive lines

1шт.

2

136020C2

DECAL

- important, hitching instructions

1шт.

3

1253451C1

DECAL - important, tire instructions

2шт.

4

148073C2

DECAL

- important, nut tightening instructions

1шт.

5

1253795C1

DECAL

- adjust drawbar to align hitch pin

1шт.

81595C91

PRODUCT GRAPHIC

KIT - decal (1490 and 1590)

1шт.

8

96319C1

DECAL

- caution, 540 rpm PTO (1490 and 1590)

1шт.

9

ZA502602

PRODUCT GRAPHIC

DECAL - warning, tongue locking lever position (1490 and 1590)

1шт.

10

ZA502601

DECAL

- important, store jack here (1490 and 1590)

1шт.

11

ZA502600

DECAL

- windrow and swath positions (1490 and 1590)

1шт.

14

96335C1

PRODUCT GRAPHIC

DECAL - warning, tractor PTO master shield

1шт.

15

ZA210142

DECAL

- caution, rules for safe operation

1шт.

16

ZA502617

DECAL

- danger, to avoid injury shut off engine (Left side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

17

ZA502616

DECAL - danger, to avoid injury shut off engine (Right side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

18

ZA502606

DECAL - warning, header and frame pinch point (Left side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

19

ZA502605

DECAL - warning, header and frame pinch point (Right side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

20

ZA502603

DECAL - warning, insert pin to lock header (Left side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

21

ZA502604

DECAL - warning, insert pin to lock header (Right side)

1шт.

Part of decal kit P/N 1281398C91

1шт.

22

56156C2

WARNING DECAL

DECAL - warning, rotating parts inside this opening

1шт.

23

ZA502615

DECAL - important, store spare knife here

1шт.

24

ZA740950

DECAL

- warning, keep shields in place

4шт.

25

135064C2

PRODUCT GRAPHIC

DECAL - warning, hidden knife - keep hands clear

1шт.

1281398C91

KIT

- decal, Includes Refs. 16, 17, 18, 19, 20 and 21

1шт.

Выбрано товаров: 30
