Запчасти Case IH 1590 (9-096) - SAFETY CHAIN (03) - CHASSIS/MOUNTED EQUIPMENT

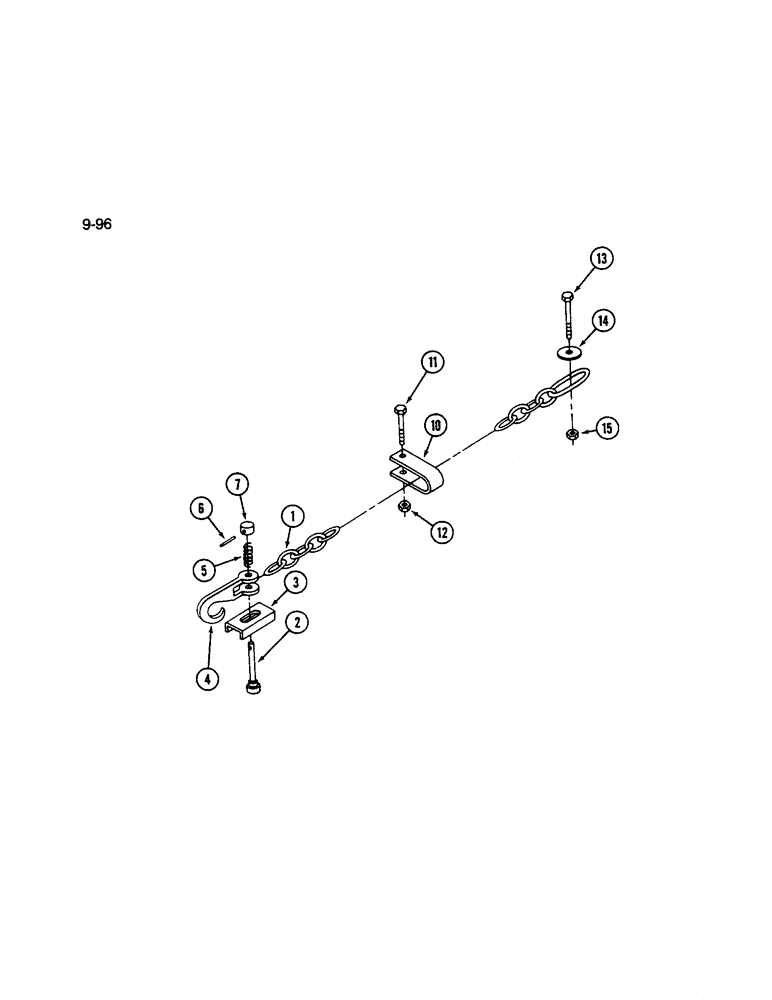

Схема запчастей Case IH 1590 - (9-096) - SAFETY CHAIN (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

1

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - clevis (Order chain assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

LATCH - hook

1шт.

4

NSS

NOT SOLD SEPARAT

HOOK - safety chain

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

10

148558C1

CLEVIS

- safety chain

1шт.

11

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

12

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

13

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

14

26512R1

WASHER

- flat, 25/32 x 2 x 5/32 inch

1шт.

15

22244R1

LOCK NUT

- hex lock, 3/4 inch NC

1шт.

Выбрано товаров: 14
