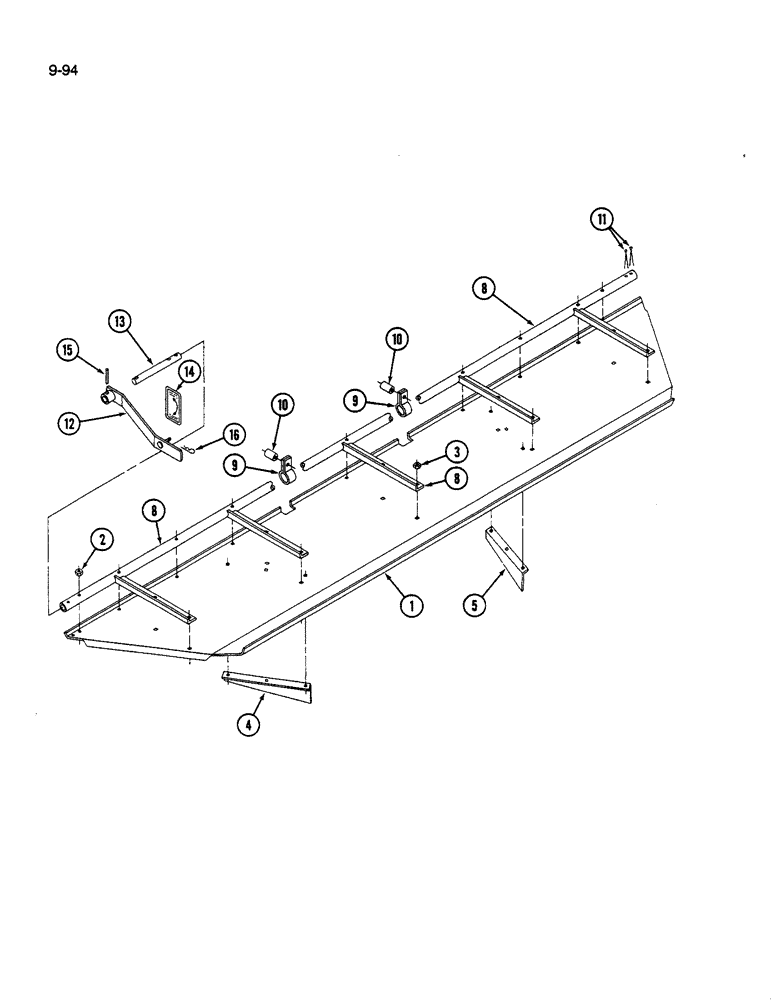

Запчасти Case IH 1590 (9-094) - SWATH BAFFLE, 1490 AND1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

146235C2

BAFFLE

- swath

1шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

10шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC X 1/2 inch

10шт.

2

483303R1

LOCK NUT

- hex flange lock, 5/16 inch NC

10шт.

3

9413953

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

10шт.

4

134994C1

SUPPORT

- guide vane, left

1шт.

5

134995C1

SUPPORT

- guide vane, right

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

8

148079C1

TUBE ASSY.

TUBE - baffle pivot

1шт.

9

1253436C1

CLAMP

- support

2шт.

10

85490H

SPACER

- 5/8 OD X 3/4 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

11

137268

KNIFE

- cotter, 3/16 x 2-1/4 inch

2шт.

12

146227C1

HANDLE

- baffle pivot

1шт.

13

146229C1

SHAFT

- baffle pivot

1шт.

14

REF

INSTRUCTION

DECAL - windrow and swath positions (See Figure 9-98)

1шт.

15

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

16

148155C1

PIN

- cotter, hair type

1шт.
