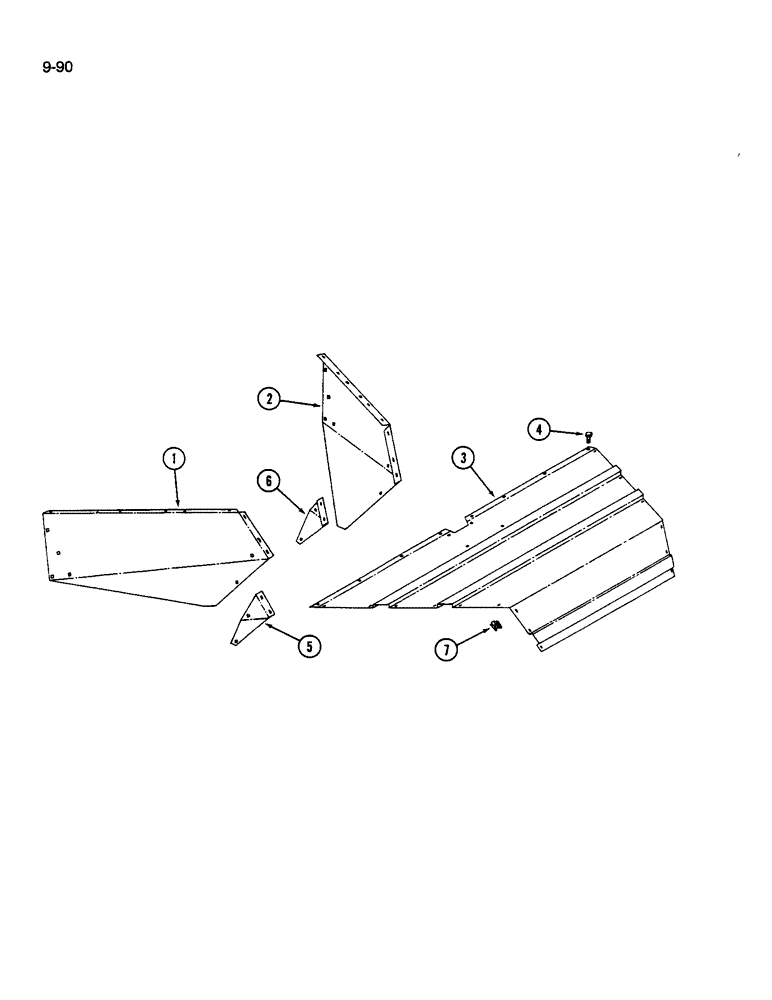

Запчасти Case IH 1590 (9-090) - WINDROW SHEETS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

112160C2

PANEL

- hood, left side

1шт.

2

112161C2

PANEL

- hood, right side

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

8шт.

3

143834C1

DEFLECTOR

- hood, top

1шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

22шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

22шт.

5

1253614C1

SUPPORT

- hood corner, left

1шт.

6

1253615C1

SUPPORT

- hood corner, right

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

7

398976R1

BRACKET

SOCKET - SMV emblem

1шт.
