Запчасти Case IH 1590 (9-086) - SHIELDS AND DIVIDERS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

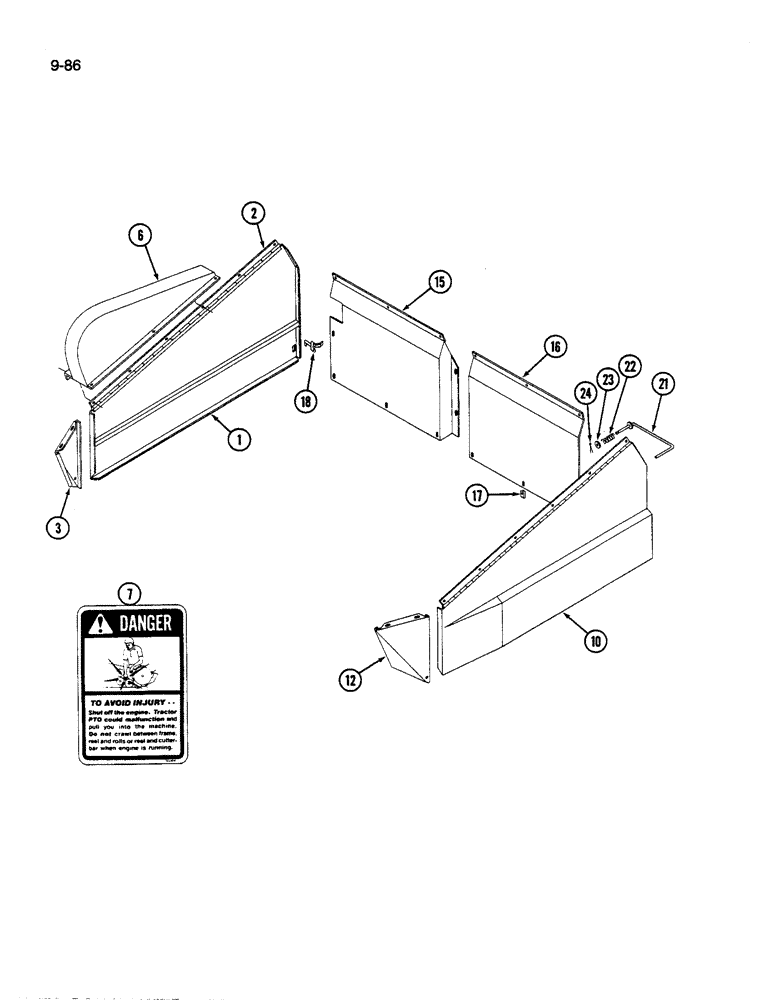

Схема запчастей Case IH 1590 - (9-086) - SHIELDS AND DIVIDERS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

1

ZA502673

SHIELD

ASSEMBLY - right side

1шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

104804C1

RIVET,Pop, 3/16" x .575"

- blind, 4.8 x 14.6 mm, aluminum

1шт.

514014C1

SPARE PART,Pop, 1/8" x 1/4"

RIVET - blind, 3.2 x 7 mm, aluminum

1шт.

2

1253394C1

HINGE

- shield

1шт.

1253442C1

RIVET

- 4.8 x 10.5 mm

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

3

ZA502595

DIVIDER ASSY.

DIVIDER - right side

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

141217C1

NUT

- retainer, 3/8 inch NC

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

6

ZA502729

SHIELD

ASSEMBLY - pulley, with decal

1шт.

7

REF

INSTRUCTION

DECAL - danger, to avoid injury shut off engine (Right side) (See Figure 9-98)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

10

ZA502672

SHIELD

ASSEMBLY - left side

1шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

104804C1

RIVET,Pop, 3/16" x .575"

- blind, 4.8 x 14.6 mm, aluminum

1шт.

514014C1

SPARE PART,Pop, 1/8" x 1/4"

RIVET - blind, 3.2 x 7 mm, aluminum

1шт.

11

1253394C1

HINGE

- shield

1шт.

1253442C1

RIVET

- blind, 4.8 x 10.5 mm, aluminum

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

12

ZA502594

DIVIDER ASSY.

DIVIDER - left side

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

141217C1

NUT

- retainer, 3/8 inch NC

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

15

ZA502582

SHIELD

- right rear (1490 mower conditioner)

1шт.

15

ZA502580

SHIELD

- right rear (1590 mower conditioner)

1шт.

16

ZA502583

SHIELD

- left rear (1490 mower conditioner)

1шт.

16

ZA502581

SHIELD

- left rear (1590 mower conditioner)

1шт.

18

168481C1

LATCH ASSY.

LATCH - shield

4шт.

55077C1

RIVET

- blind, 4.8 x 11.5 mm, steel

8шт.

21

ZA746472

ROD

- tie

2шт.

22

81594C1

SPRING

- compression

2шт.

23

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

24

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.
