Запчасти Case IH 1590 (9-082) - HEADER FRAME, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

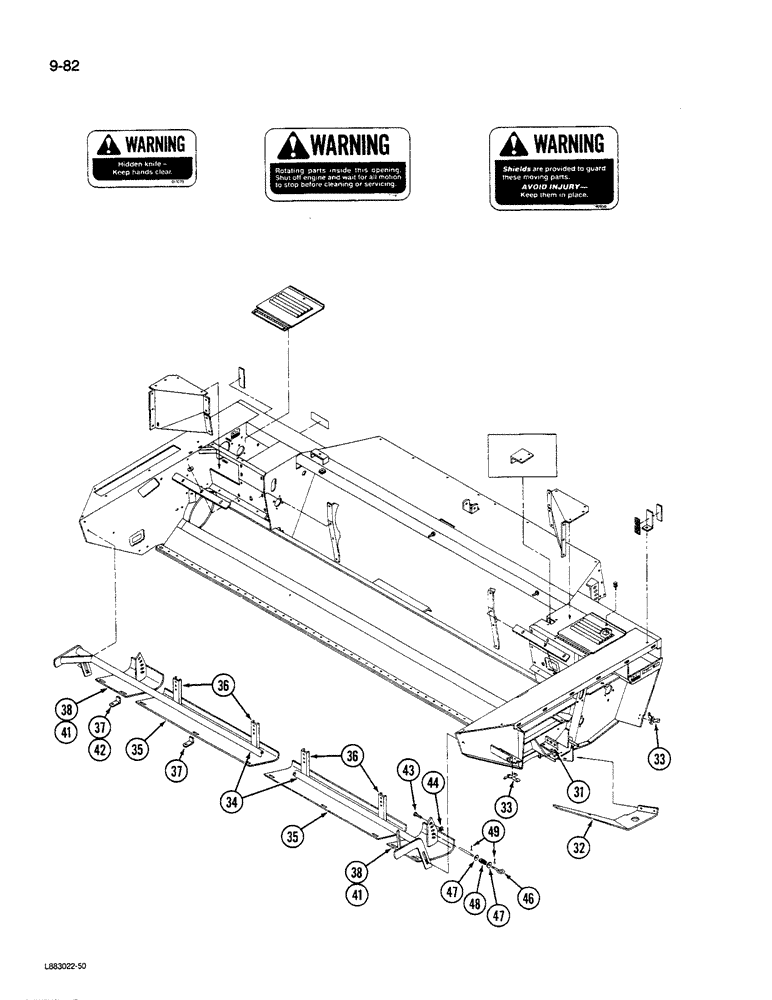

Схема запчастей Case IH 1590 - (9-082) - HEADER FRAME, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

31

ZA502689

BRACKET

- anchor, knife drive

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

32

146123C1

SHOE

- knife drive

1шт.

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

33

168481C1

LATCH ASSY.

LATCH - shield

2шт.

34

143812C1

TUBE ASSY.,3734 mm Length

BAR - pushover (1490 mower conditioner)

1шт.

34

143813C1

TUBE ASSY.

BAR - pushover (1590 mower conditioner)

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

35

102010C2

SHOE

- stone

2шт.

36

102007C1

CHANNEL

- mounting, stone shoe

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

37

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide

10шт.

38

143820C1

SHOE (ASSY)

SHOE - gauge

2шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

4шт.

129-104

NUT,7/16"-14, G5

4шт.

80642C91

SHOE ATTACHMENT - gauge (1590 mower conditioner) (Machinery item, order 0222533)

1шт.

41

143820C1

SHOE (ASSY)

SHOE - gauge

2шт.

42

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide

4шт.

43

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

44

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 2", G2

1шт.

111-411

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 3/4", G5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

3шт.

9413954

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

4шт.

46

ZA502500

PIN

ROD - shoe control

2шт.

47

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

48

96312C1

SPRING

- compression

2шт.

49

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

Выбрано товаров: 34
