Запчасти Case IH 1590 (9-072) - WHEEL AND HUB, 1190 MOWER CONDITIONER / WHEEL AND HUB 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

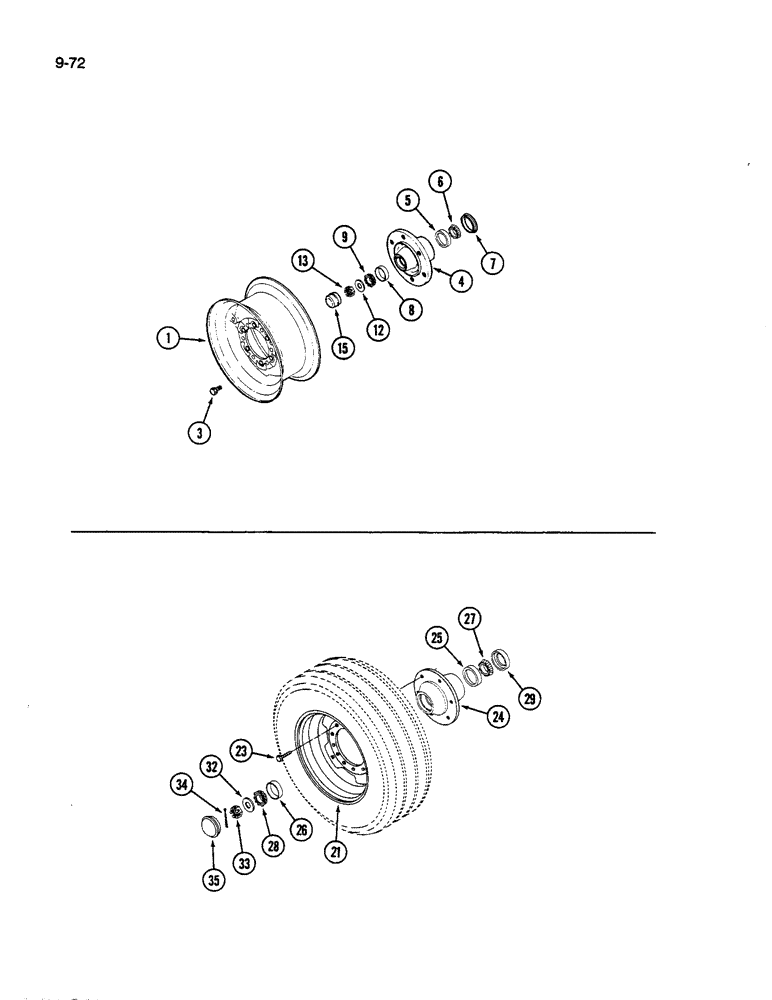

Схема запчастей Case IH 1590 - (9-072) - WHEEL AND HUB, 1190 MOWER CONDITIONER / WHEEL AND HUB 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

1

1253448C1

WHEEL

- 12 inch, for 26 x 12.00-12 tire (For 7 foot 1190, P.I.N. 1356 and after)(For 9 foot 1190, P.I.N. 4760 and after)

2шт.

1

126576C1

WHEEL (STEERING)

WHEEL - 15 inch, for 27 x 9.50-15 tire (For 7 foot 1190, prior to P.I.N. 1356)(For 9 foot 1190, prior to P.I.N. 4760)

2шт.

387841R91

VALVE

- wheel (For 7 foot 1190, P.I.N. 1356 and after) (For 9 foot 1190, P.I.N. 4760 and after)

2шт.

387897R91

VALVE STEM

VALVE - wheel (For 7 foot 1190, prior to P.I.N. 1356) (For 9 foot 1190, prior to P.I.N. 4760)

2шт.

3

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch, 1190

6шт.

4

126544C1

HUB CAP

HUB - wheel, 1190

2шт.

5

651817R1

BEARING CUP

CUP - bearing, inner, 1190

2шт.

5

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner, 1190

2шт.

7

126621C1

SEAL

SEAL - bearing, 1190

2шт.

8

651814R1

BEARING CUP

CUP - bearing, outer, 1190

2шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer, 1190

2шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened, 1190

2шт.

13

69442D

NUT

- slotted hex, 3/4 inch NF, 1190

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), , 1190 1/8" x 1 1/2"

2шт.

15

651194R1

CAP

- wheel hub, 1190

2шт.

21

A57879

RIM

WHEEL - 15 inch (For 11L x 15 tire) (Replaces 486101R2), 1490 & 1590

2шт.

536705R91

VALVE

- wheel, 1490 & 1590

2шт.

23

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch, 1490 & 1590

12шт.

24

ZA625501

HUB

ASSEMBLY - wheel, 1490 & 1590

2шт.

25

478793R1

BEARING CUP

CUP - bearing, inner, 1490 & 1590

1шт.

26

651817R1

BEARING CUP

CUP - bearing, outer, 1490 & 1590

1шт.

27

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

CONE - bearing, inner, 1490 & 1590

2шт.

28

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer, 1490 & 1590

2шт.

29

1254019C1

OIL SEAL

SEAL - bearing, 1490 & 1590

2шт.

32

25539R1

WASHER

WASHER - flat, hardened, 1490 & 1590

2шт.

33

427646

SLOTTED NUT,7/8"-14, G5

NUT - slotted hex, 7/8 inch NF, 1490 & 1590

2шт.

34

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), , 1490 & 1590 5/32" x 1 1/4"

2шт.

35

T23707

CAP

- wheel hub, 1490 & 1590

2шт.

Выбрано товаров: 30
