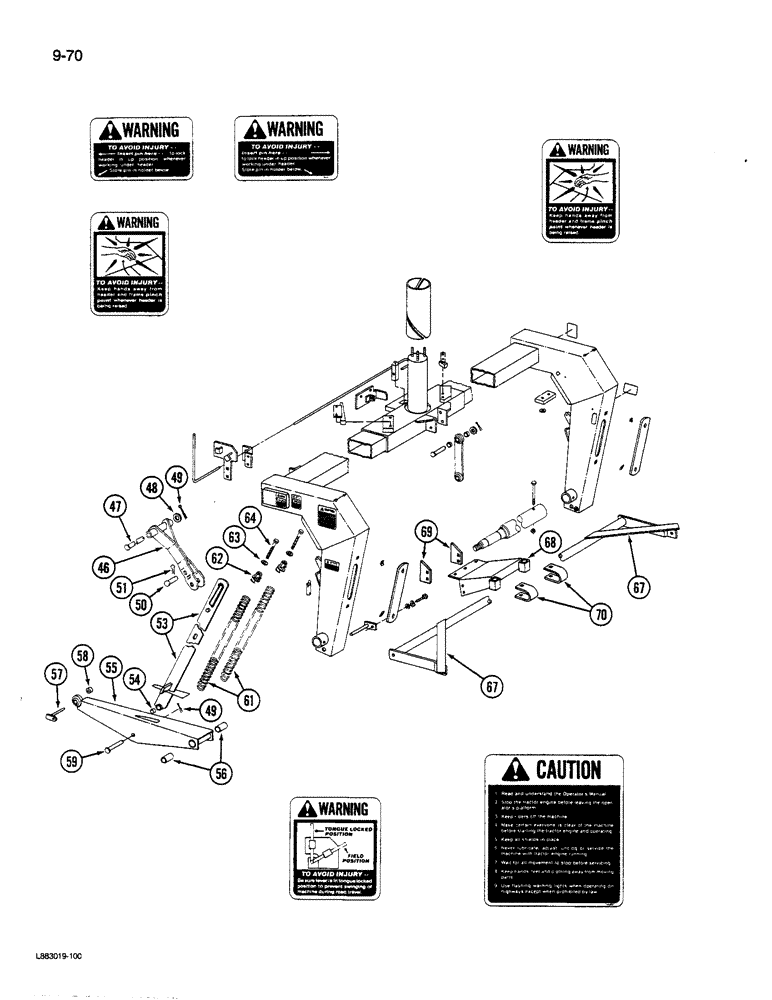

Запчасти Case IH 1590 (9-070) - CARRIER FRAME, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

46

ZA502864

ARM

- pivot, cylinder (Replaces 126787C1)

2шт.

47

101888C1

PIN

- round head square neck, 3/4 x 8-5/8 inch

2шт.

48

21757R1

WASHER

- flat, 25/32 x 1-1/4 x 1/32 inch

1шт.

49

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

4шт.

50

540851R1

HEADED PIN,1/2" x 1 7/8", G5

PIN - headed, 3/4 x 1-7/8 inch

2шт.

51

148155C1

PIN

- cotter, hair type

2шт.

53

ZA502858

ARM

- lift

2шт.

54

289588R1

BUSHING

- bronze

2шт.

55

ZA502737

ARM

ASSEMBLY - header, lower left

1шт.

55

ZA502738

ARM

ASSEMBLY - header, lower right

1шт.

56

135224C1

BUSHING

- lower arm

2шт.

57

146363C1

PIN ASSY.

PIN ASSEMBLY - lower link

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

58

ZA502612

SPACER

- 25/32 x 1-1/8 x 9/16 inch long

2шт.

59

135196C1

PIN

- headed, 3/4 x 4-1/8 inch

2шт.

61

143790C1

SPRING

- float

4шт.

62

1253481C2

PLUG

- spring

4шт.

63

21905R1

WASHER

- flat, 21/32 x 1-3/4 x 7/32 inch

4шт.

64

540872R1

BOLT,5/8" - 11 x 14", Cl B-2

- hex, 5/8 NC x 14 inch

4шт.

148015C91

TUBE ATTACHMENT - torque (Machinery item, order 0222529)

1шт.

67

148025C1

TUBE,2739.3 mm Length

BAR - lockout, lateral float

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

68

ZA502884

SUPPORT TUBE

BRACKET - mounting, torque tube (Replaces 148026C1)

1шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

69

NSS

NOT SOLD SEPARAT

GUSSET - mounting bracket

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

70

112079C1

BRACKET

U-BRACKET - torque tube

2шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.
