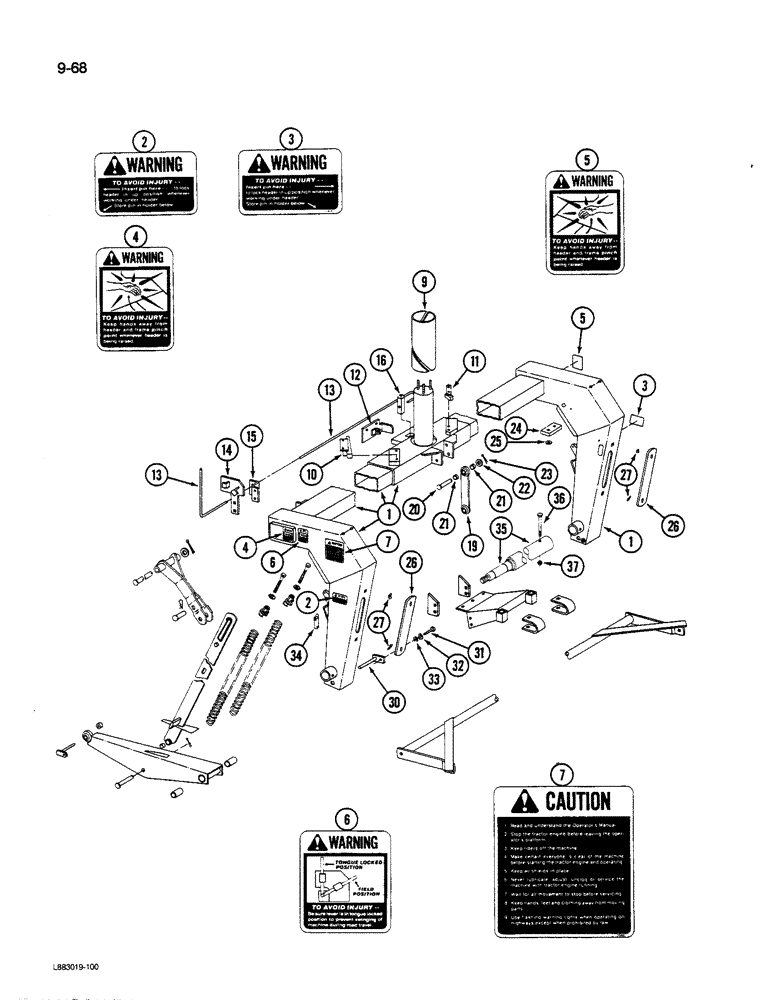

Запчасти Case IH 1590 (9-068) - CARRIER FRAME, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA502725

FRAME

ASSEMBLY - carrier, with decals

1шт.

2

REF

INSTRUCTION

DECAL - warning, insert pin here (Left side) (See Figure 9-98)

1шт.

3

REF

INSTRUCTION

DECAL - warning, insert pin here (Right side) (See Figure 9-98)

1шт.

4

REF

INSTRUCTION

DECAL - warning, frame pinch point (Left side) (See Figure 9-98)

1шт.

5

REF

INSTRUCTION

DECAL - warning, frame pinch point (Right side) (See Figure 9-98)

1шт.

6

REF

INSTRUCTION

DECAL - warning, tongue locking lever (See Figure 9-98)

1шт.

7

REF

INSTRUCTION

DECAL - caution, rules for safe operation (See Figure 9-98)

1шт.

9

143743C1

SHEET

BEARING - pivot

1шт.

10

ZA502660

SHIM

- left (1490 mower conditioner)

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(1490) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (1490) 1/2"

2шт.

11

ZA502663

BRACKET

SHIM - right (1490 mower conditioner)

1шт.

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

(1490) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

(1490) 3/8"

2шт.

12

1253498C1

COVER

- dust

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

1253499C1

ROD

LEVER - tongue locking

1шт.

14

1253501C1

LATCH

PLATE - latch, locking lever

1шт.

15

ZA502593

SUPPORT

- locking lever

1шт.

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

1253494C1

BAR

PIN - lockout

1шт.

19

1253519C1

LINK

- center

1шт.

20

112359C1

PIN

- round head square neck, 3/4 x 3-7/16 inch

2шт.

21

ZA701483

SPACER

- center link

4шт.

22

28585R1

WASHER

- flat, 1-1/32 x 1-5/8 x 1/16 inch

2шт.

23

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

24

ZA502523

BUMPER

- header

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

25

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

8шт.

26

148099C1

COVER

- frame leg

2шт.

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

27

141217C1

NUT

- retainer, 3/8 inch NC

4шт.

30

1253409C1

PIN ASSY.

PIN - header lift

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC (If equipped)

2шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

611346R1

WASHER

- flat, 13/32 x 7/8 x 3/64 inch

2шт.

34

523642R11

PIN ASSY.

PIN - locking, 3/4 x 1-1/4 inch

2шт.

35

ZA502501

SPINDLE

- wheel

2шт.

36

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

37

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.
