Запчасти Case IH 1590 (9-062) - HITCH EXTENSION AND TONGUE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

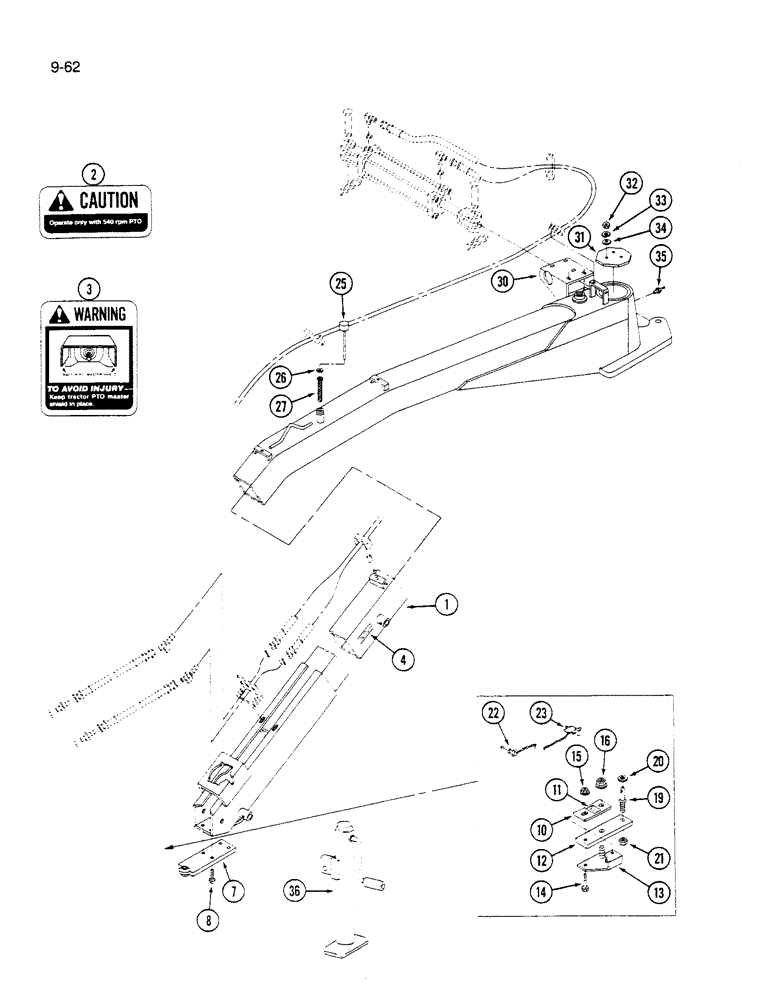

Схема запчастей Case IH 1590 - (9-062) - HITCH EXTENSION AND TONGUE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

1

ZA502726

TOW BAR

TONGUE ASSEMBLY - with decals

1шт.

2

REF

INSTRUCTION

DECAL - caution, 540 rpm PTO (See Figure 9-98)

1шт.

3

REF

INSTRUCTION

DECAL - warning, tractor PTO master shield (See Figure 9-98)

1шт.

4

REF

INSTRUCTION

DECAL - important, store jack here (See Figure 9-98)

1шт.

7

1253535C1

BAR ASSY.

BAR - hitch

1шт.

8

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

4шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

222605C92

BAR

ASSEMBLY - with decal

1шт.

11

REF

INSTRUCTION

DECAL - important, nut tightening instructions (See Figure 9-98)

1шт.

12

1253619C1

BAR

- hitch extension

1шт.

13

145950C1

SUPPORT

- safety chain

1шт.

14

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

15

60863C1

NUT

- hex flange lock, 5/8 inch NC

1шт.

16

148032C1

NUT,Flg, USR, 1"-8

- hex flange lock, 1 inch NC

1шт.

19

472790R2

STUD

PIN - hitch extension

1шт.

20

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

1шт.

21

26076R1

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

1шт.

22

119522C1

PIN

- snap lock, with chain

1шт.

23

176868H1

PIN

- snap lock, with chain

1шт.

25

1253622C1

GAUGE

- oil level

1шт.

26

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

27

ZA502743

SCREEN

STRAINER - oil

1шт.

30

ZA502832

ANGLE

- filter mounting (Replaces 148293C1)

1шт.

Filter mounting angle ZA502832 will accomodate either the old or the new oil filter assembly. See Page 8-23.

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

3шт.

31

148062C1

PLATE

COVER - pivot clamp

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

34

25710R1

WASHER

- flat, hardened

3шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

36

119354C1

JACK

ASSEMBLY - side crank (Alternative part is 135061C91)

1шт.

36

135061C91

JACK

ASSEMBLY - side crank (Alternative part)

1шт.

Выбрано товаров: 32
