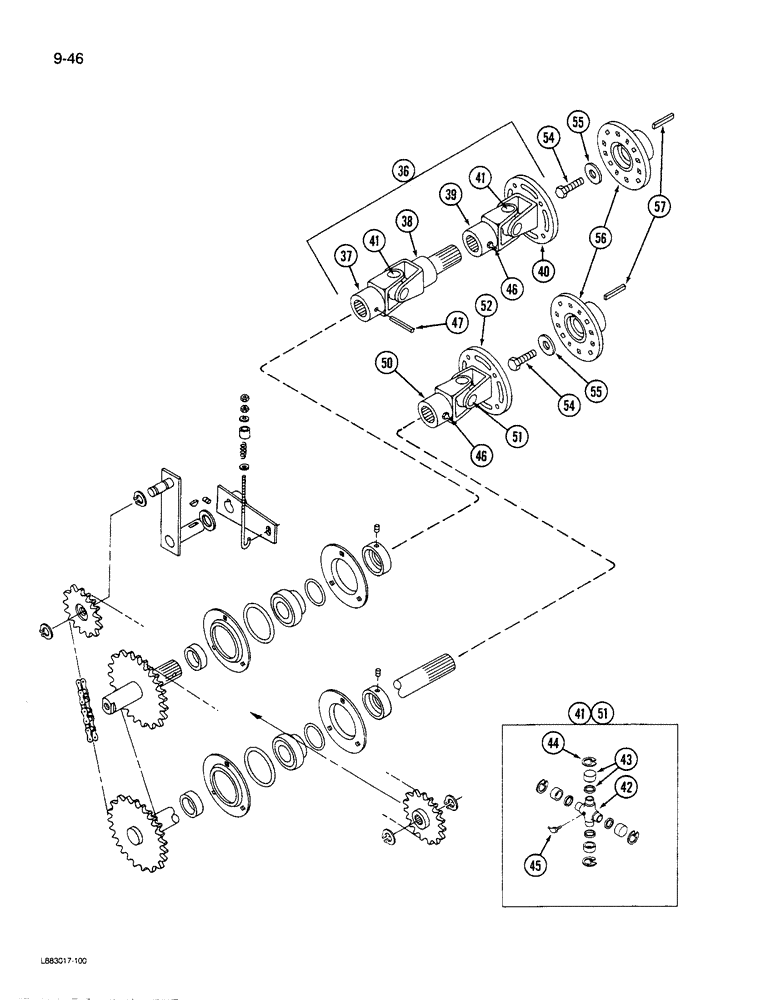

Запчасти Case IH 1590 (9-046) - CONDITIONING ROLL DRIVE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

36

ZA502506

JOINT

ASSEMBLY - upper roll (1490 mower conditioner)

1шт.

36

ZA502507

JOINT

ASSEMBLY, upper roll, 1590 mower conditioner, consists of: 1 EA. ZA502510, ZA502512 and 480486R91

1шт.

37

ZA502510

YOKE

- splined

1шт.

38

ZA502511

YOKE

- splined shaft (1490 mower conditioner)

1шт.

38

ZA502512

YOKE

- splined shaft (1590 mower conditioner)

1шт.

39

ZA502504

YOKE

- splined

1шт.

40

ZA502505

FORK

YOKE - flanged

1шт.

41

480486R91

CROSS

KIT - cross and bearing

2шт.

42

NSS

NOT SOLD SEPARAT

CROSS - yoke

1шт.

43

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY - bearing (Includes needles and seal)

4шт.

44

606177R1

SNAP RING

RING - retaining

4шт.

45

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

46

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

47

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

1шт.

50

ZA502504

YOKE

- splined

1шт.

51

480486R91

CROSS

KIT - cross and bearing (Includes Ref. 42 through 45)

1шт.

52

ZA502505

FORK

YOKE - flanged

1шт.

54

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

2шт.

55

148285C2

WASHER

- flat, hardened

2шт.

56

146364C1

HUB

- conditioning roll

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

57

Q55

KEY,3/8" Sq x 2", Par

- 3/8 square x 2 inch

2шт.
