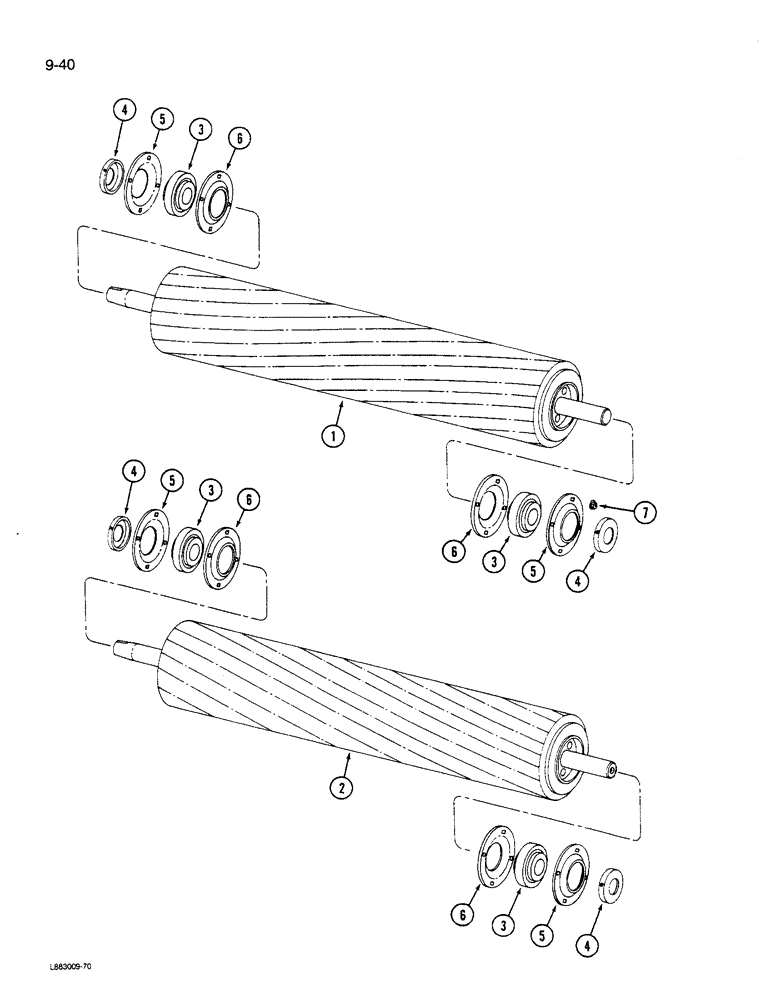

Запчасти Case IH 1590 (9-040) - CONDITIONING ROLLS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

102005C1

ROLL

- upper intermeshing

1шт.

2

143778C1

ROLL

- lower intermeshing

1шт.

3

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING ASSEMBLY - ball

4шт.

4

455112R11

COLLAR

- locking, bearing, with set screw

4шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

5

488454R1

FLANGED BEARING

- bearing, with grease fitting

4шт.

6

488455R1

FLANGE

- bearing

4шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

16шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.
