Запчасти Case IH 1590 (9-036) - AUGER, AUGER DRIVE AND KNIFE DRIVE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

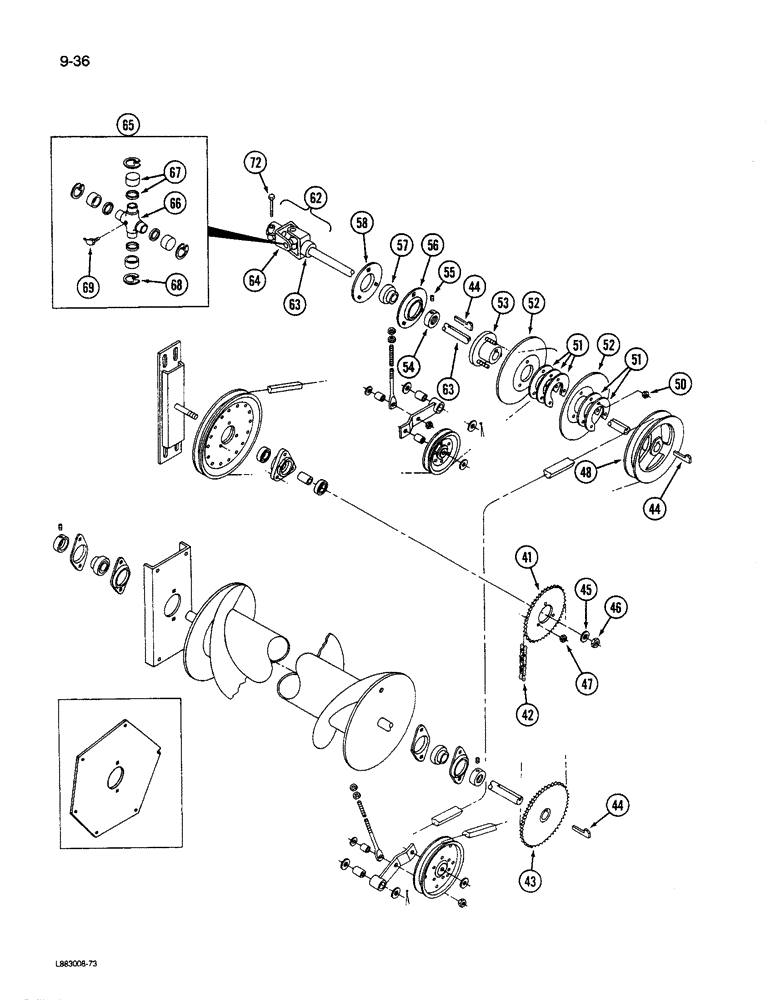

Схема запчастей Case IH 1590 - (9-036) - AUGER, AUGER DRIVE AND KNIFE DRIVE, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

41

1253664C1

SPROCKET ASSY.

SPROCKET - auger drive, 41 tooth

1шт.

42

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive (Use 89 links from bulk chain 1790D, and 1 connecting link 1301D)

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

43

1253666C1

SPROCKET ASSY.

SPROCKET - auger, 47 tooth

1шт.

44

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

- tapered, 3/8 x 1-3/4 inch

3шт.

45

43374D

SPRING WASHER

- flat, 49/64 x 1-1/16 x 1/16 inch

1шт.

46

548033R1

JAM NUT

NUT - hex jam lock, 3/4 inch NF

1шт.

47

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

3шт.

48

1265839C1

PULLEY

- knife drive

1шт.

50

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

3шт.

51

148218C1

SHIM

- pulley

1шт.

52

112021C1

PULLEY

- half

2шт.

53

148215C2

HUB ASSY.

HUB ASSEMBLY - drive

1шт.

54

517645R11

COLLAR

ASSEMBLY - locking, bearing, with set screw

1шт.

55

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

1шт.

56

473092R1

FLANGED BEARING

- bearing

1шт.

57

1414239R91

BALL BEARING

ASSEMBLY - ball

1шт.

58

473091R91

FLANGE

- bearing, with grease fitting

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

3шт.

492-11038

LOCK WASHER,3/8"

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

62

ZA502508

JOINT

ASSEMBLY - jackshaft (1490 mower conditioner)

1шт.

62

ZA502509

JOINT

ASSEMBLY - jackshaft (1590 mower conditioner)

1шт.

63

ZA502513

YOKE

JACKSHAFT ASSEMBLY - auger and knife (1490)

1шт.

63

ZA502514

YOKE

JACKSHAFT ASSEMBLY - auger and knife (1590)

1шт.

64

ZA502837

YOKE

- splined clamp

1шт.

65

480486R91

CROSS

KIT - cross and bearing

1шт.

66

NSS

NOT SOLD SEPARAT

CROSS - yoke

1шт.

67

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY - bearing (Includes needles and seal)

4шт.

68

606177R1

SNAP RING

RING - retaining

4шт.

69

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

72

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

25710R1

WASHER

- flat, hardened

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

Выбрано товаров: 35
