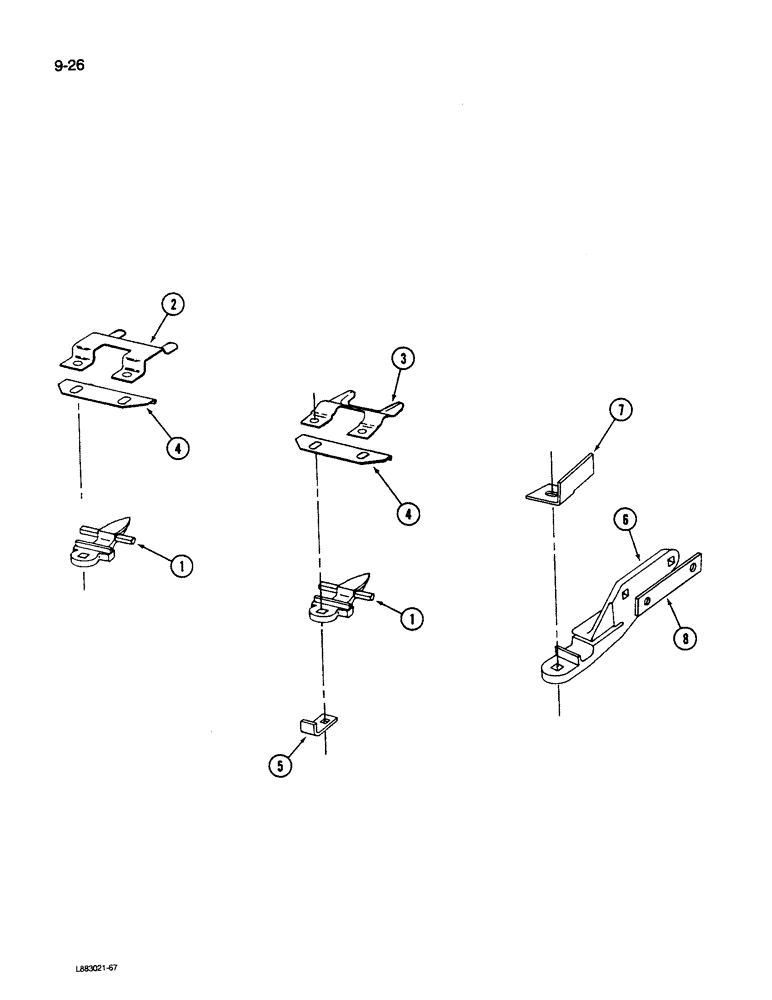

Запчасти Case IH 1590 (9-026) - KNIFE GUARDS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

472717R2

GUARD

- stub, 1490

49шт.

1

472717R2

GUARD

- stub, 1590

57шт.

2

101832C2

CLIP

- knife hold-down, stub guard, high arch

2шт.

3

101831C2

CLIP

- knife hold-down, stub guard, low arch, 1490

20шт.

3

101831C2

CLIP

- knife hold-down, stub guard, low arch, 1590

24шт.

4

MC468

PLATE ASSY.

PLATE - wear, 1490

22шт.

4

MC468

PLATE ASSY.

PLATE - wear, 1590

26шт.

5

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide

10шт.

1253593C91

PACKAGE

KIT - right divider guard, Includes: Ref. 6 - 8 & 154273C1, 893862R1 & 495-11041

1шт.

6

1253640C1

GUARD ASSY.

GUARD - right divider

1шт.

7

1253641C1

CLIP

- divider guard

1шт.

8

143799C1

BAR

- divider guard

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch

3шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch

37шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch

45шт.

489246R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch

1шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

1шт.

609825R1

CARRIAGE BOLT,7/16" - 14 x 2", Grade 5

BOLT - round head square neck, 7/16 NC x 2 inch

1шт.

129-104

NUT,7/16"-14, G5

1шт.

9413954

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.
