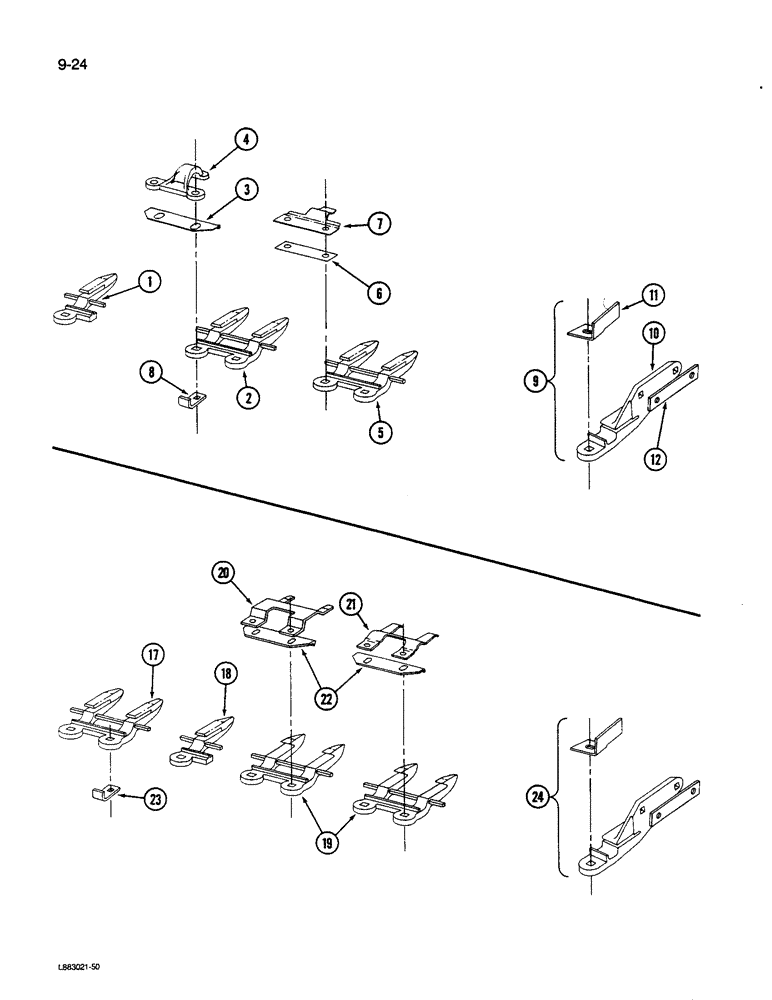

Запчасти Case IH 1590 (9-024) - KNIFE GUARDS, 1490 AND 1590 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

486452R2

SHIELD

GUARD - single

1шт.

2

483500R3

GUARD

- standard double

3шт.

REF: #2 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

3

MC468

PLATE ASSY.

PLATE - wear

1шт.

4

611759R1

KNIFE CLIP

CLIP - knife hold-down, high arch

1шт.

REF: #5 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

5

613838R2

GUARD

- standard double, with knife support, 1490

21шт.

5

613838R2

GUARD

- standard double, with knife support, 1590

25шт.

6

126628C1

SHIM

- knife hold down, 1490

11шт.

6

126628C1

SHIM

- knife hold down, 1590

13шт.

7

544274R1

CLIP

- knife hold down, low arch, 1490

11шт.

7

544274R1

CLIP

- knife hold down, low arch, 1590

13шт.

8

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide

10шт.

9

1253593C91

PACKAGE

KIT - right divider guard

1шт.

10

1253640C1

GUARD ASSY.

GUARD - right divider

1шт.

11

1253641C1

CLIP

- divider guard

1шт.

12

143799C1

BAR

- divider guard

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch, 1490

20шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch, 1590

24шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, 1490

19шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, 1590

23шт.

489246R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch

1шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

1шт.

609825R1

CARRIAGE BOLT,7/16" - 14 x 2", Grade 5

BOLT - round head square neck, 7/16 NC x 2 inch

1шт.

129-104

NUT,7/16"-14, G5

1шт.

9413954

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

17

483500R3

GUARD

- standard double STRUT GUARD

2шт.

18

486452R2

SHIELD

GUARD - single STRUT GUARD

1шт.

19

58600C1

GUARD ASSY.

GUARD - STRUT, 1490

22шт.

19

58600C1

GUARD ASSY.

GUARD - STRUT, 1590

26шт.

20

58602C1

CLIP

- knife hold-down, strut guard, high arch STRUT GUARD

2шт.

21

58601C1

CLIP

- knife hold-down, strut guard, low arch, 1490

20шт.

21

58601C1

CLIP

- knife hold-down, strut guard, low arch, 1590

24шт.

22

MC468

PLATE ASSY.

PLATE - WEAR, 1490

22шт.

22

MC468

PLATE ASSY.

PLATE - WEAR, 1590

26шт.

23

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide STRUT GUARD

10шт.

24

1253593C91

PACKAGE

KIT - right divider guard (See Ref. 9 for parts) STRUT GUARD

1шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch STRUT GUARD

3шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, 1490

37шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch, 1590

35шт.

489246R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch STRUT GUARD

1шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch STRUT GUARD

1шт.

609825R1

CARRIAGE BOLT,7/16" - 14 x 2", Grade 5

BOLT - round head square neck, 7/16 NC x 2 inch STRUT GUARD

1шт.

129-104

NUT,7/16"-14, G5

Strut guard 7/16"-14, G5

1шт.

9413954

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC STRUT GUARD

1шт.
