Запчасти Case IH 1590 (9-022) - KNIFE, 1490 AND 1590 MOWER CONDITIONER, ASSEMBLED WITH 1/4 INCH RIVETS ONLY (03) - CHASSIS/MOUNTED EQUIPMENT

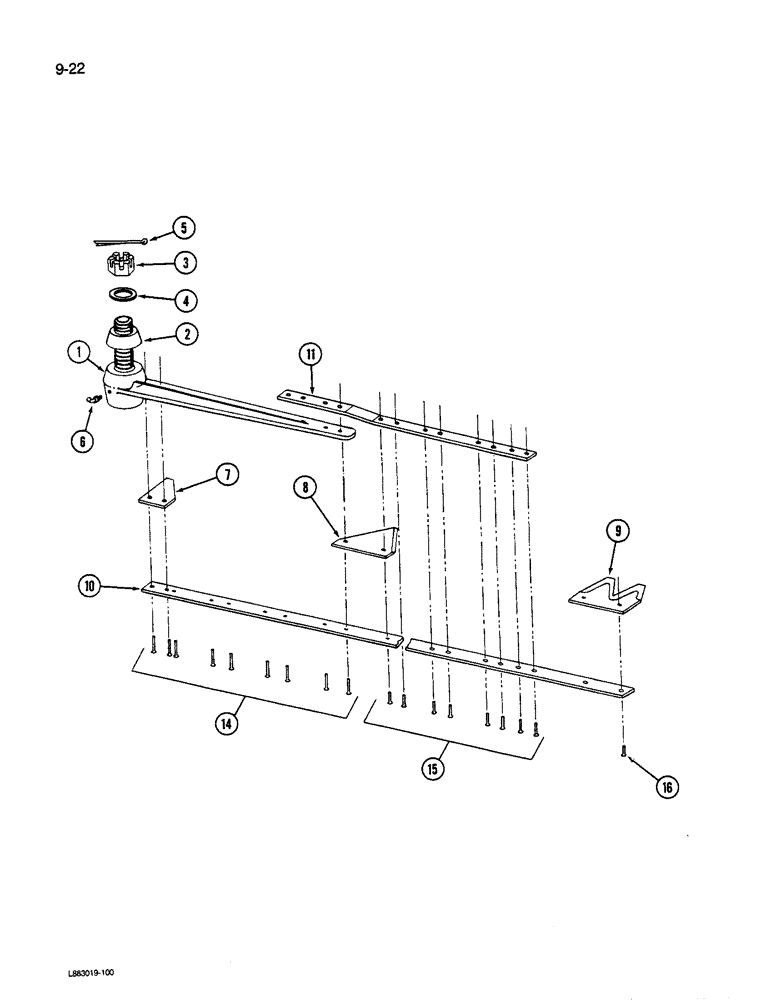

Схема запчастей Case IH 1590 - (9-022) - KNIFE, 1490 AND 1590 MOWER CONDITIONER, ASSEMBLED WITH 1/4 INCH RIVETS ONLY (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

143806C92

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with underserrated sections (1490 mower conditioner)(Order ZA502889)

1шт.

143807C92

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with underserrated sections (1590 mower conditioner)(Order ZA502890)

1шт.

1

ZA502562

HEAD ASSY.

HEAD ASSEMBLY - knife

1шт.

2

151926C1

SEAL

SEAL - knife head

1шт.

3

125267

NUT

- hex slotted, 5/8 inch NF

1шт.

4

425262R1

WASHER

- flat, hardened

1шт.

5

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

6

16964R91

FITTING

- grease, 90 degree, 1/4 inch NF

1шт.

7

ZA502643

CUTTER BAR

SECTION - knife, half, chrome

1шт.

8

823711C2

KNIFE SECTION

SECTION - knife, 3 inch, underserrated, chrome (Uses 1/4 inch rivets), 1490

48шт.

8

823711C2

KNIFE SECTION

SECTION - knife, 3 inch, underserrated, chrome (Uses 1/4 inch rivets), 1590

56шт.

9

ZA502561

CUTTER BAR

SECTION - knife, right end, chrome (Uses 1/4 inch rivets)

1шт.

10

NSS

NOT SOLD SEPARAT

BAR - knife back (Order knife assembly)

1шт.

11

1253963C1

REINFORCEMENT

- back bar, knife

1шт.

14

990727R91

RIVET

- button head, 1/4 x 1-1/8 inch (Package of 52)

9шт.

15

990324R91

RIVET

- button head, 1/4 x 7/8 inch (Package of 60)

8шт.

16

990323R91

PACKAGE

RIVET - button head, 1/4 x 3/4 inch (Package of 66), 1490

83шт.

16

990323R91

PACKAGE

RIVET - button head, 1/4 x 3/4 inch (Package of 66), 1590

99шт.

Выбрано товаров: 18
