Запчасти Case IH 1590 (9-020) - KNIFE, 1490 AND 1590 MOWER CONDITIONER, ASSEMBLED WITH 1/4 INCH & NO. 5-1/2 RIVETS (03) - CHASSIS/MOUNTED EQUIPMENT

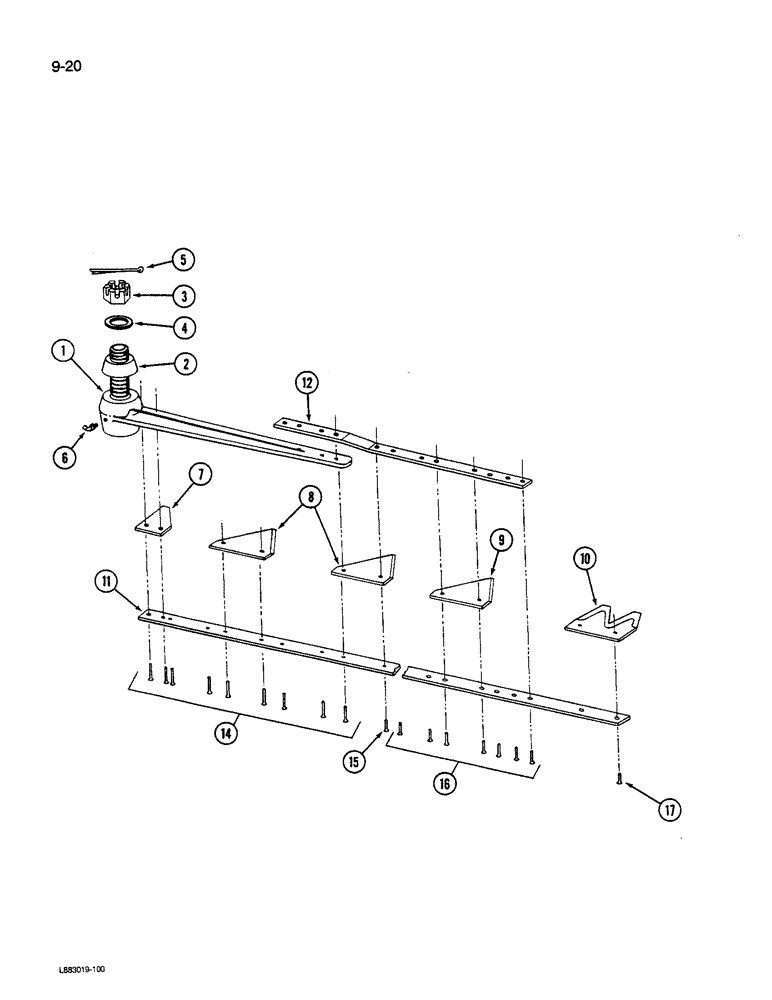

Схема запчастей Case IH 1590 - (9-020) - KNIFE, 1490 AND 1590 MOWER CONDITIONER, ASSEMBLED WITH 1/4 INCH & NO. 5-1/2 RIVETS (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

ZA502930

KNIFE

ASSEMBLY - 3 inch, with overserrated sections (1490 mower conditioner)

1шт.

ZA502931

KNIFE

ASSEMBLY - 3 inch, with overserrated sections (1590 mower conditioner)

1шт.

ZA502889

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with underserrated sections (Replaces 143806C92) (1490 mower conditioner)

1шт.

ZA502890

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with underserrated sections (Replaces 143807C92) (1590 mower conditioner)

1шт.

1

ZA502562

HEAD ASSY.

HEAD ASSEMBLY - knife

1шт.

2

151926C1

SEAL

SEAL - knife head

1шт.

3

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

1шт.

4

425262R1

WASHER

- flat, hardened

1шт.

5

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

6

16964R91

FITTING

- grease, 90 degree, 1/4 inch NF

1шт.

7

ZA502643

CUTTER BAR

SECTION - knife, half, chrome

1шт.

8

823713C2

KNIFE SECTION

SECTION - knife, 3 inch overserrated, chrome

4шт.

8

823711C2

KNIFE SECTION

SECTION - knife, 3 inch underserrated, chrome

4шт.

9

596321R3

KNIFE SECTION

SECTION - knife, 3 inch overserrated, chrome (Uses No. 5-1/2 rivets), 1490

44шт.

9

596321R3

KNIFE SECTION

SECTION - knife, 3 inch overserrated, chrome (Uses No. 5-1/2 rivets), 1590

52шт.

9

457607R2

KNIFE SECTION

SECTION - knife, 3 inch underserrated, chrome (Uses No. 5-1/2 rivets), 1490

44шт.

9

457607R2

KNIFE SECTION

SECTION - knife, 3 inch underserrated, chrome (Uses No. 5-1/2 rivets), 1590

52шт.

10

148200C1

KNIFE SECTION

SECTION - knife, right end, chrome (Uses No. 5-1/2 rivets)

1шт.

11

NSS

NOT SOLD SEPARAT

BAR - knife back (Order knife assembly)

1шт.

12

ZA502891

BAR

REINFORCEMENT - back bar, knife

1шт.

14

990727R91

RIVET

- button head, 1/4 x 1-1/8 inch (Package of 52)

9шт.

15

990324R91

RIVET

- button head, 1/4 x 7/8 inch (Package of 60)

1шт.

16

MA133M

RIVET,23.81mm OD x 139.7mm L

- oval head, No. 5-1/2 x 15/16 inch (1 pound package)

7шт.

17

990817R91

RIVET

- oval head, No. 5-1/2 x 9/16 inch (package of 130), 1490

83шт.

17

990817R91

RIVET

- oval head, No. 5-1/2 x 9/16 inch (package of 130), 1590

99шт.

Выбрано товаров: 25
