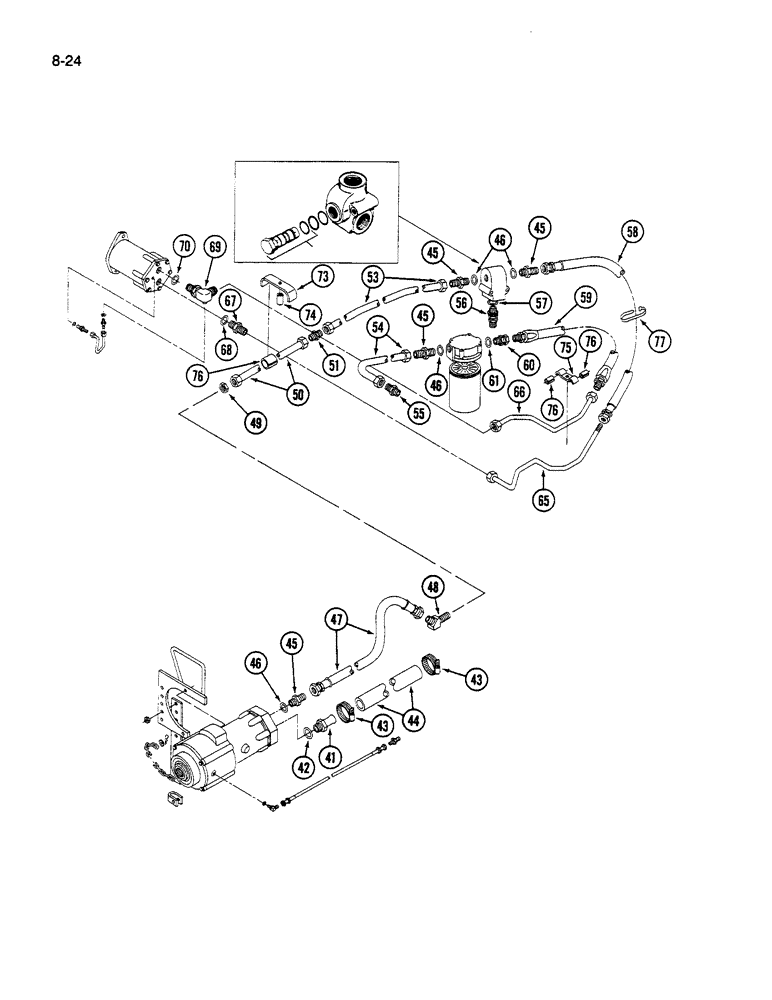

Запчасти Case IH 1490 (8-24) - PUMP HYDRAULIC SYSTEM, 1490 & 1590 MOWER CONDITIONER (07) - HYDRAULICS

41

116489C1

FITTING

ADAPTER ASSEMBLY - 1-5/8-12 O-ring boss x 1-1/2 inch hose

1шт.

42

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 ID x 1/8 inch

1шт.

43

224909C1

CLAMP,1.25/2.125 HD Worm, W/liner

- hose

2шт.

44

143699C1

HYDRAULIC HOSE

HOSE - 1-1/2 ID x 43-3/4 inch

1шт.

45

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short, 1-5/16 flared x 1-5/16 inch O-ring boss

4шт.

46

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 7/64 inch

4шт.

47

143700C1

HYDRAULIC HOSE

HOSE ASSEMBLY - high pressure, 1 inch ID x 45-3/4 inch

1шт.

48

1336827C1

FITTING

ELBOW ASSEMBLY - bulkhead, 45 degree, 1-5/16-12 inch flared

1шт.

49

9403298

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT - bulkhead hex lock, 1-5/16-12 inch

1шт.

50

143709C1

TUBE

ASSEMBLY - high pressure, lower

1шт.

51

23695R1

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 1-5/16-12 inch flared

1шт.

53

1253463C1

TUBE,1" OD

ASSEMBLY - high pressure, upper

1шт.

54

148291C1

HYD TUBE

TUBE ASSEMBLY - hydraulic (Filter return)

1шт.

55

9402713

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

CONNECTOR - 1-5/16-12 flared x 1 inch PT

1шт.

56

1336837C1

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - adjustable, 1-5/16 O-ring boss x 1 inch PT

1шт.

57

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 7/64 inch

1шт.

58

143703C1

HOSE

ASSEMBLY - high pressure, 1 inch ID x 81 inch

1шт.

59

143704C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 1 inch ID x 71 inch (Motor return)

1шт.

60

1336836C1

ADAPTER

CONNECTOR ASSEMBLY - 1-5/16 female flared x 1-5/16 inch O-ring boss

1шт.

61

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 7/64 inch

1шт.

65

ZA502641

TUBE,1.00" OD

ASSEMBLY - hydraulic (Motor supply) (1490 mower conditioner)

1шт.

65

143712C2

TUBE,1" OD

ASSEMBLY - hydraulic (Motor supply) (1590 mower conditioner)

1шт.

66

ZA502640

TUBE,1.00" OD

ASSEMBLY - hydraulic (Motor return) (1490)

1шт.

the ZA numbers for ref #65 and ref #66 are switched around in the diagram.

1шт.

66

143711C2

TUBE,1" OD

ASSEMBLY - hydraulic (Motor return) (1590)

1шт.

67

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short, 1-5/16 flared x 1-1/16 inch O-ring boss

1шт.

68

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch

1шт.

69

1253338C1

ELBOW

ASSEMBLY - 90 degree adjustable, 1-5/16 flared x 1-1/16 inch O-ring boss

1шт.

70

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch

1шт.

73

ZA502757

CLAMP

- hose

3шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

- hex, 3/8 NC x 7/8 inch

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

74

73675R1

SPACER - 1/2 ID x 1-3/16 inch

3шт.

75

ZA502756

CLAMP

- tube

1шт.

76

ZA502755

BUSHING

- rubber

5шт.

77

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie, 7 inch

1шт.
