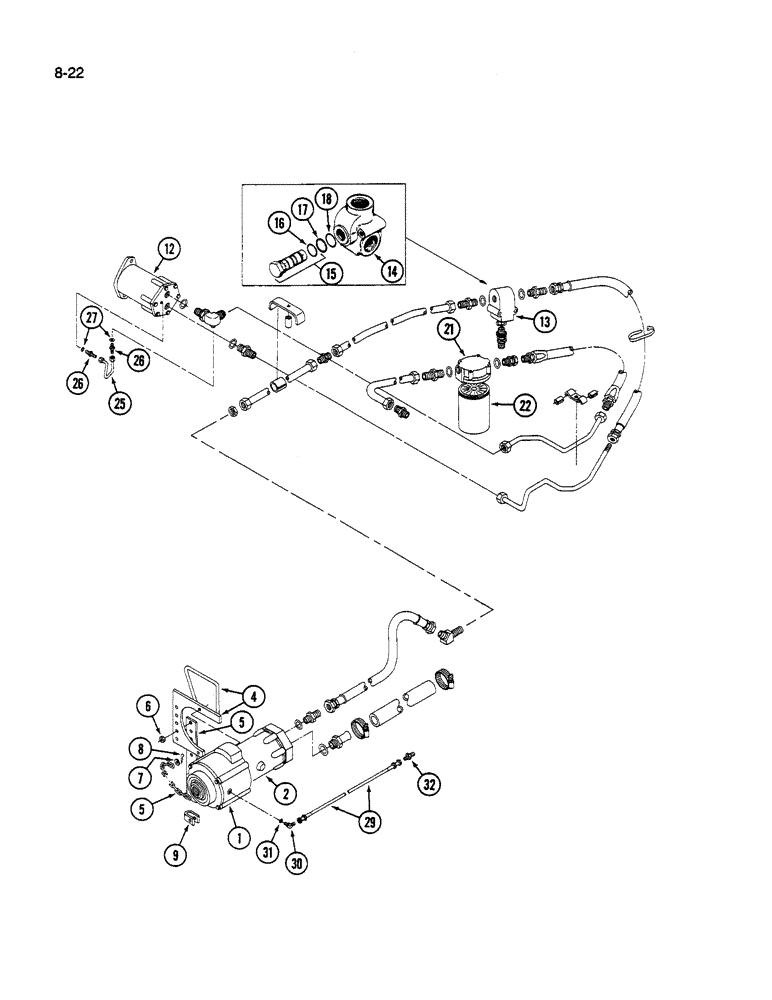

Запчасти Case IH 1490 (8-22) - PUMP HYDRAULIC SYSTEM, 1490 & 1590 MOWER CONDITIONER (07) - HYDRAULICS

1

REF

INSTRUCTION

GEARBOX ASSEMBLY - mower conditioner (See Figure 8-26)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-28)

1шт.

4

148104C1

PLATE ASSY.

PLATE - torque strap

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

5

119454C1

STRAP

- torque

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

6

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

7

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

8

407207R1

CLIP

PIN - cotter, hair type, 3/32 inch (Package of 50)

1шт.

9

1253605C1

BUMPER

- limit strap

1шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic (See Figure 8-30)

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

2шт.

13

ZA502718

VALVE

ASSEMBLY - hydraulic

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve (Order ZA502718)

1шт.

15

1260899C1

VALVE

ASSEMBLY - relief

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 7/8 ID x 3/32 inch

1шт.

Part of seal kit P/N 79687C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup (Order seal kit)

1шт.

Part of seal kit P/N 79687C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - relief valve (Order seal kit)

1шт.

Part of seal kit P/N 79687C1

1шт.

79687C1

SEAL KIT

- seal, Includes Refs. 16, 17 and 18

1шт.

21

ZA502956

FILTER ASSY

FILTER ASSEMBLY - oil (Replaces 1252003C91)

1шт.

If filter assembly ZA502956 is ordered for 1490 with P.I.N. prior to 811 or 1590 with P.I.N. prior to 799, a new filter mounting angle must be ordered also. The old filter mounting angle will not accomodate the new filter assembly. See Page 9-63.

1шт.

22

ZA502957

FILTER

ELEMENT - filter, 3-11/16 inch diameter, with gasket (Fits ZA502956 only)

1шт.

22

69149C1

FILTER

ELEMENT - filter (Prior to P.I.N. 811 for 1490, and P.I.N. 799 for 1590) (Fits 1252003C91 only)

1шт.

123010C2

GASKET

- filter element (Used with 69149C1 only)

1шт.

25

ZA502671

TUBE,0.375" OD

- drain, motor case (1490 mower conditioner)

1шт.

25

143715C1

TUBE,0.0375" OD

- drain, motor case (1590 mower conditioner)

1шт.

26

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - 9/16-18 flared x 1/4 inch PT

2шт.

29

129908C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 1/4 ID x 55 inch (Replaces 143701C1)

1шт.

30

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 flared x 9/16-18 inch O-ring boss

1шт.

32

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR - 9/16-18 flared x 3/8 inch PT

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
