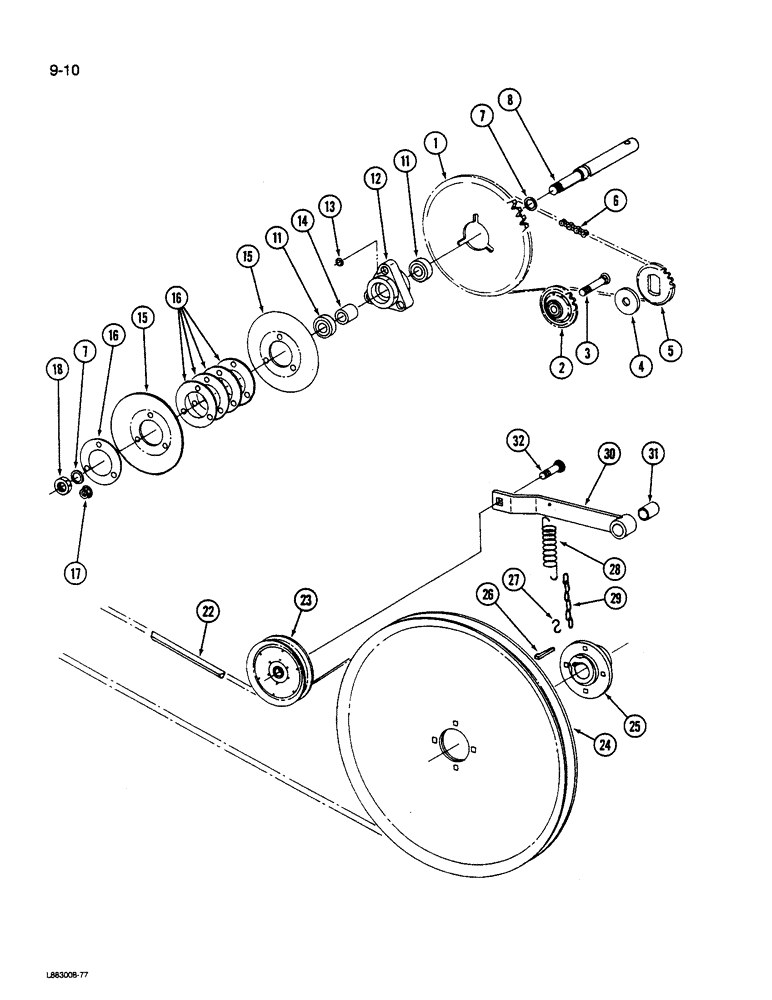

Запчасти Case IH 1190 (9-010) - REEL DRIVE, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

101996C1

DRIVE SPROCKET

SPROCKET - reel reduction

1шт.

2

607779R91

DRIVE SPROCKET

SPROCKET - idler, 18 tooth

1шт.

3

135015C2

CARRIAGE BOLT,Spcl, Short Sq Nk, 1/2" - 13 x 2.25", Full Thd

BOLT - round head short square neck, 1/2 NC x 2-1/4 inch

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

4

101936C2

WASHER

- flat, hardened

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex lock, 1/2 NC x 1 inch, Grade 8

1шт.

5

126584C1

DRIVE SPROCKET

SPROCKET - reel drive

1шт.

6

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - reel drive (Use 81 links from bulk chain 1790D, 1 offset link 1303D, and 1 connecting link 1301D)

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

1303D

LINK

- chain, offset

1шт.

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

7

43374D

SPRING WASHER

- flat, 49/64 x 1-1/16 x 1/16 inch

1шт.

8

126575C2

SHAFT

- pivot, right (See Page 9-074)

1шт.

11

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING ASSEMBLY - ball

2шт.

12

119488C2

HUB

- reel drive

1шт.

13

610139C1

NUT

- speed

3шт.

14

143753C1

SPACER

BUSHING - spacer, 1 OD x 1-1/4 inch

1шт.

15

112021C1

PULLEY

- half

2шт.

16

148218C1

SHIM

- pulley (Replaces 101999C1)

1шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT - round head square neck, 3/8 NC x 2-3/4 inch

3шт.

17

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

3шт.

18

548033R1

JAM NUT

NUT - hex jam lock, 3/4 inch NF

1шт.

22

153301C1

V-BELT,0.88" W x 115.87" L

Reel Drive 0.88" W x 115.87" L

1шт.

23

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- idler, 6 inch OD (Alternative part is F17080)

1шт.

23

F17080

PULLEY

- idler (Replaces 566519R91)(Alternative part is 566518R91)

1шт.

24

542525R2

PULLEY

- reel drive

1шт.

25

593691R3

HUB

- pulley

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

4шт.

148139C1

LOCK NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

4шт.

26

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

- tapered, 3/8 x 1-3/4 inch

1шт.

27

512749R1

HOOK

S-HOOK - steel

1шт.

28

481400R1

VALVE SPRING

SPRING - extension

1шт.

29

126516C1

CHAIN (AG)

CHAIN - adjusting

1шт.

30

119562C1

ARM

ASSEMBLY - pivot

1шт.

31

660706C1

BUSHING

- pivot arm

1шт.

21758R1

WASHER

- flat, 25/32 x 1-1/4 x 1/16 inch

4шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

1шт.

32

135015C2

CARRIAGE BOLT,Spcl, Short Sq Nk, 1/2" - 13 x 2.25", Full Thd

BOLT - round head short square neck, 1/2 NC x 2-1/4 inch

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.
