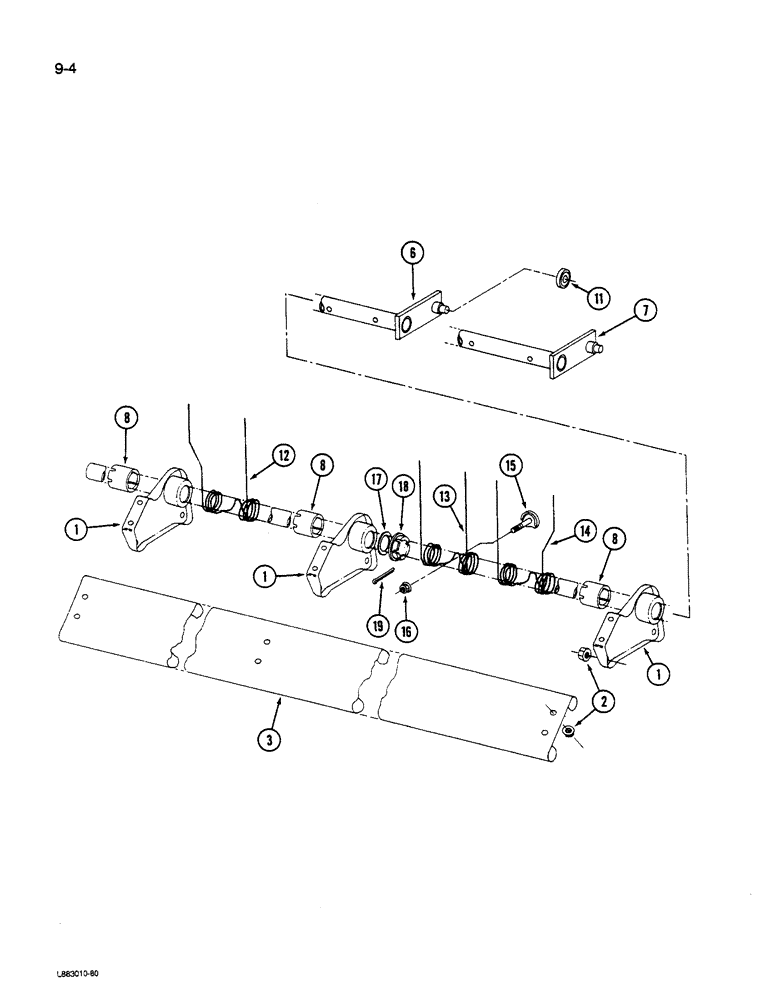

Запчасти Case IH 1190 (9-004) - TINE BAR AND TINES, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

135012C1

SUPPORT

- bearing and bat

12шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

24шт.

2

473371R1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

48шт.

3

112097C1

BAR

BAT - reel (7 foot 1190)

4шт.

3

112098C1

LARGE PLATE

BAT - reel (9 foot 1190)

4шт.

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

24шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

24шт.

6

119469C1

BAR

- tine, odd, without tines (Second hole 5-3/8 inches from cam arm) (7 foot 1190)

2шт.

6

119473C1

BAR

- tine, odd, without tines (Second hole 5-3/8 inches from cam arm) (9 foot 1190)

2шт.

7

119471C1

BAR

- tine, even, without tines (Second hole 7-1/2 inches from cam arm) (7 foot 1190)

2шт.

7

119475C1

BAR

- tine, even, without tines (Second hole 7-1/2 inches from cam arm) (9 foot 1190)

2шт.

8

135045C1

BUSHING,33.35mm ID x 43.94mm OD x 48mm L

- tine bar

12шт.

11

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

ASSEMBLY - ball

4шт.

12

60341C1

TOOTH

TINE - reel, right

4шт.

13

540565R1

SPRING

TINE - reel (7 foot 1190)

28шт.

13

540565R1

SPRING

TINE - reel (9 foot 1190)

40шт.

14

60340C1

TOOTH

TINE - reel, left

4шт.

15

126591C1

BOLT,5/16" - 18 x 48.20mm

BOLT - reel tine (7 foot 1190)

36шт.

15

126591C1

BOLT,5/16" - 18 x 48.20mm

BOLT - reel tine (9 foot 1190)

48шт.

16

148139C1

LOCK NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch, NC Grade 8 (7 foot 1190)

36шт.

16

148139C1

LOCK NUT,Flg, 5/16"-18

NUT - hex flange lock, 5/16 inch, NC Grade 8 (9 foot 1190)

48шт.

17

21794R1

WASHER

- flat, 1-13/32 x 2 x 1/32 inch

4шт.

18

135019C1

WASHER

- adjustable, special

4шт.

19

432-1232

COTTER PIN,3/16" OD x 2" L

PIN - cotter, 3/16 x 2-1/4 inch

16шт.
