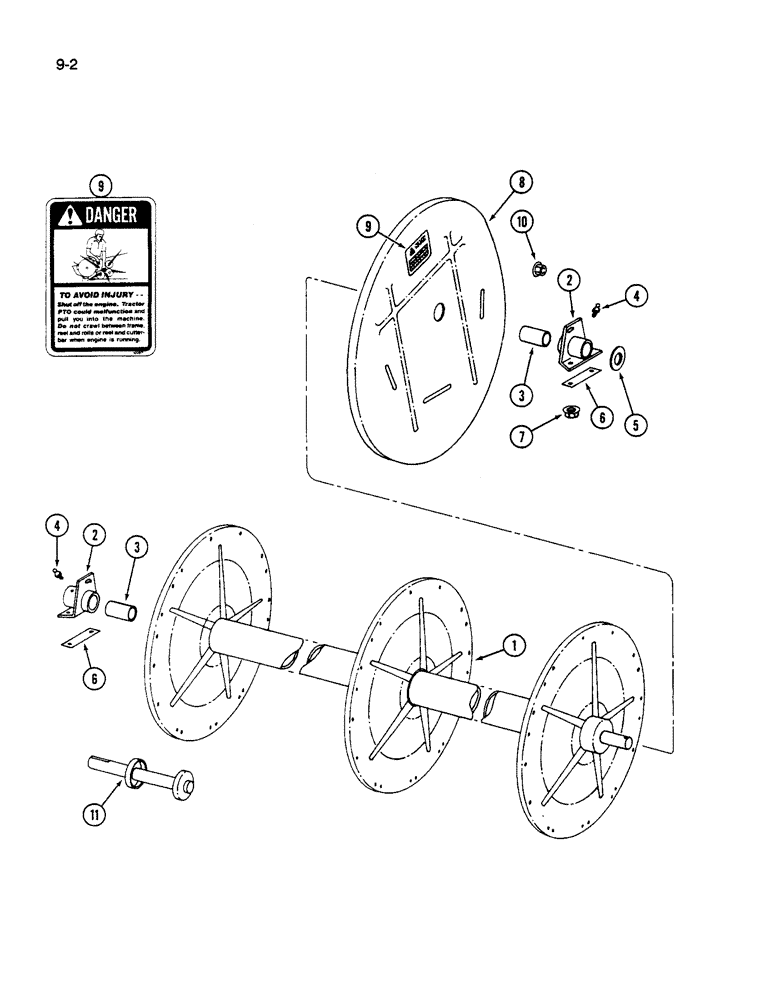

Запчасти Case IH 1190 (9-002) - REEL, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

112112C1

REEL

- mower conditioner (7 foot 1190)

1шт.

1

112113C1

REEL

- mower conditioner (9 foot 1190)

1шт.

2

119427C1

SUPPORT

ASSEMBLY - reel shaft

2шт.

3

493410R1

BUSHING,31.8mm ID x 34.95mm OD x 63.5mm L

- reel shaft

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

5

N42395

WASHER

- flat, 1-9/32 x 1-3/4 x 7/64 inch

1шт.

22050R1

WASHER

- flat, 1-9/32 x 1-3/4 x 3/64 inch

1шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

6

112107C1

BAR

SHIM - shaft support

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

4шт.

7

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

8

ZA502064

CAM

ASSEMBLY - reel, with decal (Replaces 119423C1)

1шт.

9

REF

INSTRUCTION

DECAL - danger, to avoid injury shut off engine (Left side) (See Figure 9-98)

1шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

3шт.

10

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

3шт.

11

148013C1

SHAFT

- repair, reel (Replaces 135180C1) (To replace left or right reel shaft)

1шт.
