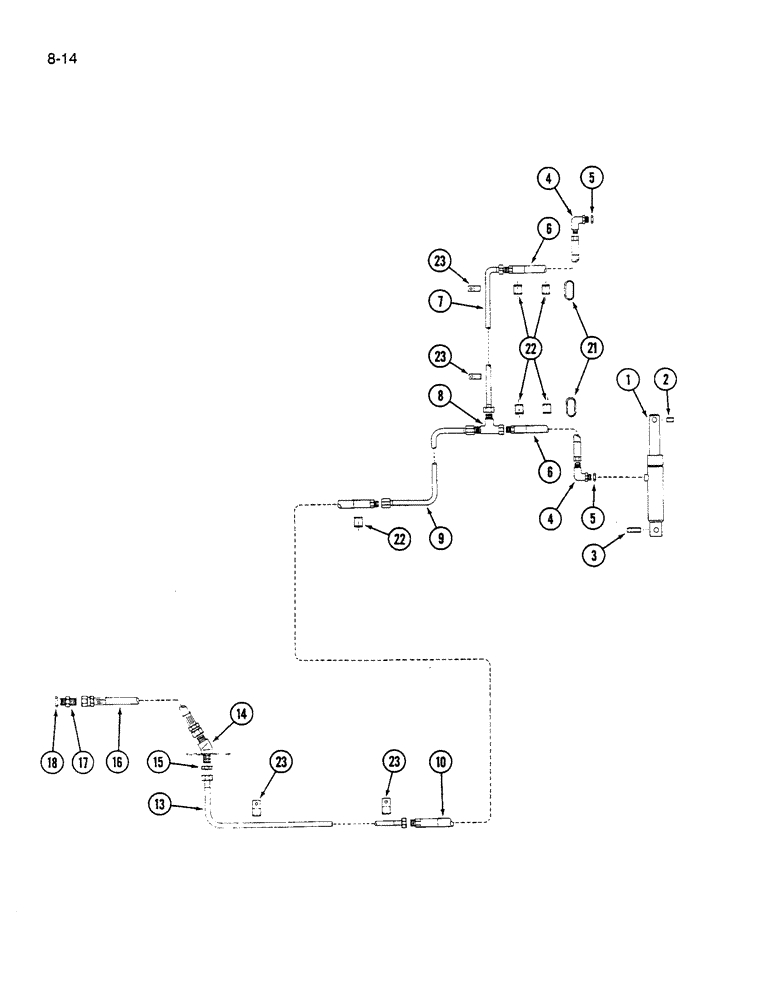

Запчасти Case IH 1190 (8-14) - HEADER LIFT HYDRAULIC SYSTEM, 1190 MOWER CONDITIONER (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - header lift (See Page 8-19)

2шт.

2

119466C1

SPACER

- rod end, cylinder

2шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

3

119467C1

SPACER

- body end, cylinder

2шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 flared x 9/16-18 inch O-ring boss

2шт.

6

126666C1

HOSE,9.53 mm ID x 939.80 mm, SAE 100R1

2шт.

7

112048C1

HYD TUBE

TUBE ASSEMBLY - hydraulic, 3/8 inch OD (7 foot 1190)

1шт.

7

112049C1

HYD TUBE

TUBE ASSEMBLY - hydraulic, 3/8 inch OD (9 foot 1190)

1шт.

8

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flared

1шт.

9

126603C1

HYD TUBE

TUBE ASSEMBLY - hydraulic, 3/8 inch OD

1шт.

10

673578R1

HOSE

ASSEMBLY - 3/8 ID x 30 inch

1шт.

13

112041C1

HYD TUBE

TUBE ASSEMBLY - hydraulic, 3/8 inch OD

1шт.

14

208702C1

ELBOW

ASSEMBLY - bulkhead, 45 degree, 9/16-18 inch flared

1шт.

15

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

16

813077C1

HOSE ASSY.

HOSE ASSEMBLY - 3/8 ID x 55 inch

1шт.

17

ZA502058

UNION

RESTRICTOR ASSEMBLY - 3/4-16 flared x 3/4-16 inch O-ring boss

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

126665C2

GROMMET

- protective

2шт.

22

299566C1

CLAMP

- tube

5шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

5шт.

473371R1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

5шт.

23

299404C1

CLAMP

- tube

1шт.

473371R1

FLANGE NUT

NUT - hex flange lock, 3/8 inch NC

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
