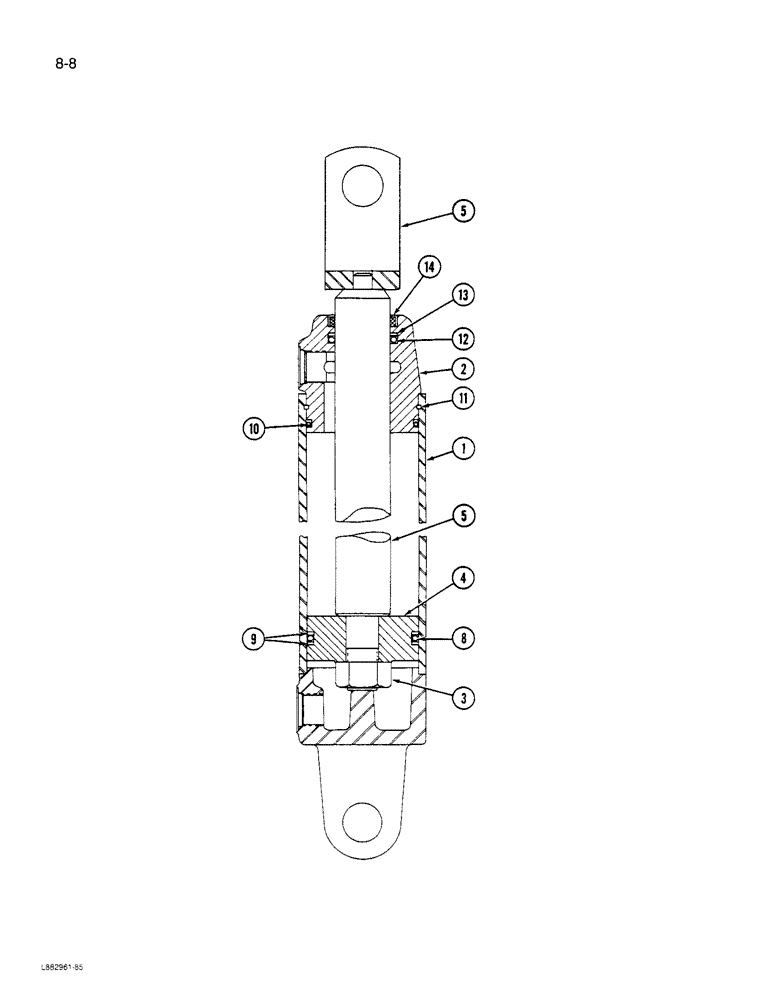

Запчасти Case IH 1190 (8-08) - TONGUE POSITIONING HYDRAULIC CYLINDER, 1190 MOWER (07) - HYDRAULICS

381854R94

CYLINDER

ASSEMBLY - tongue positioning, 3 bore x 8 inch stroke (Order 1272146C91)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

2

381805R2

HEAD

- front

1шт.

3

385020R1

NUT

- hex lock, 3/4 inch NF

1шт.

4

381870R1

PISTON

- cylinder

1шт.

5

73763C1

ROD ASSY.

ROD ASSEMBLY - piston, with clevis

1шт.

386687R93

SEAL KIT

- seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 ID x 3/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 2-3/4 ID x 1/8 inch

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

580714R1

HEADED PIN,1" x 2 3/4"

PIN - headed, 1 x 2-3/4 inch

2шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

2шт.
