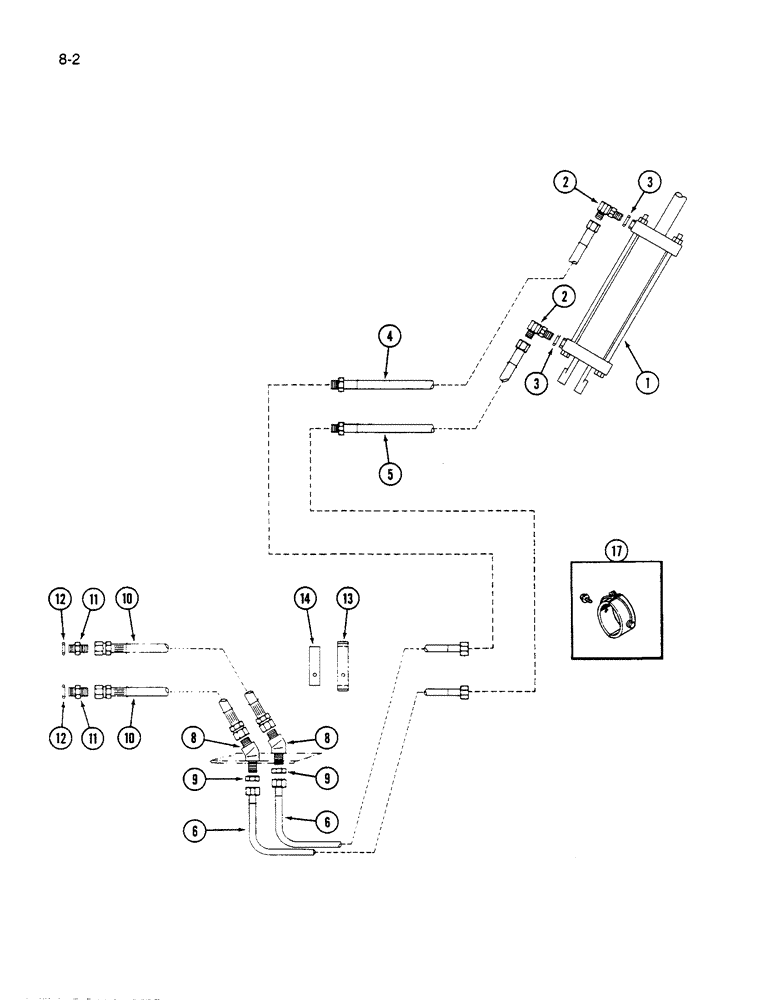

Запчасти Case IH 1190 (8-02) - TONGUE POSITIONING HYDRAULIC SYSTEM, 1190 MOWER CONDITIONER (07) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - tongue positioning (See Pages 8-7 and 8-9)

1шт.

2

935036R91

ELBOW

- 90 degree adjustable, 9/16-18 flared x 3/4-16 inch O-ring boss (Used with 1272146C91 cylinder)

2шт.

2

671796R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 9/16-18 flared x 7/8-14 inch O-ring boss (Used with 381854R94 cylinder)

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Used with 935036R91 elbow

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used with 671796R1 elbow

2шт.

4

673421R1

HOSE

ASSEMBLY - 3/8 ID x 29-1/2 inch

1шт.

5

673581R1

HOSE

ASSEMBLY - 3/8 ID x 18 inch (Replaces 135149C1)

1шт.

6

112041C1

HYD TUBE

TUBE ASSEMBLY - hydraulic, 3/8 inch OD

2шт.

8

208702C1

ELBOW

ASSEMBLY - bulkhead, 45 degree, 9/16-18 inch flared

2шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - bulkhead hex lock, 9/16-18 inch

1шт.

10

813077C1

HOSE ASSY.

HOSE ASSEMBLY - 3/8 ID x 55 inch

2шт.

11

127938C1

UNION

RESTRICTOR ASSEMBLY - 3/4-16 flared x 7/8-14 inch O-ring boss

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

13

112043C1

CLAMP

- tube

2шт.

14

116572C1

STRIP

- cushion

2шт.

17

643260R91

PACKAGE

COLLAR ASSEMBLY - stop, hydraulic cylinder (See Note)

1шт.
