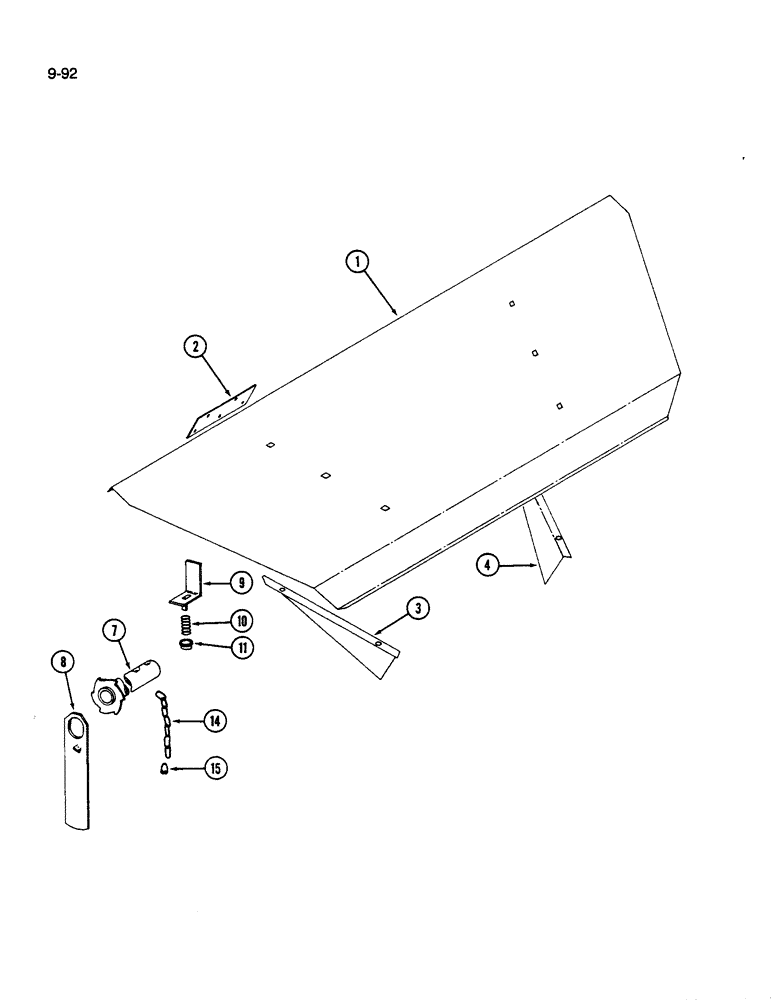

Запчасти Case IH 1190 (9-092) - SWATH BAFFLE, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

134996C2

BAFFLE - swath (7 foot 1190)

1шт.

1

134993C2

BAFFLE

- swath (9 foot 1190)

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

1шт.

2

143835C1

HINGE

- rubber

3шт.

3

134994C1

SUPPORT

- guide vane, left

1шт.

4

134995C1

SUPPORT

- guide vane, right

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

7

135004C1

CRANK,1311.5 mm Length

TUBE - baffle lift (7 foot 1190)

1шт.

7

135001C1

TUBE,1761.5 mm Length

- baffle lift (9 foot 1190)

1шт.

8

135092C1

HANDLE

- ratchet

1шт.

9

135002C1

SUPPORT

LATCH - ratchet

1шт.

21290R1

WASHER

- flat, 1-11/32 x 2 x 3/64 inch

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

10

542571R1

SPRING

- compression

1шт.

11

542572R1

WASHER

- spring backup

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

1шт.

14

126516C1

CHAIN (AG)

CHAIN - baffle lift

2шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

2шт.

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

2шт.

15

472695R1

LINK

- chain repair

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

- cotter, 3/16 x 2-1/4 inch

2шт.
