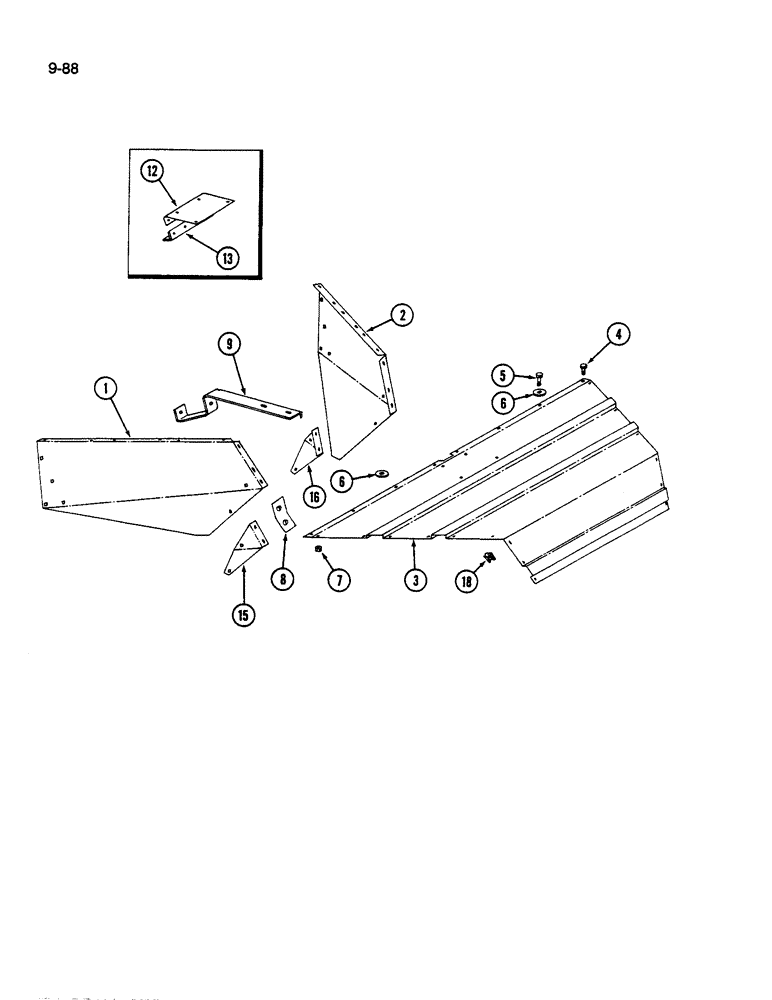

Запчасти Case IH 1190 (9-088) - WINDROW SHEETS, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

112178C2

PANEL

- hood, left side (7 foot 1190)

1шт.

1

112160C2

PANEL

- hood, left side (9 foot 1190)

1шт.

2

112179C2

PANEL

- hood, right side (7 foot 1190)

1шт.

2

112161C2

PANEL

- hood, right side (9 foot 1190)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

3

112180C1

DEFLECTOR

- hood, top (7 foot 1190)

1шт.

3

112162C2

DEFLECTOR

- hood, top (9 foot 1190)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (9 foot 1190)

4шт.

4

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange lock, 3/8 NC x 3/4 inch

4шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

1шт.

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch (9 foot 1190)

2шт.

6

148068C1

RUBBER WASHER

- rubber (9 foot 1190)

2шт.

7

141217C1

NUT

- retainer, 3/8 inch NC

1шт.

8

1253590C1

SUPPORT

BRACKET - hood

2шт.

9

148038C1

BRACE

- hood (9 foot 1190)

2шт.

12

135046C1

SUPPORT - hood, center (9 foot 1190) (Prior to P.I.N. 103362)

1шт.

13

146328C1

ANGLE

- reinforcing (9 foot 1190) (Prior to P.I.N. 103362)

1шт.

15

1253614C1

SUPPORT

- hood corner, left (9 foot 1190) (Replaces 135097C1)

1шт.

16

1253615C1

SUPPORT

- hood corner, right (9 foot 1190) (Replaces 135098C1)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

18

398976R1

BRACKET

SOCKET - SMV emblem

1шт.
