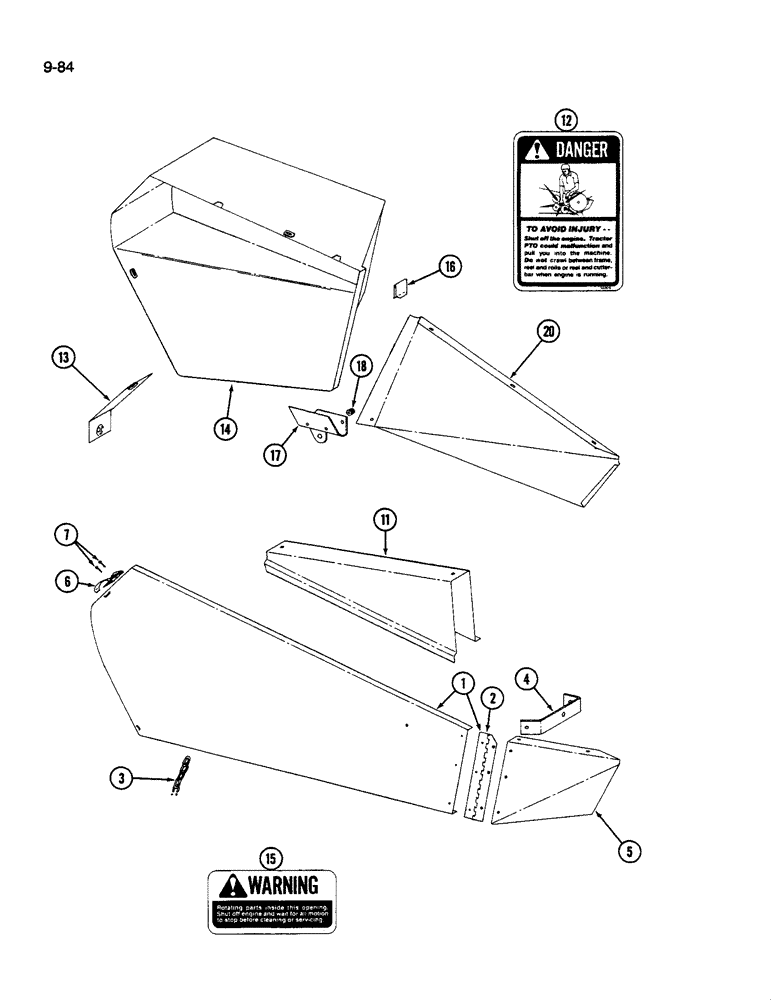

Запчасти Case IH 1190 (9-084) - SHIELDS AND DIVIDERS, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

119531C91

SHIELD

ASSEMBLY - right side

1шт.

2

119529C2

HINGE

- shield, right side

1шт.

3

126516C1

CHAIN (AG)

CHAIN - shield

1шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

23794R1

SCREW

- hex head, No. 12-24 x 5/8 inch

1шт.

118874

WASHER

- lock, No. 12

1шт.

225-14112

NUT,#12-24

- hex, No. 12-24

1шт.

22317R1

WASHER

- flat, 7/32 x 3/4 x 3/64 inch

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

4

119533C1

SUPPORT

BRACKET - divider

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

5

112171C1

DIVIDER

- right side

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head lock, 3/8 NC x 3/4 inch

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch N/C

5шт.

6

168481C1

LATCH ASSY.

LATCH - shield

4шт.

7

23794R1

SCREW

- hex head, No. 12-24 x 5/8 inch

8шт.

225-14112

NUT,#12-24

- hex, No. 12-24

8шт.

121744

ANGLE

Washer, Lock, #12

8шт.

11

135065C92

SHIELD

ASSEMBLY - pulley, with decal

1шт.

12

REF

INSTRUCTION

DECAL - danger, to avoid injury shut off engine (Right side) (See Figure 9-98)

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

3шт.

69347C1

NUT

- retainer, 5/16 inch NC

3шт.

13

126635C2

COVER

- gearbox

1шт.

104899C1

NUT

- retainer, 5/16 inch NC

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

2шт.

14

126724C91

SHIELD

ASSEMBLY - left side, with decal

1шт.

15

REF

INSTRUCTION

DECAL - warning, rotating parts inside this opening (See Figure 9-98)

1шт.

16

ZA502169

CLIP

- shield wear

3шт.

17

126783C1

SUPPORT

- left divider and shield

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT - hex, 1/2 NC x 3/4 inch

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

18

148068C1

RUBBER WASHER

GROMMET - rubber

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

20

119564C2

DIVIDER

- left side

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex flange lock, 5/16 NC x 1/2 inch

3шт.

69347C1

NUT

- retainer, 5/16 inch NC

3шт.

284364C91

KIT

- repair, fiberglass (For repairing shield 126724C91)

1шт.
