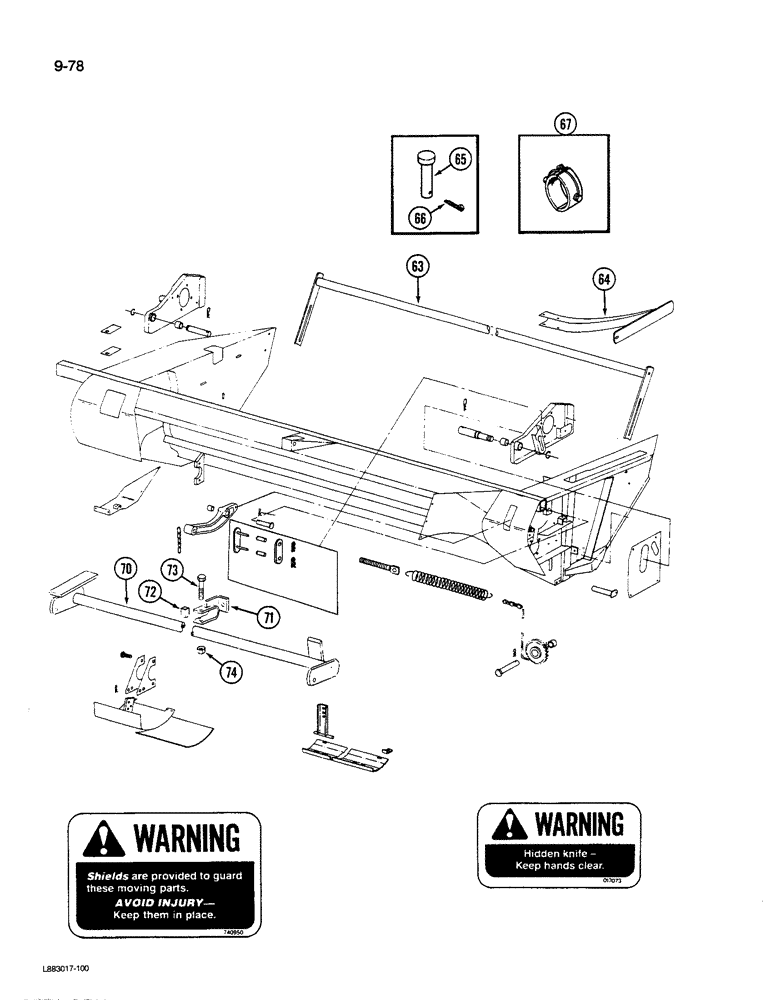

Запчасти Case IH 1190 (9-078) - HEADER FRAME, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

63

112035C1

TUBE,2133.6 mm Length

BAR - pushover (7 foot 1190)

1шт.

63

112034C1

TUBE

BAR - pushover (9 foot 1190)

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

64

112167C1

DIVIDER

- tall crop

1шт.

441549R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/2 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - hex washer head tapping, 3/8 NC x 3/4 inch

1шт.

65

REF

INSTRUCTION

PIN - headed, 1/2 x 1-7/8 inch

1шт.

Required for limiting travel of rope-controlled tongue positioner when using left tall crop divider - see Figure 9-60.

1шт.

66

REF

INSTRUCTION

PIN - cotter, 3/16 x 1 inch

1шт.

Required for limiting travel of rope-controlled tongue positioner when using left tall crop divider - see Figure 9-60.

1шт.

67

REF

INSTRUCTION

COLLAR ASSEMBLY - stop, hydraulic cylinder

1шт.

Required for limiting travel of hydraulic tongue positioner when using left tall crop divider - see Figure 8-2.

1шт.

126615C91

TUBE ATTACHMENT - torque (7 foot 1190) (Machinery item, order 0222139)

1шт.

126616C91

TUBE ATTACHMENT - torque (9 foot 1190) (Machinery item, order 0222140)

1шт.

70

112056C1

TUBE

BAR - lockout, lateral float (7 foot 1190)

1шт.

70

112057C1

TUBE

BAR - lockout, lateral float (9 foot 1190)

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex lock, 1/2 NC x 1 inch, Grade 8

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

71

126614C1

BRACKET

- lockout bar

1шт.

72

112080C1

TUBE

SPACER - square

1шт.

73

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

74

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange lock, 1/2 NC x 1 inch

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.
