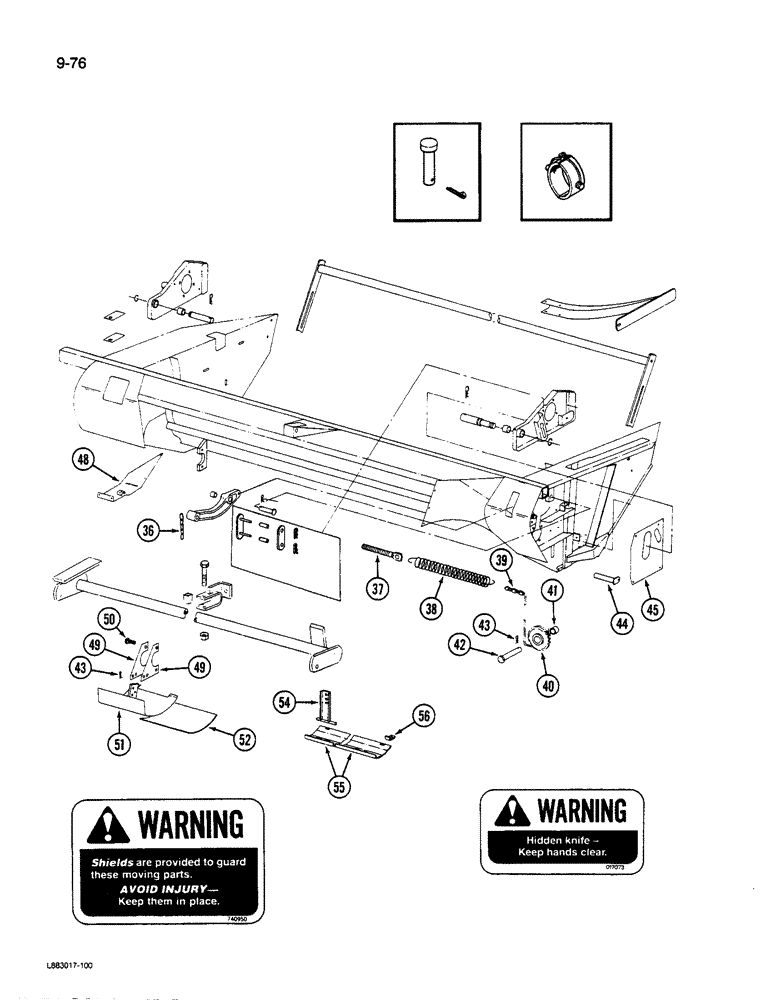

Запчасти Case IH 1190 (9-076) - HEADER FRAME, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

36

135013C1

CHAIN (AG)

CHAIN - roll opening

2шт.

28022R1

PIN

- headed, 1/2 x 1-1/16 inch

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

37

101972C1

BOLT (SPREADER)

EYEBOLT - 5/8 inch NC

2шт.

129-107

NUT,5/8"-11, G5

4шт.

38

101978C2

VALVE SPRING

SPRING - roll tension

2шт.

39

NSS

NOT SOLD SEPARAT

CHAIN - roller (Use 19 links from bulk chain 569089R91)

2шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot roll

1шт.

22900R1

HEADED PIN

PIN - headed, 3/8 x 1-1/4 inch

2шт.

586591R1

COTTER PIN

PIN - cotter, hair type, 1/8 inch diameter

2шт.

40

148098C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - tension chain

2шт.

41

660706C1

BUSHING

- 3/4 ID x 7/8 OD x 1-1/4 inch

2шт.

42

126589C1

PIN

- round head square neck, 19 x 55 mm

2шт.

43

148155C1

PIN

- cotter, hair type

4шт.

44

146363C1

PIN ASSY.

PIN ASSEMBLY - lower link (Replaces 126547C1)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

2шт.

PO10780

SPACER,3/4" Pipe x 7/16"

- pipe, 13/16 ID x 7/16 inch

2шт.

45

101920C1

PLATE

- side sheet cover

1шт.

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1/2 inch

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

48

102099C1

SHOE

- knife drive

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

49

112071C1

SUPPORT

- gauge shoe

4шт.

50

135015C2

CARRIAGE BOLT,Spcl, Short Sq Nk, 1/2" - 13 x 2.25", Full Thd

BOLT - round head short square neck, 1/2 NC x 2-1/4 inch

4шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

4шт.

51

101981C1

SHOE

ASSEMBLY - gauge

2шт.

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch

2шт.

52

542718R92

STRIPPER PACKAGE

KIT - shoe repair (Repairs 2 gauge shoe assemblies)

1шт.

54

102007C1

CHANNEL

- mounting, stone shoe

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

55

102010C2

SHOE

- stone

1шт.

56

143819C1

CLIP,12.6mm ID, 11.9mm Bolt Hole, J Type

- shoe, 1-1/2 inch wide (For 7 foot 1190, P.I.N. 1356 and after)(For 9 foot 1190, P.I.N. 4760 and after)

3шт.

56

135037C1

CLIP

- stone shoe, 1 inch wide (For 7 foot 1190, prior to P.I.N. 1356)(For 9 foot 1190, prior to P.I.N. 4760)

3шт.

632593R1

CARRIAGE BOLT,Round, 7/16" - 14 x 1 3/4", Grade 5

BOLT - round head square neck, 7/16 NC x 1-3/4 inch

3шт.
