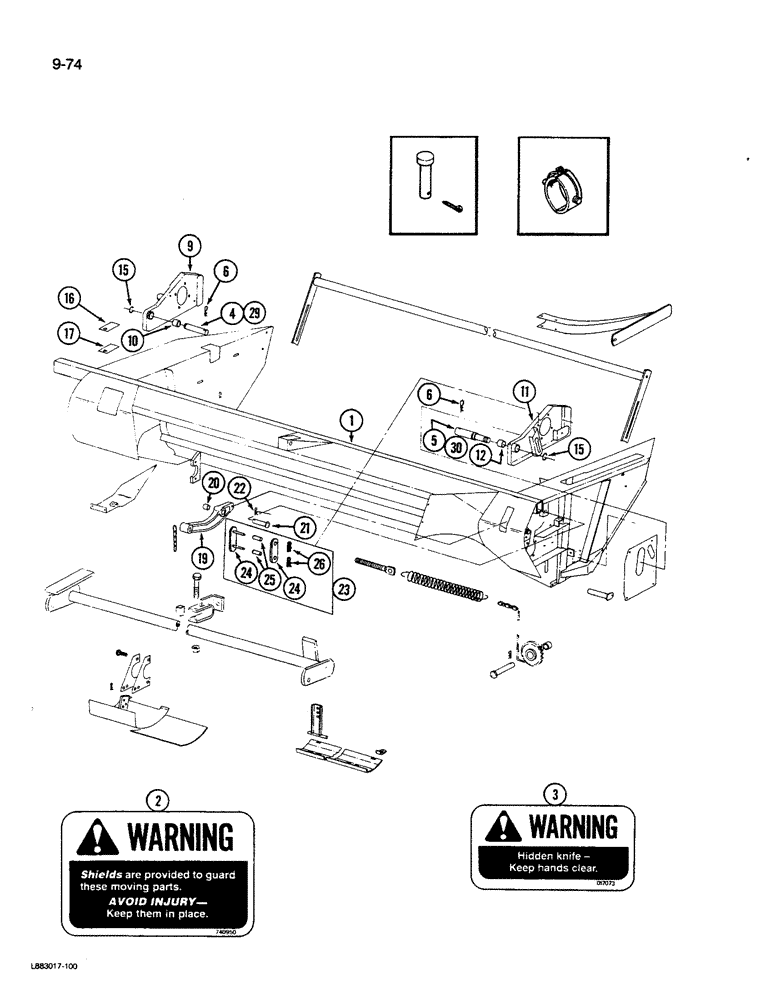

Запчасти Case IH 1190 (9-074) - HEADER FRAME, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

135066C93

HEAT-EXCHANGER

FRAME ASSEMBLY - header, with decals (7 foot 1190)

1шт.

1

135067C93

HEAT-EXCHANGER

FRAME ASSEMBLY - header, with decals (9 foot 1190)

1шт.

2

REF

INSTRUCTION

DECAL - warning, keep shields in place (See Figure 9-98)

1шт.

3

REF

INSTRUCTION

DECAL - warning, hidden knife - keep hands clear (See Figure 9-98)

1шт.

4

126577C2

SHAFT

- pivot, left

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

5

126575C2

SHAFT

- pivot, right

1шт.

Early model shaft was welded to frame (NSS)

1шт.

6

473865R91

LINCH PIN

PIN ASSEMBLY - cotter, hair type

2шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

126788C2

SHEET

- inner gatherer, left

1шт.

126789C2

SHEET

- inner gatherer, right

1шт.

9

1265783C91

PLATE

ASSEMBLY - roll support, left (Replaces 101921C2)

1шт.

When replacing 101921C2, 101922C2 or 126507C2, also order connecting link assembly 1253891C2

1шт.

10

482141R1

BEARING

BUSHING - 1 ID x 1-1/4 OD x 1-1/2 inch

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch taper drive thread

1шт.

11

1265785C91

LARGE PLATE

PLATE ASSEMBLY - roll support, right (Replaces 101922C2)

1шт.

When replacing 101921C2, 101922C2 or 126507C2, also order connecting link assembly 1253891C2

1шт.

12

482141R1

BEARING

BUSHING - 1 ID x 1-1/4 OD x 1-1/2 inch

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 45 degree, 1/4 inch taper drive thread

1шт.

15

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

2шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

16

148101C1

SHIM

- roll gap, 0.060 inch

4шт.

17

101931C1

BAR

SHIM - roll gap, 0.105 inch

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

19

1265781C91

ARM ASSY.

ARM ASSEMBLY - roll opening (Replaces 126507C2)

2шт.

When replacing 101921C2, 101922C2 or 126507C2, also order connecting link assembly 1253891C2

1шт.

20

324652R1

BUSHING

- 3/4 ID x 7/8 OD x 1-1/2 inch

1шт.

21

116501C2

PIN

- round head square neck, 19 x 68 mm

2шт.

21757R1

WASHER

- flat, 25/32 x 1-1/4 x 1/32 inch

1шт.

22

148155C1

PIN

- cotter, hair type

2шт.

23

1253891C2

KIT

LINK ASSEMBLY - connecting

2шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

24

NSS

NOT SOLD SEPARAT

LINK - connecting

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - connecting link

2шт.

26

75423C1

PIN

- cotter, hair type

2шт.

29

1265791C92

KIT

- pivot shaft, left, Includes Refs. 4, 6, 10, 15, 23, 30A, 30C, 30D, 30E and 30F

1шт.

For 7 foot 1190, prior to P.I.N. 1156. For 9 foot 1190, prior to P.I.N. 102671.

1шт.

30

1265792C92

PACKAGE

KIT - pivot shaft, right, Includes Refs. 5, 6, 12, 15, 23, 30B, 30C, 30D, 30E and 30F

1шт.

For 7 foot 1190, prior to P.I.N. 1156 and for 9 foot 1190, prior to P.I.N. 102671, when replacing 101921C2, 101922C2, or 126507C2, order connecting link assembly 1253891C2.

1шт.

NSS

NOT SOLD SEPARAT

PLATE - gatherer sheet, left

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

NSS

NOT SOLD SEPARAT

PLATE - gatherer sheet, right

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

NSS

NOT SOLD SEPARAT

TUBE - shaft

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

NSS

NOT SOLD SEPARAT

PLATE - roll arm support

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

NSS

NOT SOLD SEPARAT

PLATE - repair

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

Part of pivot shaft, left kit P/N 1265791C92

1шт.

Part of pivot shaft, right kit P/N 1265792C92

1шт.
