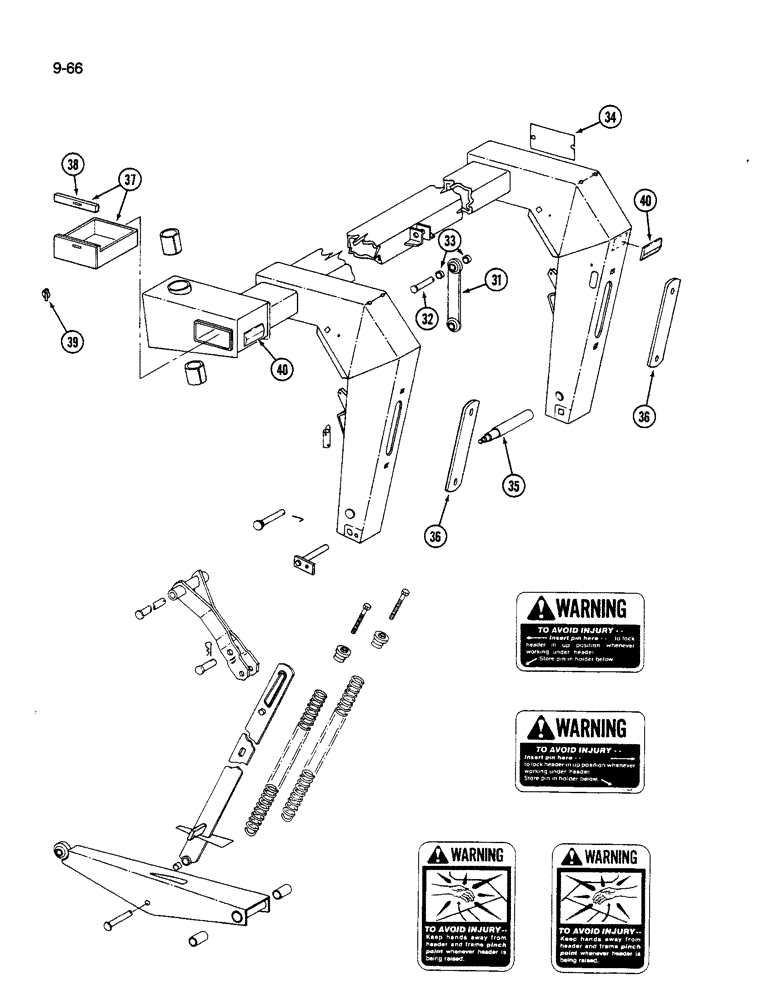

Запчасти Case IH 1190 (9-066) - CARRIER FRAME, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

31

126630C2

LINK

- center

1шт.

32

112359C1

PIN

- round head square neck, 3/4 x 3-7/16 inch

2шт.

33

135018C1

SPACER

- center link

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

21757R1

WASHER

- flat, 25/32 x 1-1/4 x 1/32 inch

2шт.

34

112339C1

CAP

COVER - knife storage

1шт.

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

2шт.

35

135185C1

SPINDLE

- wheel

2шт.

Per notes from GPN: Service manual advises putting a collar over the weld on this spindle when replacing. No part # was ever set up for this collar. Mechanic / Customer expected to make on his own.

1шт.

36

148099C1

COVER

- frame leg

2шт.

1253582C1

NUT

- retaining, 3/8 inch NC

4шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

4шт.

37

112333C2

TERMINAL BOX

BOX ASSEMBLY - tool

1шт.

38

143878C1

GASKET

-tool box

1шт.

39

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter

1шт.

40

1284374C1

REFLECTOR,Reflector Red

- red

2шт.
