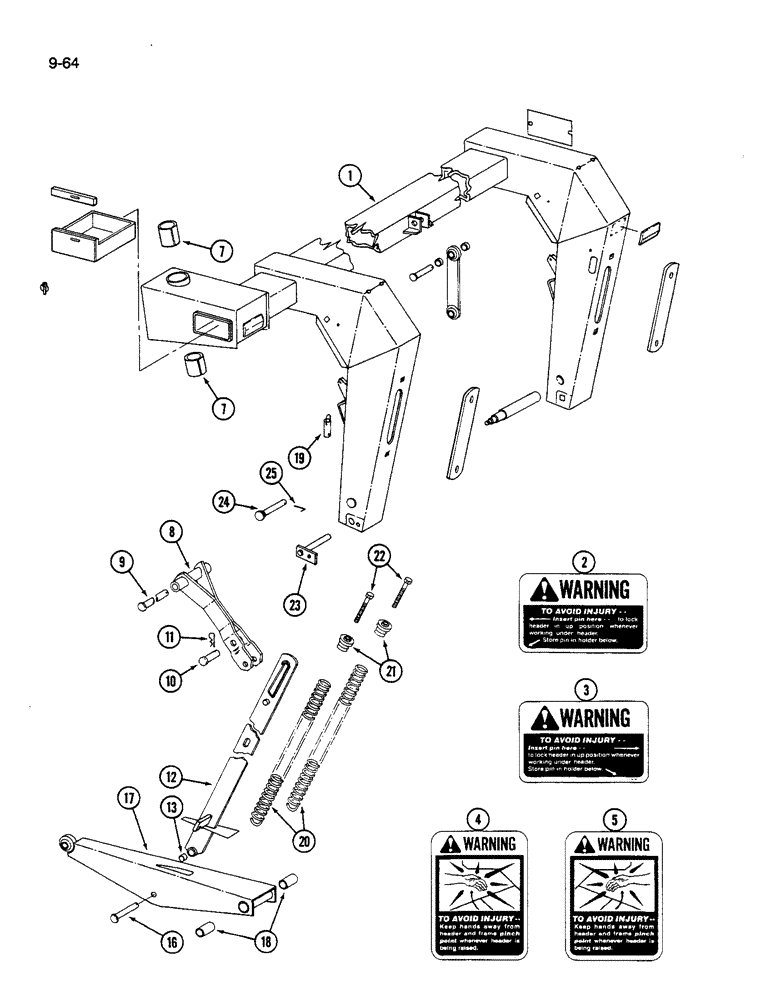

Запчасти Case IH 1190 (9-064) - CARRIER FRAME, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1253452C91

CARRIER

FRAME ASSEMBLY - carrier, with decals (7 foot 1190)

1шт.

1

1253453C91

CARRIER

FRAME ASSEMBLY - carrier, with decals (9 foot 1190)

1шт.

2

REF

INSTRUCTION

DECAL - warning, insert pin here (Left side) (See Figure 9-98)

1шт.

3

REF

INSTRUCTION

DECAL - warning, insert pin here (Right Side) (See Figure 9-98)

1шт.

4

REF

INSTRUCTION

DECAL - warning, frame pinch point (Left side) (See Figure 9-98)

1шт.

5

REF

INSTRUCTION

DECAL - warning, frame pinch point (Right side) (See Figure 9-98)

1шт.

REF

INSTRUCTION

DECAL - important, tire instructions (See Figure 9-98)

2шт.

7

102050C1

BUSHING

- tongue pivot

2шт.

8

ZA502864

ARM

- pivot, cylinder (Replaces 126787C1)

2шт.

9

101888C1

PIN

- round head square neck, 3/4 x 8-5/8 inch

2шт.

21757R1

WASHER

- flat, 25/32 x 1-1/4 x 1/32 inch

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

10

540851R1

HEADED PIN,1/2" x 1 7/8", G5

PIN - headed, 3/4 x 1-7/8 inch

2шт.

11

148155C1

PIN

- cotter, hair type

2шт.

12

112308C2

ARM

- lift

2шт.

13

289588R1

BUSHING

- bronze

2шт.

16

135196C1

PIN

- headed, 3/4 x 4-1/8 inch

2шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

17

ZA502737

ARM

ASSEMBLY - header, lower left (Shown) (Replaces 112023C1)

1шт.

17

ZA502738

ARM

ASSEMBLY - header, lower right (Replaces 112024C1)

1шт.

18

135224C1

BUSHING

- lower arm

2шт.

19

523642R11

PIN ASSY.

PIN - locking, 3/4 x 1-1/4 inch

2шт.

20

112084C2

VALVE SPRING

SPRING - float (Left side on 7 foot 1190, right side on 9 foot)

2шт.

20

112083C2

VALVE SPRING

SPRING - float (Right side on 7 foot 1190)

2шт.

20

112194C2

SPRING

- float (Left side on 9 foot 1190)

2шт.

21

466167R1

INSERT

PLUG - spring (Left side on 7 foot 1190, right side on 9 foot)

2шт.

21

126654C1

PLUG

- spring (Right side on 7 foot 1190)

2шт.

21

457528R1

PLUG

- spring (Left side on 9 foot 1190)

2шт.

22

540872R1

BOLT,5/8" - 11 x 14", Cl B-2

- hex, 5/8 NC x 14 inch

4шт.

21905R1

WASHER

- flat, 21/32 x 1-3/4 x 7/32 inch

4шт.

23

1253409C1

PIN ASSY.

PIN - header lift (For 7 foot 1190, P.I.N. 3176 and after) (For 9 foot 1190, P.I.N. 871 and after)

2шт.

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

112030C2

PIN

- round head square neck, 1 x 7-3/8 inch (For 7 foot 1190, prior to P.I.N. 3176)(For 9 foot 1190, prior to P.I.N. 871)

2шт.

21403R1

WASHER

- flat, 13/32 x 1 x 1/8 inch

2шт.

25

523116R1

ROD

PIN - pivot lock (For 7 foot 1190, prior to P.I.N. 3176)(For 9 foot 1190, prior to P.I.N. 871)

2шт.
