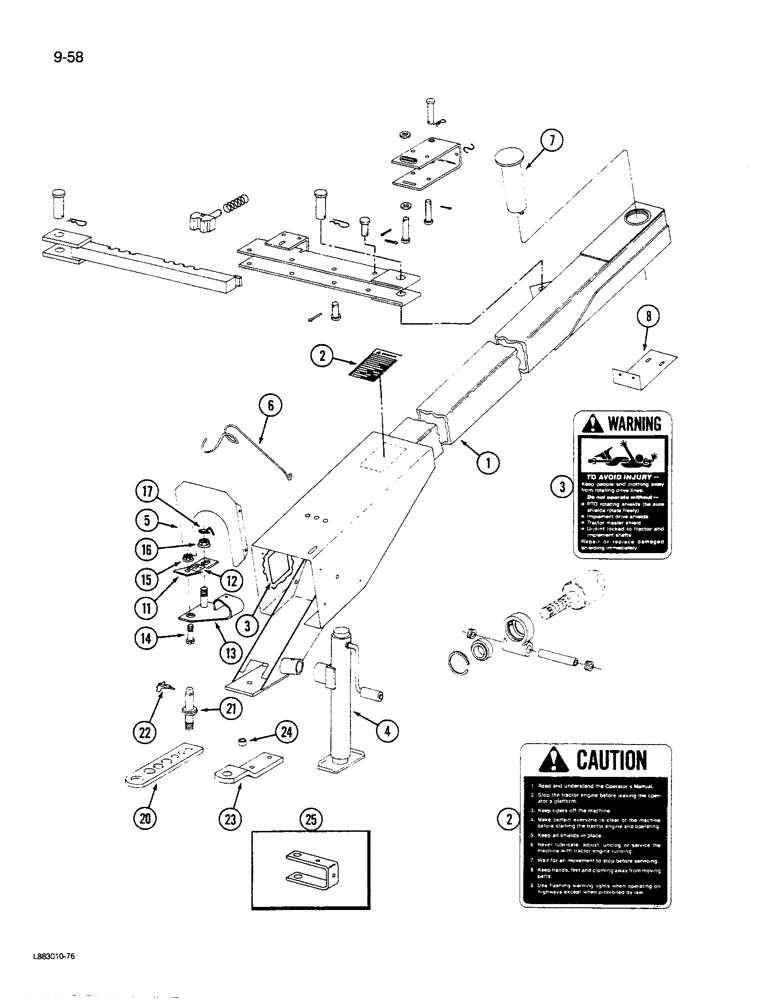

Запчасти Case IH 1190 (9-058) - HITCH EXTENSION, TONGUE, AND ROPE-CONTROLLED POSITIONER, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1253581C91

TOW BAR

TONGUE ASSEMBLY - with decals

1шт.

Ref 1 and 7 there is a bushing that is shown on pg 9-64, P/N 102050c1.

1шт.

2

REF

INSTRUCTION

DECAL - caution, rules for safe operation (See Figure 9-98)

1шт.

3

REF

INSTRUCTION

DECAL - warning, rotating drive lines (See Figure 9-98)

1шт.

4

119354C1

JACK

ASSEMBLY - side crank (Alternative part is 135061C91)

1шт.

4

135061C91

JACK

ASSEMBLY - side crank (Alternative part)

1шт.

5

102091C2

SUPPORT

SHIELD - U-joint

1шт.

806122C1

NUT

- grommet, plastic

4шт.

24200R1

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - hex head tapping, 1/4 x 3/4 inch

4шт.

6

126627C1

ROD

SUPPORT - hose

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

7

119322C1

TUBE

- tongue pivot

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

2шт.

8

102054C1

SUPPORT

- angle, pivot pin

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

200891C1

LOCK NUT

- hex flange lock, 3/8 inch NC

2шт.

148191C91

KIT

- hitch equalizer

1шт.

11

222605C92

BAR

ASSEMBLY - with decal

1шт.

12

REF

INSTRUCTION

DECAL - important, nut tightening instructions (See Figure 9-98)

1шт.

13

145950C1

SUPPORT

- safety chain

1шт.

14

131-629

NUT,U, #8A, 0.028" Thk

BOLT - hex, 5/8 NC x 3-3/4 inch

1шт.

15

60863C1

NUT

- hex flange lock, 5/8 inch NC

1шт.

16

148032C1

NUT,Flg, USR, 1"-8

- hex flange lock, 1 inch NC

1шт.

17

176868H1

PIN

- snap lock, with chain

1шт.

20

ZA104542

BAR

- hitch extension (Replaces 126728C2)

1шт.

131-601

BOLT - hex, 5/8 NC x 3 inch

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

21

472790R2

STUD

PIN - hitch extension

1шт.

26076R1

LOCK NUT,1 1/8"-12, GB

NUT - hex lock, 1-1/8 inch NF

1шт.

21214R1

WASHER

- flat, 1-5/32 x 2 x 7/64 inch

1шт.

22

119522C1

PIN

- snap lock, with chain

1шт.

23

73964C1

SUPPORT

- hitch bar

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

1шт.

131-604

NUT

BOLT - hex, 5/8 NC x 2 inch

1шт.

195-2203

WASHER,21/32" x 2" x .238"

- flat, 21/32 x 2 x 5/32 inch

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

24

662888R1

SPACER

- 3/4 ID x 9/16 inch

1шт.

25

135103C1

YOKE

CLEVIS - chain support (See Note)

1шт.

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

Hex, 1-8 x 4", G5

1шт.

24567R1

LOCK NUT,1"-8, GB

NUT - hex lock, 1 inch NC

1шт.
