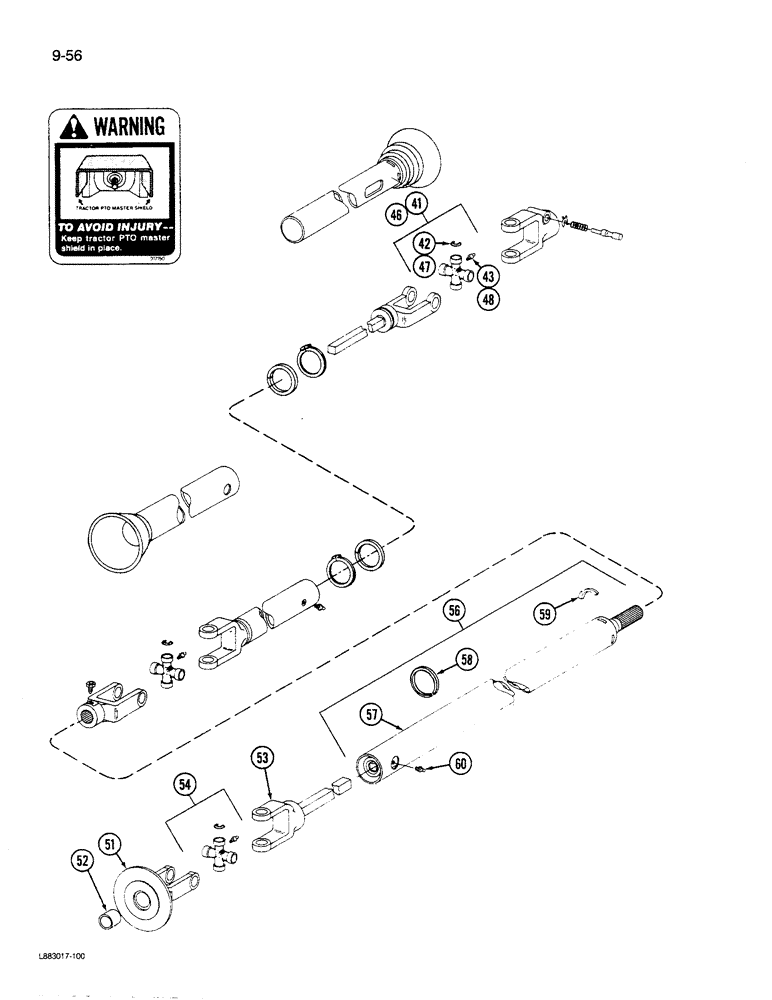

Запчасти Case IH 1190 (9-056) - DRIVE SHAFT, 1190 MOWER CONDITIONER, WEASLER (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

JOINT ASSEMBLY - drive shaft, tractor end (Continued)

1шт.

41

667558R91

KIT

- cross and bearing (Alternative part is Ref. 46)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

42

667561R1

RING

- retaining, internal

4шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

46

200464C91

PACKAGE

KIT - cross and bearing (Alternative part is Ref. 41)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

47

576420R1

RING

- retaining, internal

4шт.

48

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

51

102097C91

FORK

YOKE ASSEMBLY - flanged

1шт.

52

460538R1

BUSHING

- yoke

1шт.

53

119420C1

FORK

YOKE - with bar

1шт.

54

667558R91

KIT

- cross and bearing (See Ref. 41 for parts) (Alternative part is 200464C91)

1шт.

54

200464C91

PACKAGE

KIT - cross and bearing (See Ref. 46 for parts) (Alternative part is 667558R91)

1шт.

56

ZA502083

SHAFT

ASSEMBLY - drive

1шт.

57

1336831C1

TUBE

SHIELD - shaft

1шт.

58

135994C1

RING

BEARING - shield

1шт.

59

135992C2

BEARING COVER

- segment, shield

4шт.

60

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.
