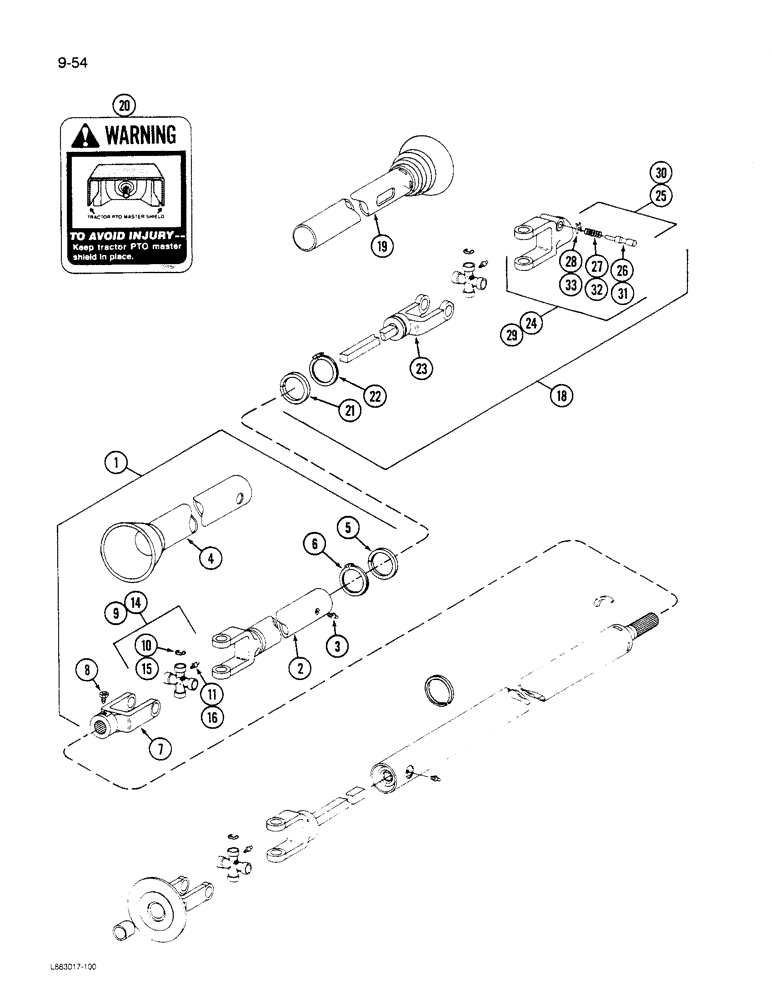

Запчасти Case IH 1190 (9-054) - DRIVE SHAFT, 1190 MOWER CONDITIONER, WEASLER (03) - CHASSIS/MOUNTED EQUIPMENT

1

ZA502081

JOINT

ASSEMBLY - drive shaft, implement end

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY - sleeve (Order ZA502081)

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

2шт.

4

96336C1

SHIELD

- inner

1шт.

5

96348C1

NYLON BEARING

- nylon

1шт.

6

597559R1

RETAINER

RING - retaining

1шт.

7

460620R1

YOKE

- splined (Alternative part is 480755R1)

1шт.

7

480755R1

YOKE

- splined (Alternative part is 460620R1)

1шт.

8

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW - set, square head cone point, 1/2 NF x 1 inch

1шт.

124934

HOSE

- hex jam, 1/2 inch NF

1шт.

9

667558R91

KIT

- cross and bearing (Alternative part is Ref. 14)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

10

667561R1

RING

- retaining, internal

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

14

200464C91

PACKAGE

KIT - cross and bearing (Alternative part is Ref. 9)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

15

576420R1

RING

- retaining, internal

4шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

18

ZA502082

JOINT

ASSEMBLY - drive shaft, tractor end

1шт.

19

96334C1

SHIELD

ASSEMBLY - outer, with decals

1шт.

20

REF

INSTRUCTION

DECAL - warning, tractor PTO master shield (See Figure 9-98)

1шт.

REF

INSTRUCTION

DECAL - adjust drawbar to align hitch pin (See Figure 9-98)

1шт.

21

96348C1

NYLON BEARING

- nylon

1шт.

22

597559R1

RETAINER

RING - retaining

1шт.

23

NSS

NOT SOLD SEPARAT

YOKE - with bar (Order ZA502082)

1шт.

24

568100R93

FORK

YOKE ASSEMBLY - quick disconnect, 540 rpm PTO (Alternative part is 668335R11 or Ref. 29)

1шт.

24

668335R11

FORK

YOKE ASSEMBLY - quick disconnect, 540 rpm PTO (Alternative part is 568100R93 or Ref. 29)

1шт.

25

455346R21

PIN

ASSEMBLY - locking

1шт.

26

NSS

NOT SOLD SEPARAT

PIN - locking

1шт.

27

455347R1

VALVE SPRING

SPRING - compression

1шт.

28

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin

1шт.

29

472857R91

YOKE

ASSEMBLY - quick disconnect, 1000 rpm PTO, (Alternative part is Ref. 24)

1шт.

30

631976R91

PIN

ASSEMBLY - locking

1шт.

31

NSS

NOT SOLD SEPARAT

PIN - locking

1шт.

32

455347R1

VALVE SPRING

SPRING - compression

1шт.

33

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin

1шт.
