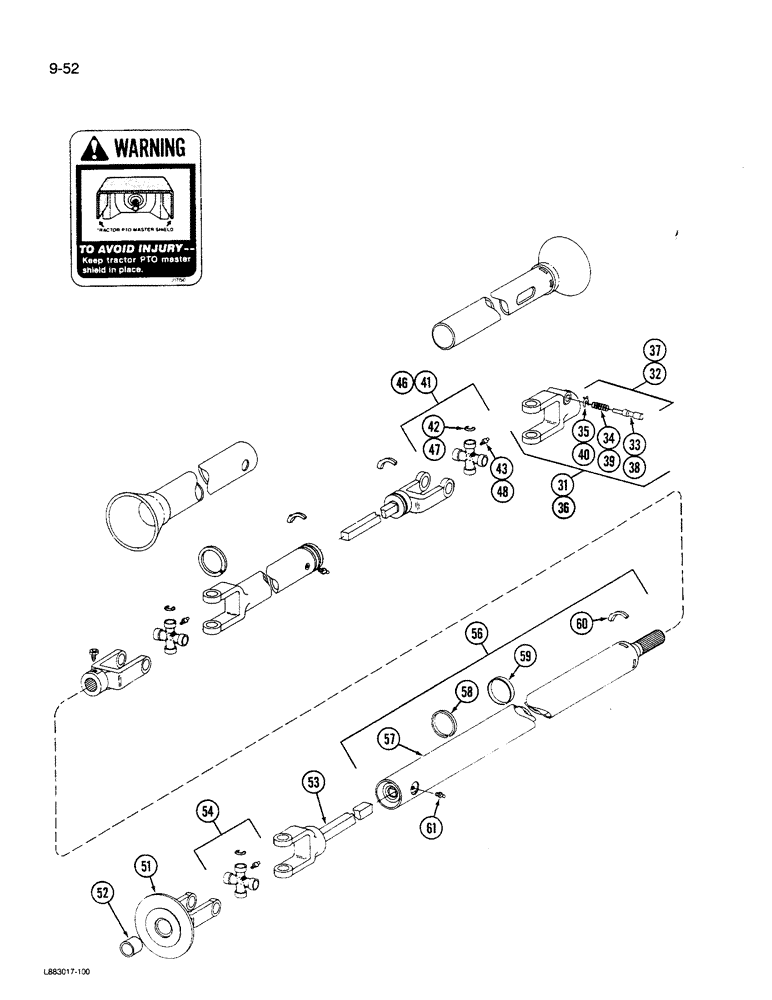

Запчасти Case IH 1190 (9-052) - DRIVE SHAFT, 1190 MOWER CONDITIONER, HAYES-DANA, ROCKWELL AND REXNORD (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

JOINT ASSEMBLY - drive shaft, tractor end (Continued)

1шт.

31

568100R93

FORK

YOKE ASSEMBLY - quick disconnect, 540 rpm PTO (Alternative part is 668335R11 or Ref. 36)

1шт.

31

668335R11

FORK

YOKE ASSEMBLY - quick disconnect, 540 rpm PTO (Alternative part is 568100R93 or Ref. 36)

1шт.

32

455346R21

PIN

ASSEMBLY - locking

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - locking

1шт.

34

455347R1

VALVE SPRING

SPRING - compression

1шт.

35

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin

1шт.

36

472857R91

YOKE

ASSEMBLY - quick disconnect, 1000 rpm PTO (Alternative part is Ref. 31)

1шт.

37

631976R91

PIN

ASSEMBLY - locking

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - locking

1шт.

39

455347R1

VALVE SPRING

SPRING - compression

1шт.

40

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking pin

1шт.

41

667558R91

KIT

- cross and bearing (Alternative part is Ref. 46)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

42

667561R1

RING

- retaining, internal

4шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

46

200464C91

PACKAGE

KIT - cross and bearing (Alternative part is Ref. 41)

1шт.

NSS

NOT SOLD SEPARAT

CROSS - drive shaft

1шт.

NSS

NOT SOLD SEPARAT

BEARING ASSEMBLY - needle

4шт.

47

576420R1

RING

- retaining, internal

4шт.

48

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 inch PT

1шт.

51

102097C91

FORK

YOKE ASSEMBLY - flanged

1шт.

52

460538R1

BUSHING

- yoke

1шт.

53

119420C1

FORK

YOKE - with bar

1шт.

54

667558R91

KIT

- cross and bearing (See Ref. 41 for parts) (Alternative part is 200464C91)

1шт.

54

200464C91

PACKAGE

KIT - cross and bearing (See Ref. 46 for parts) (Alternative part is 667558R91)

1шт.

56

102060C91

SHAFT

ASSEMBLY - drive

1шт.

57

119376C1

TUBE,3.25" ID, 86.62" Length

SHIELD - shaft

1шт.

58

135994C1

RING

BEARING - shield

1шт.

59

135095C1

BUSHING

- shield

1шт.

60

135992C2

BEARING COVER

- segment, shield

4шт.

61

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.
