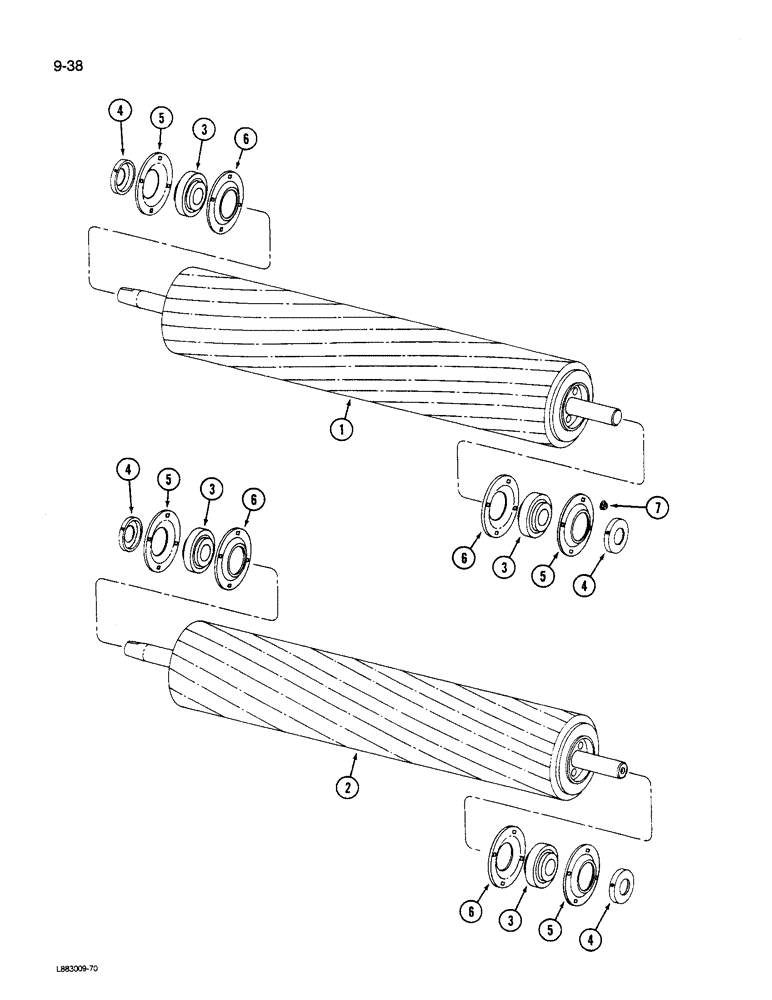

Запчасти Case IH 1190 (9-038) - CONDITIONING ROLLS, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

102017C1

ROLL

- upper intermeshing (7 foot 1190)

1шт.

1

102005C1

ROLL

- upper intermeshing (9 foot 1190)

1шт.

2

102016C1

ROLL

- lower intermeshing (7 foot 1190)

1шт.

2

102004C1

ROLL

- lower intermeshing (9 foot 1190)

1шт.

3

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING ASSEMBLY - ball

4шт.

4

455112R11

COLLAR

- locking, bearing, with set screw

4шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

5

488454R1

FLANGED BEARING

- bearing, with grease fitting

4шт.

6

488455R1

FLANGE

- bearing

4шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

16шт.

7

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

16шт.
