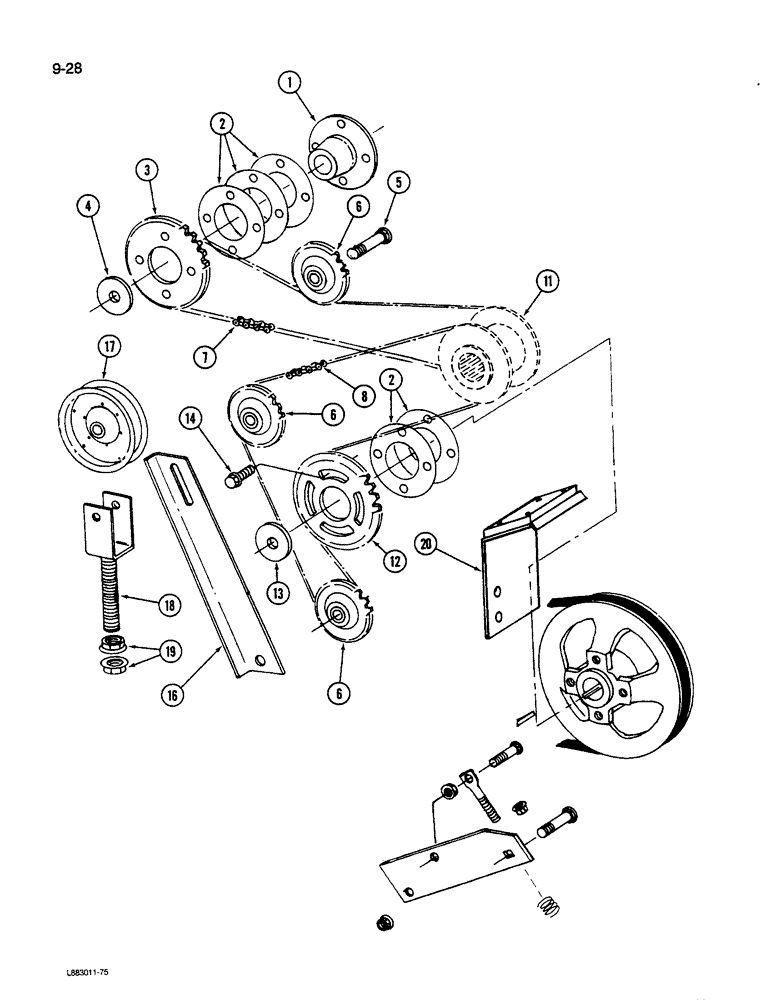

Запчасти Case IH 1190 (9-028) - KNIFE AND ROLL DRIVE, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

126715C1

HUB

- upper roll

1шт.

2

119368C1

RETAINER

SHIM - sprocket

1шт.

3

126725C1

DRIVE SPROCKET

SPROCKET - upper roll

1шт.

4

101936C2

WASHER

- flat, hardened

1шт.

26316R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex lock, 1/2 NC x 1 inch, Grade 8

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

5

135015C2

CARRIAGE BOLT,Spcl, Short Sq Nk, 1/2" - 13 x 2.25", Full Thd

BOLT - round head short square neck, 1/2 NC x 2-1/4 inch

2шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

1шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

3шт.

6

126758C2

PINION

SPROCKET - chain idler, 17 tooth

3шт.

7

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - upper roll drive (Use 61 links from bulk chain 1791D, and 1 connecting link 1310D)

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - lower roll drive (Use 97 links from bulk chain 1791D, and 1 connecting link 1310D)

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - 10 foot roll

1шт.

1310D

LINK

- chain, connecting

1шт.

11

REF

INSTRUCTION

SPROCKET - roll drive (See Figure 9-48)

1шт.

12

101898C2

SPROCKET ASSY.

SPROCKET - lower roll

1шт.

13

101936C2

WASHER

- flat, hardened

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex lock, 1/2 NC x 1-1/4 inch, Grade 8

1шт.

14

540858R1

BOLT,Hex Serr, 1/2" - 13 x 1 1/2"

- hex flange lock, 1/2 NC x 1-1/2 inch

4шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

4шт.

16

148280C1

BRACKET

- idler

1шт.

Part of roll timing kit P/N 1253469C92

1шт.

17

559292R93

PULLEY

- idler (Alternative part is 594816R92)

1шт.

17

594816R92

PULLEY - idler (Alternative part is 559292R93)

1шт.

18

126581C1

FORK

CLEVIS - pulley

1шт.

19

673585R1

NUT,Flg, 1/2"-13, G5

- hex large flange, 1/2 inch NC

2шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - round head square neck, 1/2 NC x 3 inch

1шт.

23042R1

WASHER

- flat, 17/32 x 1 x 1/32 inch

2шт.

607895R1

WASHER

- flat, 17/32 x 1 x 7/64 inch

6шт.

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

20

1253357C1

GUIDE

- chain

1шт.

Part of roll timing kit P/N 1253469C92

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

1253469C92

LINK

KIT - roll timing, Includes Refs. 16, 20, 473197R1, 486180R1, 113-206 and 482256R1

1шт.

473197R1

FLANGE NUT

- hex flange lock, 1/2 inch NC

1шт.

Part of roll timing kit P/N 1253469C92

1шт.

486180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 2-1/4 inch

1шт.

Part of roll timing kit P/N 1253469C92

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

Part of roll timing kit P/N 1253469C92

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

Part of roll timing kit P/N 1253469C92

1шт.
