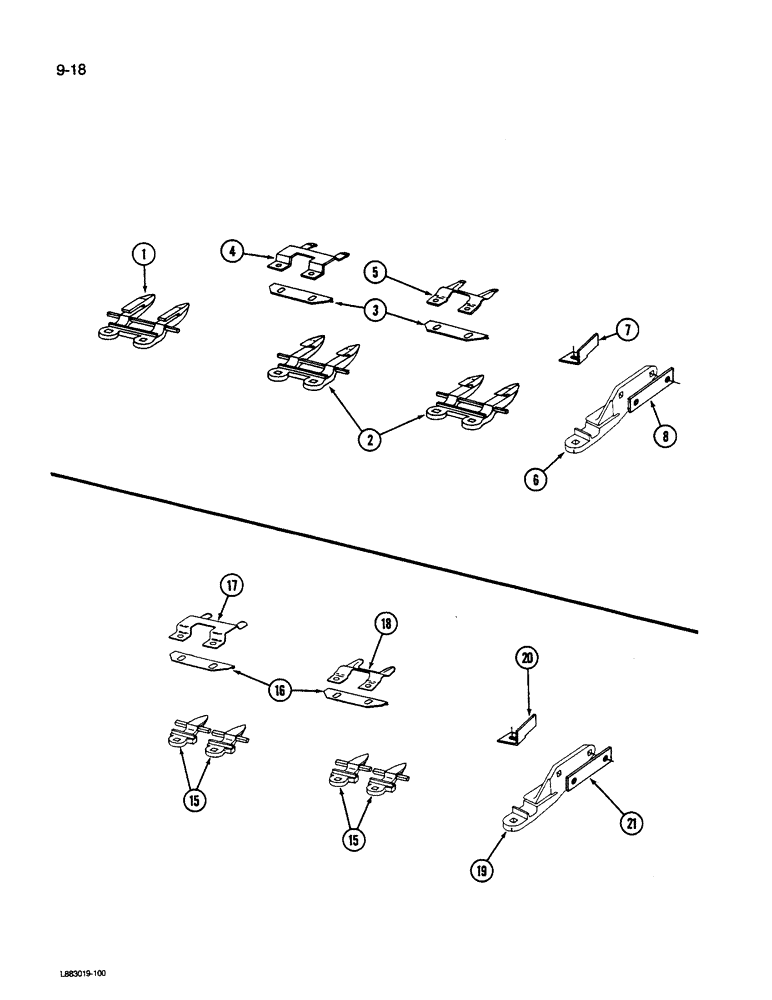

Запчасти Case IH 1190 (9-018) - KNIFE GUARDS, 1190 MOWER CONDITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

483500R3

GUARD

- standard double

2шт.

REF: #1 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

2

58600C1

GUARD ASSY.

GUARD - STRUT (7 foot 1190)

12шт.

2

58600C1

GUARD ASSY.

GUARD - STRUT (9 foot 1190)

16шт.

3

MC468

PLATE ASSY.

PLATE - WEAR (7 foot 1190)

12шт.

3

MC468

PLATE ASSY.

PLATE - WEAR (9 foot 1190)

16шт.

4

58602C1

CLIP

- knife hold-down, strut guard, high arch

1шт.

5

58601C1

CLIP

- knife hold-down, strut guard, low arch (7 foot 1190)

11шт.

5

58601C1

CLIP

- knife hold-down, strut guard, low arch (9 foot 1190)

15шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch

4шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch (7 foot 1190)

25шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch (9 foot 1190)

33шт.

129-104

NUT,7/16"-14, G5

(7 foot 1190) 7/16"-14, G5

29шт.

129-104

NUT,7/16"-14, G5

(9 foot 1190) 7/16"-14, G5

37шт.

1253593C91

PACKAGE

KIT - right divider guard

1шт.

6

1253640C1

GUARD ASSY.

GUARD - right divider

1шт.

7

1253641C1

CLIP

- divider guard

1шт.

8

143799C1

BAR

- divider guard

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.

15

472717R2

GUARD

- STUB (7 foot 1190)

28шт.

15

472717R2

GUARD

- STUB (9 foot 1190)

36шт.

16

MC468

PLATE ASSY.

PLATE- WEAR STUB GUARD (7 foot 1190)

12шт.

16

MC468

PLATE ASSY.

PLATE- WEAR STUB GUARD (9 foot 1190)

16шт.

17

101832C2

CLIP

- knife hold-down, stub guard, high arch STUB GUARD

1шт.

18

101831C2

CLIP

- knife hold-down, stub guard, low arch (7 foot 1190)

11шт.

18

101831C2

CLIP

- knife hold-down, stub guard, low arch (9 foot 1190)

15шт.

1253593C91

PACKAGE

KIT - right divider guard STUB GUARD

1шт.

19

1253640C1

GUARD ASSY.

GUARD - right divider STUB GUARD

1шт.

20

1253641C1

CLIP

- divider guard STUB GUARD

1шт.

21

143799C1

BAR

- divider guard STUB GUARD

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch STUB GUARD

2шт.

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch STUB GUARD

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch STUB GUARD

2шт.
