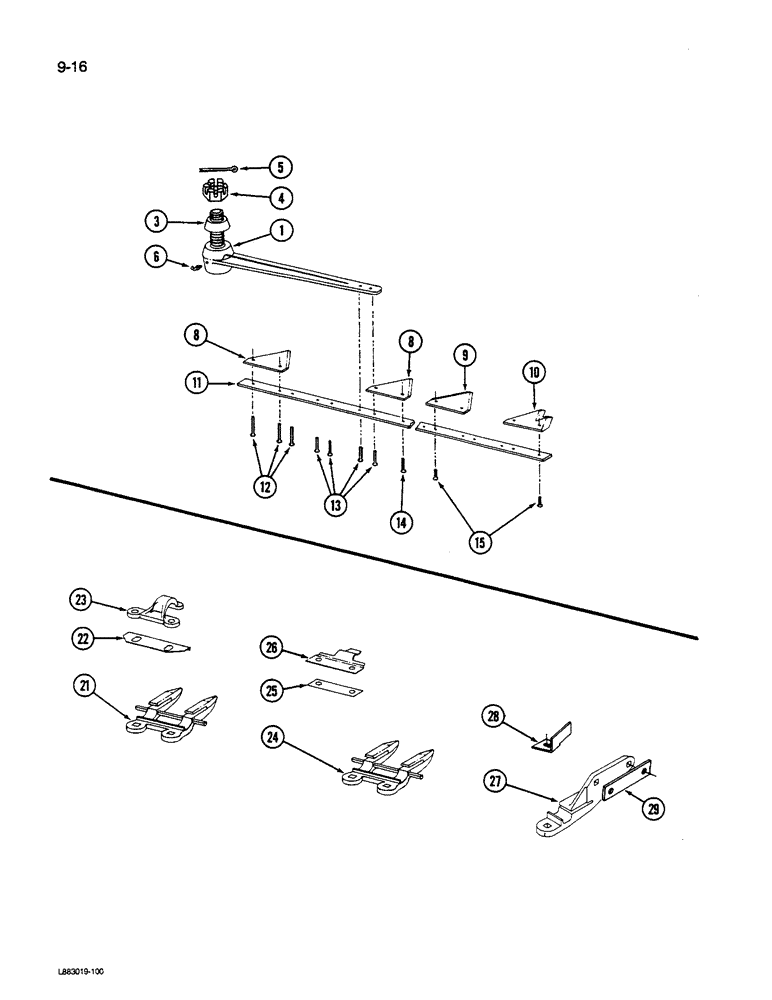

Запчасти Case IH 1190 (9-016) - KNIFE, 1190 MOWER CONDITIONER / KNIFE GUARDS (STANDARD DOUBLE GUARDS) (03) - CHASSIS/MOUNTED EQUIPMENT

1960309C1

KNIFE

ASSEMBLY - 3 inch, with overserrated sections (7 foot 1190), Includes: Ref. 1 - 15

1шт.

1960310C1

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with overserrated sections (9 foot 1190), Includes: Ref. 1 - 15

1шт.

101987C95

KNIFE

ASSEMBLY - 3 inch, with underserrated sections (7 foot 1190), Includes: Ref. 1 - 15

1шт.

101988C95

KNIFE ASSY

KNIFE ASSEMBLY - 3 inch, with underserrated sections (9 foot 1190), Includes: Ref. 1 - 15

1шт.

1

824594C91

END ASSY.

HEAD ASSEMBLY - knife (Replaces 824812C92)

1шт.

3

151926C1

SEAL

SEAL - knife head, Includes: Ref. 3 & 4

1шт.

4

125267

NUT

- hex slotted, 5/8 inch NF

1шт.

5

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

6

16964R91

FITTING

- grease, 90 degree, 1/4 inch NF

1шт.

8

823713C2

KNIFE SECTION

SECTION - knife, 3 inch, overserrated, chrome

4шт.

8

823711C2

KNIFE SECTION

SECTION - knife, 3 inch, underserrated, chrome

4шт.

8

823712C2

KNIFE SECTION

SECTION - knife, 3 inch, smooth, chrome

4шт.

9

596321R3

KNIFE SECTION

SECTION - knife, 3 inch, overserrated, chrome (7 foot 1190)

24шт.

9

596321R3

KNIFE SECTION

SECTION - knife, 3 inch, overserrated, chrome (9 foot 1190)

32шт.

9

457607R2

KNIFE SECTION

SECTION - knife, 3 inch, underserrated, chrome (7 foot 1190)

24шт.

9

457607R2

KNIFE SECTION

SECTION - knife, 3 inch, underserrated, chrome (9 foot 1190)

32шт.

10

148200C1

KNIFE SECTION

SECTION - knife, right end, chrome

1шт.

11

NSS

NOT SOLD SEPARAT

BAR - knife back (Order knife assembly)

1шт.

12

990727R91

RIVET

- button head, 1/4 x 1-1/8 inch (Package of 52)

3шт.

13

990325R91

RIVET

- button head, 1/4 x 1 inch (Package of 54)

4шт.

14

990323R91

PACKAGE

RIVET - button head, 1/4 x 3/4 inch (Package of 66)

1шт.

15

990817R91

RIVET

- button head, 1/2 x 9/16 inch (Package of 130) (7 foot 1190)

50шт.

15

990817R91

RIVET

- button head, 1/2 x 9/16 inch (Package of 130) (9 foot 1190)

66шт.

21

483500R3

GUARD

- knife, standard double

3шт.

REF: #21 - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

22

MC468

PLATE ASSY.

PLATE - wear

1шт.

23

611759R1

KNIFE CLIP

CLIP - knife hold-down, high arch

1шт.

489246R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/4", Gr 8

BOLT - plow, 7/16 NC x 1-3/4 inch

2шт.

REF: #24 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

24

613838R2

GUARD

- standard double, knife type (7 foot 1190)

11шт.

24

613838R2

GUARD

- standard double, knife type (9 foot 1190)

15шт.

25

126628C1

SHIM

- knife hold-down (7 foot 1190)

6шт.

25

126628C1

SHIM

- knife hold-down (9 foot 1190)

8шт.

26

544274R1

CLIP

- knife hold-down, low arch (7 foot 1190)

6шт.

26

544274R1

CLIP

- knife hold-down, low arch (9 foot 1190)

8шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch (7 foot 1190)

14шт.

Q5119

PLOW BOLT

- plow, 7/16 NC x 1-1/4 inch (9 foot 1190)

18шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch (7 foot 1190)

13шт.

M806

PLOW BOLT

BOLT - plow, 7/16 NC x 1-9/16 inch (9 foot 1190)

17шт.

129-104

NUT,7/16"-14, G5

(7 foot 1190) 7/16"-14, G5

29шт.

129-104

NUT,7/16"-14, G5

(9 foot 1190) 7/16"-14, G5

37шт.

1253593C91

PACKAGE

KIT - right divider guard, Includes: Ref. 27 - 29 & hardware listed below

1шт.

27

1253640C1

GUARD ASSY.

GUARD - right divider

1шт.

28

1253641C1

CLIP

- divider guard

1шт.

29

143799C1

BAR

- divider guard

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

893862R1

WASHER

- flat, 15/32 x 1-1/4 x 7/64 inch

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

2шт.
