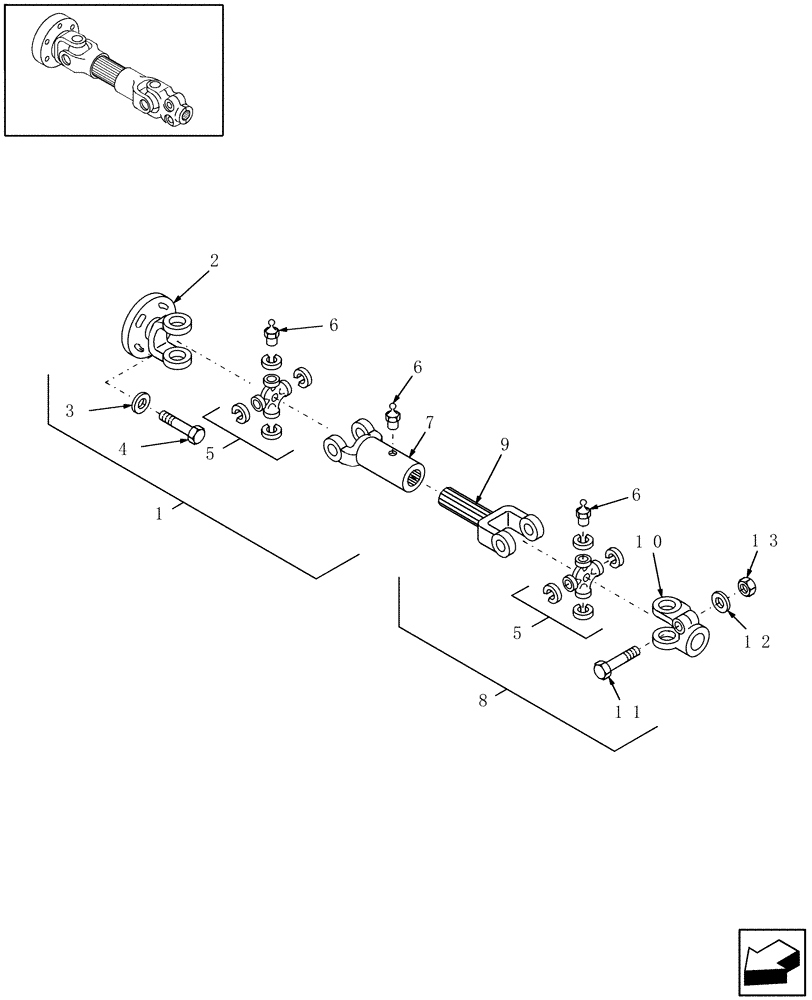

Запчасти Case IH DC162F (15.05) - DRIVE SHAFT COMPONENTS - CONDITIONER (15) - CROP CONDITIONING

1

86561780

SHAFT

& Flange Yoke

1шт.

2

86567069

YOKE

Flanged

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

5шт.

4

86506700

STUD

3/8" x 2-1/8"

1шт.

5

136908

SPIDER

Includes: (6)

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

3шт.

7

86571328

YOKE

Slip

1шт.

8

86561779

SHAFT

Clamp Yoke & Slip Yoke

1шт.

9

86571329

YOKE

& Shaft

1шт.

10

86571327

YOKE

Clamp

1шт.

11

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

12

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

13

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.
